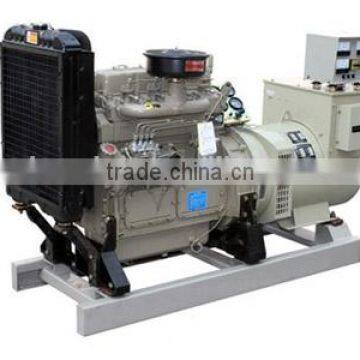

Standby Generator Set
Meet GB/TB2810,ISO9001 and CE
Technical specifications for diesel generator
Electric performance for generator sets
Rated voltage:400/230V or 120/220V
Connection method: 3phase, 4 wires or 1 phase, 3 wires.
Rated Frequency: 50Hz (60Hz is optional)
Rated speed: 1500rpm (1800rpm is optional)
Frequency regulation: Steady state≤0-5%
Transient state:≤±10%
Transient voltage regulation:+20%,-15%
Steady state voltage regulation: ≤±1%
Power Factor: 0.8 lagging
Line voltage wave form distortion: ≤5%
| Genset | Engine modle | Rated | Power | Cylinder No. | Rated Speed | Open Type Dimmension | Open Type Dimmension | Silent Type Dimmension | Silent Type Gross Weight |
| Model | kw | hp | rpm | LXW*H(mm) | kg | L*W*H(mm) | kg | ||
| 8GF | 295D | 13.5 | 18.4 | 2 | 1500 | 1650*700*1100 | 500 | 2100*1120*1650 | 1060 |
| 10GF | 295D | 13.5 | 18.4 | 2 | 1500 | 1650*700*1100 | 550 | 2100*1120*1650 | 1060 |
| 12GF | 2100D | 15 | 20.4 | 2 | 1500 | 1650*700*1100 | 600 | 2100*1120*1650 | 1060 |
| 15GF | 495D | 26.5 | 36.1 | 4 | 1500 | 1850*750*1330 | 780 | 2450*1150*1700 | 1330 |
| 20GF | 495D | 26.5 | 36.1 | 4 | 1500 | 1850*750*1330 | 800 | 2450*1150*1700 | 1330 |
| 24GF | K4100D | 30.1 | 41 | 4 | 1500 | 1850*750*1330 | 800 | 2450*1150*1700 | 1330 |
| 30GF | 495ZD | 36 | 49 | 4 | 1500 | 1900*750*1450 | 900 | 2450*1150*1700 | 1350 |
| 40GF | K4102ZD | 44 | 59.9 | 4 | 1500 | 1900*750*1450 | 900 | 2450*1150*1700 | 1350 |
| 50GF | R4105ZD | 56 | 76.2 | 4 | 1500 | 2000*750*1430 | 950 | 2800*1150*1700 | 1710 |
| 75GF | R6105ZD | 84 | 114.3 | 6 | 1500 | 2500*780*1600 | 1150 | 3300*1280*2000 | 2330 |
| 80GF | R6105AZD | 90 | 122.4 | 6 | 1500 | 2500*780*1600 | 1200 | 3500*1280*2000 | 2460 |
| 90GF | R6105ZLD | 100 | 136.1 | 6 | 1500 | 2500*780*1600 | 1200 | 3500*1280*2000 | 2460 |
| 100GF | R6105AZLD | 110 | 149.7 | 6 | 1500 | 2500*780*1600 | 1200 | 3500*1280*2000 | 2460 |
| 130GF | R6105IZLD | 132 | 179.6 | 6 | 1500 | 2500*780*1600 | 1250 | 3500*1280*2000 | 2770 |
| 150GF | R6113ZLD | 155 | 210.9 | 6 | 1500 | 2700*780*1600 | 1700 | 3900*1400*2100 | 3100 |
| 200GF | R6126ZLD | 230 | 312.9 | 6 | 1500 | 3000*980*1700 | 1700 | 4200*1400*2100 | 3100 |
| 300GF | HT618D | 330 | 449 | 6 | 1500 | 3000*980*1700 | 3100 | 4200*1400*2100 | 3100 |
| 320GF | WD145TAD35 | 353 | 480 | 6 | 1500 | 3200*1240*1750 | 3100 | 5000*1700*2100 | 5500 |
| 350GR | WD269TAD38 | 382 | 520 | 6 | 1500 | 3200*1240*1750 | 3100 | 5000*1700*2100 | 5500 |
| 400GF | WD269TAD43 | 432 | 588 | 6 | 1500 | 3200*1240*1750 | 3100 | 5000*1700*2100 | 5500 |
| 500GF | WD287TAD58 | 588 | 800 | 6 | 1500 | 3200*1240*1750 | 3100 | 5000*1700*2100 | 5500 |

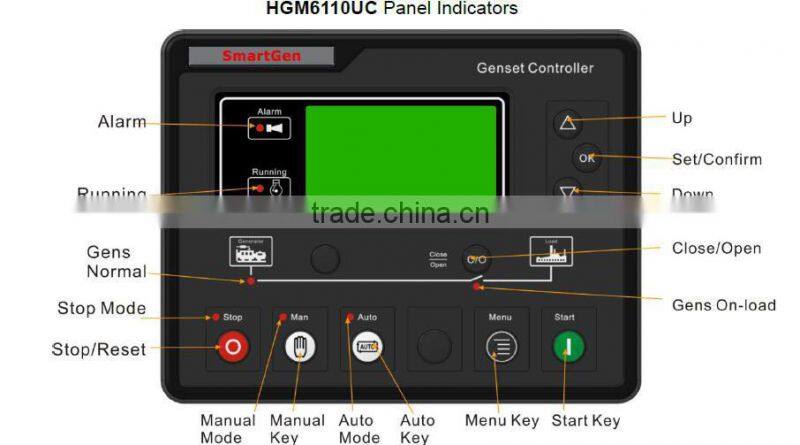

Control
C
Weifang huatian Diesel Engine Co., Ltd, is located in weifang city, of Shandong province.Hundreds of workers , 10 years experience, CE and ISO9001 certificated, less two hour reach Qingdao port. So far ,we already set up more than 20 sole agencies and dealer in the whole world ,such as Australia, Europe, Southeast Asia, East-Asia, Mid-east, America and Africa. Supply the fast and efficient after sales service. that’s how we keep superior quality and global valued customers.
