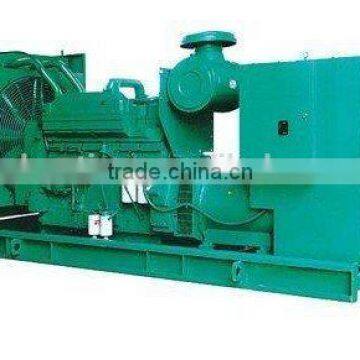

Open Type Diesel Generator 300GF

Open Type Diesel Generator 300GF thumbnail-1
Open Type Diesel Generator 300GF photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Huatian
Model Number:
300GF
Contact Supplier Request Quote Chat Now
Weifang Huatian Diesel Engine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Huatian
Model Number 300GF
Output Type AC Three Phase
Speed 1500/1800rpm
Frequency 50/60hz
Rated Power 300kw
Rated Voltage 400/230V
Rated Current 36A-1440A



Product Description





Power Data
Voltage Prime Power Standby Power Standby/Prime P.F Phase No.
kva kw kva kw Amps
400/230 375 300 412.5 330 594/540 0.8 3
Engine Data
Manufacturer  Ricardo Displacement : 7.52L
Original China  Bore and Stroke  126*155mm



Model


 HT8618D Compression Ratio: 16:01
Air Intake system Turbocharged,,Water Cooling Rated Speed 1500rpm
Fuel System A type fuel Pump Overload Power  330kw
Cylinder Arrangement 6 IN LINE Governor Type: Mechanical
Alternator Data
Manufacture /Type SWT-300 Exciter Type: Brushless, self-exciting
Number of Phase: Three Insulation Class, Temperature Rise H/H
Connecting Type 3 Phase and 4 wire Rotating Field Telephone Influence Factor (TIF) <50
Number of Bearing one THF <2%
Power Factor 0.8 Voltage Regulation, Steady State ≤1.5%
Protection Grade IP23 Alternator Capacity 375KVA
Altitude: ≤1000m Alternator Efficiencies 91%



 Genset Model Rated Power Standby Power

 Rated Current



         (A)

 Rated Voltage



         (V)

 Rated Frequency

         (HZ)

  Connection type

 Fuel Consumption



      (g/KW.h)

  PowerFactor  Alternator
kw kva kw kva
8GF 8 10 8.8 11 14.4 400 50 3-phrase,4-wire 248 0.8 Brushless
10GF 10 12.5 11 13.75 18 400 50 3-phrase,4-wire 248 0.8 Brushless
12GF 12 15 13.2 16.5 21.6 400 50 3-phrase,4-wire 248 0.8 Brushless
15GF 15 18.75 16.5 20.625 27 400 50 3-phrase,4-wire 248 0.8 Brushless
20GF 20 25 22 27.5 36 400 50 3-phrase,4-wire 238 0.8 Brushless
24GF 24 30 26.4 33 43.2 400 50 3-phrase,4-wire 238 0.8 Brushless
30GF 30 37.5 33 41.25 54 400 50 3-phrase,4-wire 238 0.8 Brushless
40GF 40 50 44 55 72 400 50 3-phrase,4-wire 238 0.8 Brushless
50GF 50 62.5 55 68.75 90 400 50 3-phrase,4-wire 230 0.8 Brushless
75GF 75 93.75 82.5 103.125 135 400 50 3-phrase,4-wire 230 0.8 Brushless
80GF 80 100 88 110 144 400 50 3-phrase,4-wire 230 0.8 Brushless
90GF 90 112.5 99 123.75 162 400 50 3-phrase,4-wire 230 0.8 Brushless
100GF 120 150 132 165 216 400 50 3-phrase,4-wire 230 0.8 Brushless
130GF 150 187.5 165 206.25 270 400 50 3-phrase,4-wire 230 0.8 Brushless
150GF 200 250 220 275 360 400 50 3-phrase,4-wire 224 0.8 Brushless
200GF 300 375 330 412.5 540 400 50 3-phrase,4-wire 218 0.8 Brushless
300GF 300 375 330 412.5 540 400 50 3-phrase,4-wire 218 0.8 Brushless
320GF 320 400 352 440 576 400 50 3-phrase,4-wire 218 0.8 Brushless
350GR 350 437.5 385 481.25 630 400 50 3-phrase,4-wire 218 0.8 Brushless
400GF 400 500 440 550 720 400 50 3-phrase,4-wire 218 0.8 Brushless
500GF 500 625 550 687.5 900 400 50 3-phrase,4-wire 218 0.8 Brushless



Land use standard generating set



Standards: Generator sets meets GB/TB2820 general technical specifications for diesel generator set

Electric performance for generator sets,

Rated voltage: 480-110V

Connection method:3 phrase,4 wires or phase 3 wires,

Rated frequency: 50 hz or 60 hz

Rated speed: 1500rpm or 1800rpm

Frequency regulation: steady state≤-5%

Transient state ≤±10

Steady state voltage regulation≤±1%

Power factor:0.8 lagging

Line voltage wave from distortions: ≤5%



OUR ADVANTAGE

1. Professional diesel engine manufacturer, not simply assembler or trader

2. Decades’ years of manufacturing and exporting experience

3. Adopt International quality standards, to meet high quality requirement

4. Good reputation for Reliable quality & Reasonable price

5. Strong technical support

6. Advanced production line with skilled workers



Warehouse







Company Information





Weifang Huatian diesel engine can be widely used as the main power for generator set, fixed power, engineering machinery, agricultural machines and water pump set. All series engines are developed on the basis of original model by optimizing its fuel system, air intake and exhaust system, cooling system and transmitting system, to achieve high performance reliability and economical efficiency. The engines mainly have following features: lower oil consumption, higher reliability, bigger torque, easy starting & maintenance, and better adaptability.
