Centrifugal River Submersible Sewage Water Pump
µµµ DETAILS µµµ
Detailed specification about Centrifugal River Submersible Sewage Water Pump
AQW series submersible water pump absorbs the advantages of the AQW on the basis of similar products at home and abroad advanced technology and features , using the most excellent hydraulic model , special structures and materials , combined with sewage effluent most feature-complete "third generation " of new sewage pump , it s efficiency and performance are superior to similar products at home and abroad .
µµµ CHARACTISTCS µµµ
Main characristics about Centrifugal River Submersible Sewage Water Pump
The pump has a high efficiency energy-saving , non-blocking , anti-winding , long life and other notable features can be installed with an automatic coupling device . And a common type , auto-mixing type , auto-shredding type , auto-mixing chopped-and anti-flushing-type five kinds of models .
According to market needs , the pump is divided into common type ( excluding the ultra-mild leakage protection device ) and full insurance-type two kinds . Full insurance-type submersible sewage pump must supporting the use of dedicated control cabinet to achieve the perfect results .
µµµ FEATURES µµµ
Features about Centrifugal River Submersible Sewage Water Pump
1.Adopting advanced technology, pump has strong ability in pumping sewage, not clog, pass particle size from 30-80mm
2.Automatic stirring device can tear fiber, cut off fiber and then discharge smoothly, no need to add special filter on the pump.
3.Professional design, matching motor with small power, but has remarkable energy saving effect
4.Compact structure, convenient to move, simple to installation, no need to set pump station, which can help to reduce cost
µµµ PARAMETER µµµ
Performance Parameter about Centrifugal River Submersible Sewage Water Pump
Type | Flow(m3/h) | Head(m) | Power(KW) | Speed(r/min) | Efficiency(%) |
40AQW | 8.4--14.4 | 14--16 | 1.5 | 2900 | 41--47 |
50AQW | 7--50.4 | 8--36 | 0.75--7.5 | 1450--2900 | 42--70 |
65AQW | 17.5--44.4 | 11--30.2 | 2.2--4 | 2900 | 46--62 |
80AQW | 20.3--72 | 5.7--27.5 | 2.2-7.5 | 2900 | 39--72 |
100AQW | 35--120 | 5.6--38.5 | 4--15 | 1450 | 51--75 |
150AQW | 49--300 | 5.5--44.5 | 5.5--37 | 1450 | 46--80 |
200AQW | 110--480 | 5.7--44.5 | 11--75 | 1450 | 58--82 |
250AQW | 420--840 | 7--35 | 30--90 | 980--1450 | 63--83 |
300AQW | 280--1140 | 6.7--27 | 45--110 | 980--1450 | 63--84.5 |
350AQW | 700--1800 | 8--40 | 45--160 | 980 | 68--85 |
400AQW | 1050--2640 | 12--33 | 132--160 | 980 | 71--85 |
500AQW | 1400--3000 | 9--22.5 | 110--200 | 980 | 72--85 |
µµµ APPLICTION µµµ
Applications about Centrifugal River Submersible Sewage Water Pump
AQW series submersible water pump using the most excellent hydraulic model, special structures and materials, combined with sewage effluent characteristics and the actual needs of the most developed at home and abroad advanced, most feature-complete "third generation" of new sewage pump, its efficiency and performance are superior to similar products at home and abroad.
AQW series submersible water or sewage pump is mainly used for municipal works, industrial buildings, hotels, hospitals, civil air defence, mines etc. Trades to drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long fabrics.
Primarily for the construction of buildings, residential quarters, public works, road traffic and construction, sewage plants, small sewage treatment plants, hospitals and other occasions, delivery of solid particles and long fibers containing sewage, waste water, rainwater, etc .Or other water delivery.
µµµ CONSTRUCTION µµµ

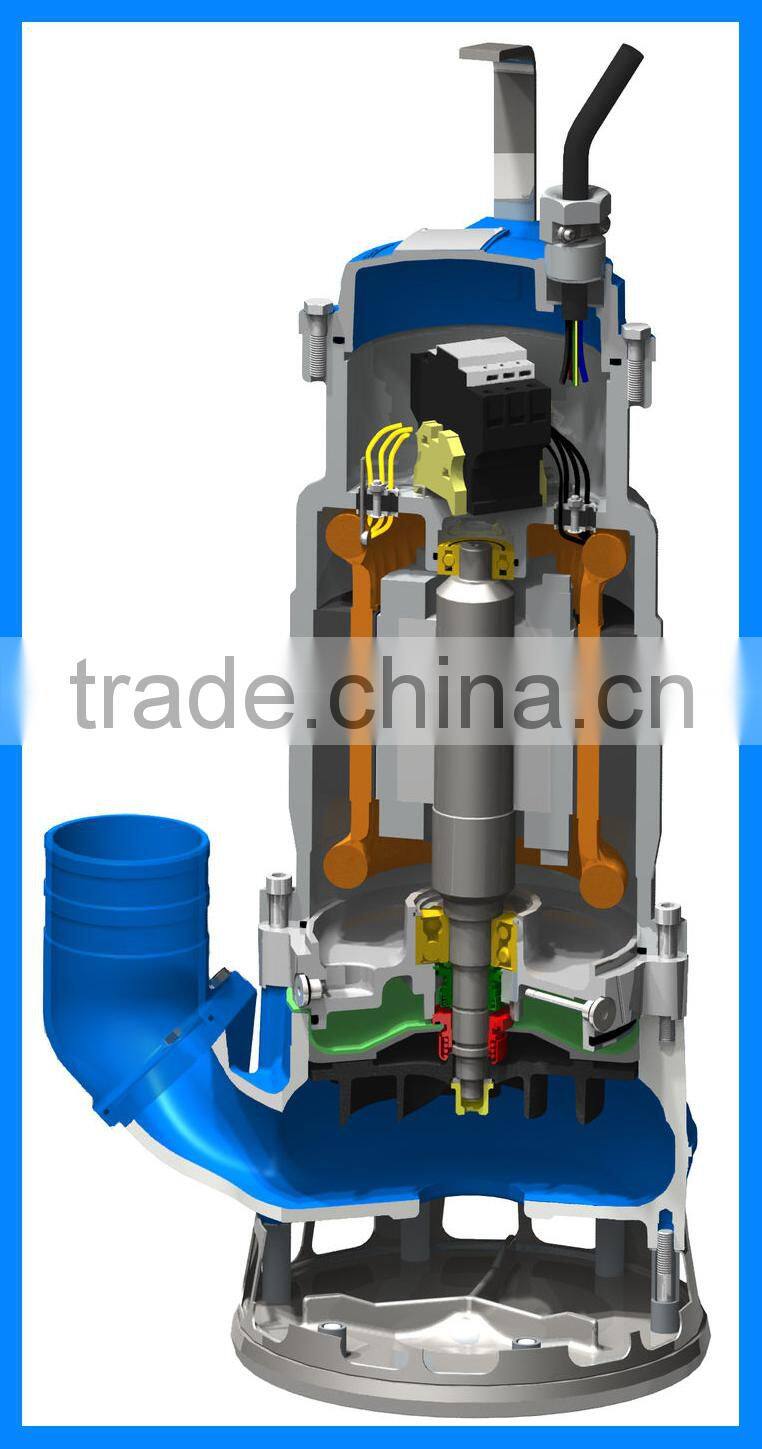

Construction Sectional Drawing about Centrifugal River Submersible Sewage Water Pump
µµµ CURVE CHART µµµ
Performance curve chart for Centrifugal River Submersible Sewage Water Pump
µµµ PACKAGING & SHIPPING µµµ
Pakcaging and shipping about Centrifugal River Submersible Sewage Water Pump
µµµ OUR SERVICES µµµ
Offer Centrifugal River Submersible Sewage Water Pump solution, design, manufacturing, and after-sales service.
Service | Specification |
1. Selection | Send us working data (medium, head, flow rate...) |
2. OEM/ODM | Please show us the pump design drawing |
3. Process design | Offer process design as working condition. |
µµµ OUR COMPANY µµµ
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has our own type selection & design, research and development team, Assure to provide our efficient energy-saving design, use and maintenance solutions for the slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps.
µµµ MAIN PRODUCTS µµµ
Main Products except Centrifugal River Submersible Sewage Water Pump
An Pump Machinery manufactured slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps and other products are exported to over 90 countries around the world. The application covers many fields, such as dressing ship, tailings transportation, mining pumps, steel & power desulphurization, boiler feed water, construction, irrigation, water conservancy facilities, sewage treatment.
µµµ OUR OFFICE µµµ
Our groups for Centrifugal River Submersible Sewage Water Pump
µµµ ENGINEERS µµµ
Engineer Department for Centrifugal River Submersible Sewage Water Pump
Experienced technical personnel is the powerful guarantee for quality products of slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps. An Pump Machinery technical team set up five R & D teams: hydraulic engineering, water pump structure, new materials research and development, casting, molding etc. Except the commonly used CAD and other design software, the technical teams also use CAPP computer-aided industrial design and CFD hydraulic design software. They combine years of experience in the practical application of the products, repeated use of water conservancy GIS, MIS software and simulation analysis system software demonstrated, calculations, the theoretical calculations product of slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps are accurate and consistent with the actual performance. It allowing users to meet the needs while significantly reducing the investment costs, improves An Pump Machinery Company's strong core competitiveness.
An Pump Machinery Company’s slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps and other production line are well-equipped, such as casting furnaces, vertical lathe, cutting tools, boring and milling machining centers production line equipment are fully automatic data control; Precision casting molds and resin-bonded sand, precoated sand casting process, is a powerful pump parts guarantee of quality and appearance; Automatic curve heat treatment furnaces control pump accessories heat treatment process automatically and appropriately; International advanced pump detection equipment for signal acquisition, digital filtering and calibration ensure the accuracy of the data; Spectrograph, liquid analyzers and other testing equipment ensure the reliability and stability of the material; These advanced manufacturing and testing equipment ensure the quality and stability of slurry pump, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps and other products.
µµµ PRODUCE PROCESS µµµ
Produce process about Centrifugal River Submersible Sewage Water Pump
µµµ DEVELOPMENT µµµ
AN PUMP Development about Centrifugal River Submersible Sewage Water Pump
For the research and development of new materials for slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps, An Pump Machinery’s engineers constantly strive to explore casting and set up a new materials R&D team. The products meet API610 standards, in addition to Cr27, high-chromium alloy, SS304, SS316, SS904, CD-4MCu, duplex stainless steel and other wear & corrosion resistant alloys, R-type rubber corrosion resistant heavy flow components, corrosion-resistant high-strength teflon material, high-crystalline silicon ceramic corrosion-resistant materials were gradually developed. This reached advanced level in domestic and international.
In the era of rapid development of science and technology, An Pump Machinery team takes the entrepreneurial spirit "excellence and constant product quality, brand known worldwide", business purpose "the achievements of create brand enterprise and industry pioneer", to help you out and provide quality & cheap innovative products, with corporate philosophy of Kinda technical specialists and sophisticated equipment as backup, and work together with you to create brilliant!

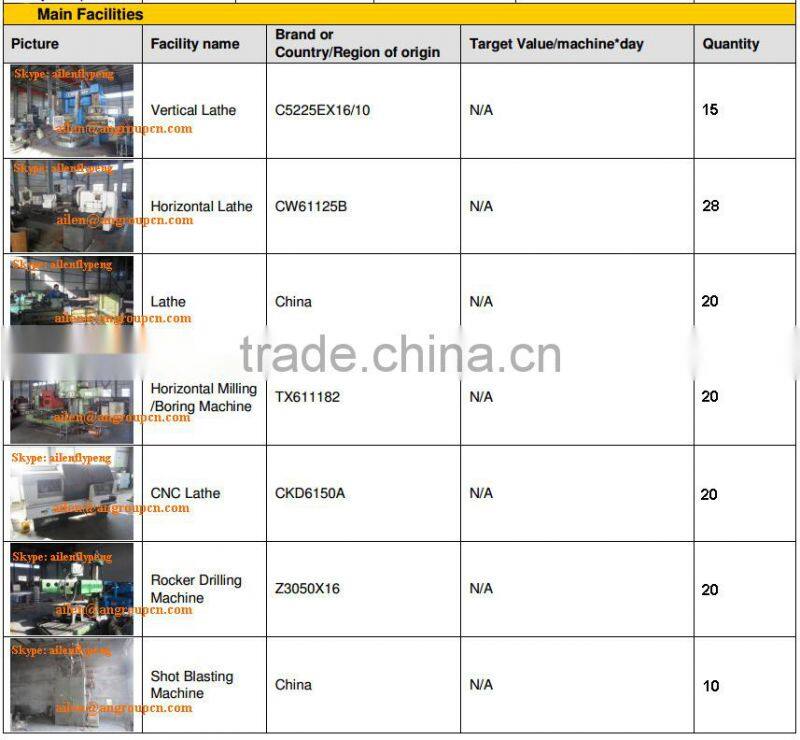

µµµ MANUFACTURING EQUIPMENT µµµ
Manufacturing Equipment:
µµµ COOPERATED CLIENT µµµ
Cooperated Client for Centrifugal River Submersible Sewage Water Pump
Below is part of our customers list, just for refrence:
µµµ OUR HISTORY µµµ
µµµ CONTACT US µµµ
