Home > Products > Submersible Slurry Pump > Non clogging submerged vertical sludge slurry pump
Non clogging submerged vertical sludge slurry pump
- 800 Set / Sets per Month
- Tianjin (Xingang)
- T/T Credit Card
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | An Pump | Model Number: | LBP |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, electric slurry pump |
Pressure: | Other, high pressure vertical slurry pump | Application: | Other, vertical sludge slurry pump |
Product Description
Non clogging submerged vertical sludge slurry pump
Non clogging submerged vertical sludge slurry pump Summarize
Type LBP and LBPR pump are vertical, centrifugal slurry pumps submerged in sump to work. They are designed for delivering abrasive, large particle and high density slurry. These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.
All parts of type LBP pump immersed in liquid are lined with rubber outer liner. They are suited to transport non-edge-edge angle abrasion slurry.
Wet parts of LBP pump are made of abrasive-resistant metal.
The type with ‘L’ is a sump pump of extension shaft series, which is suited for the working condition of deep level. The guide bearing construction is added to the pump on the the bases the standard pump, so the pump is with both more steady operation and wider application range, but flushing water should be attached to the guide bearing.
Non clogging submerged vertical sludge slurry pump Features
1. flow passage components: this type of pump use wear resistant metal, impeller choose wear resistant metal or rubber.
2. Bearing components: we use grease lubrication. According to slag slurry pool liquid height, can choose different lengths of pump shaft or suction pipe.
3. Sealing: Doesn't need any shaft seal or shaft seal water. In suction volume insufficient condition also can work normally below.
Non clogging submerged vertical sludge slurry pump Specification
Type | Material | Capacity (m3/h) | Head (m) | Particle Size Max (mm) | Speed (rpm) | Power Max (kw) | |
Liner | Impeller | ||||||
40 LBP | M | M | 6-50 | 4-29 | 12 | 1000-2200 | 15 |
40 LBP | R | R | 5.8-64.8 | 5-54 | 12 | 1000-2200 | |
65 LBP | M | M | 14-120 | 4-33 | 15 | 700-1500 | 30 |
65 LBP | R | R | 10.8-149 | 5-49.5 | 15 | 700-1500 | |
100 LBP | M | M | 15-330 | 4-37 | 32 | 500-1200 | 75 |
100 LBP | R | R | 25-360 | 6-49 | 40 | 600-1200 | |
150 LBP | M | M | 36-648 | 5-37 | 43 | 500-1000 | 110 |
200 LBP | M | M | 90-828 | 6-41 | 64 | 400-850 | 110 |
250 LBP | M | M | 40-1206 | 7-36 | 64 | 400-750 | 200 |
Note: M=Metal material, R=Rubber material |
Non clogging submerged vertical sludge slurry pump Performance Curve
Non clogging submerged vertical sludge slurry pump structure
Non clogging submerged vertical sludge slurry pump Applications
This series of pumps are electric drainage and irrigation equipment with electric engine. The pumps are widely used for the irrigation and drainage of dirty water in the construction site, coal mines, metallurgical industry, textile factories. This series of pumps can also be used in clean water. Among the pumps of this series the sewage pump with the on-clogging sludge device has a strong drainage capacity.

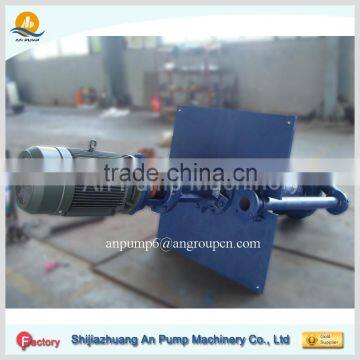

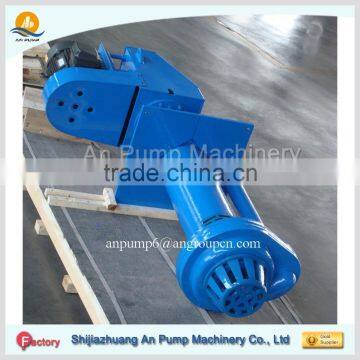

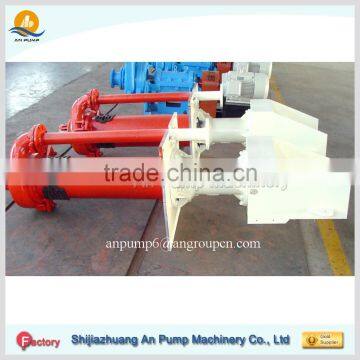

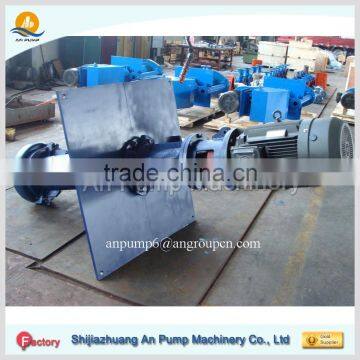

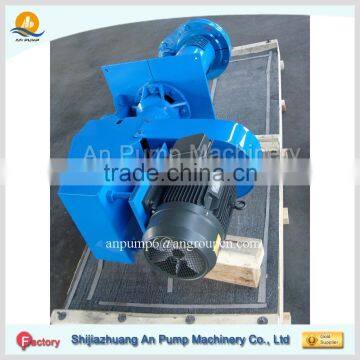

Non clogging submerged vertical sludge slurry pump show
- Standard wooden cases package, if special requirements, should be inform in advance;
- Shipping by sea, by air, by train and truck all available;
- Delivery date: vary from 5-30days according to different model and quantity.
- 1 year guarantee of whole machine set, except the flow parts
- 24hours *7 days service is available
- Calling or door to door service
- User manual and maintenance instruction is available
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An pump machinery company has its own strong type selection & design, research and development team, assure to provide you efficient, energy saving vertical slurry pumps type design, use and maintenance program.
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, SouthEast Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, Canada, France, America, Middle East, Asia and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision
and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
