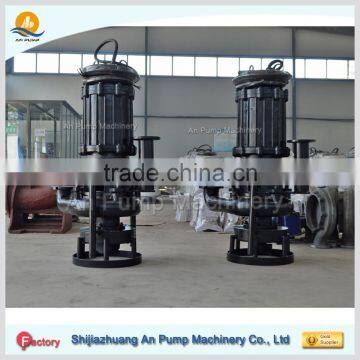

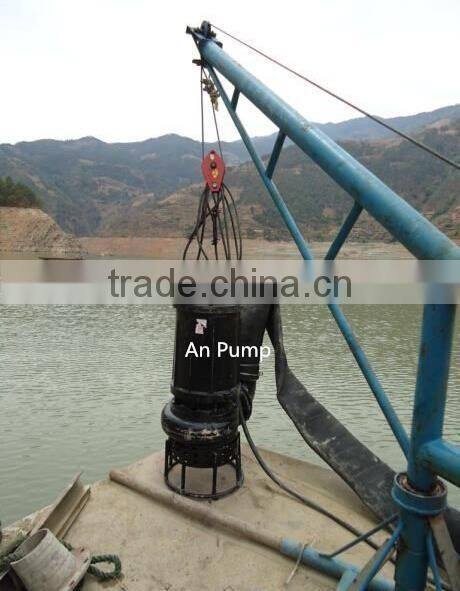

Submersible sand suction dredge pump
Shijiazhuang An Pump Machinery Co., Ltd
The main pump products including slurry pump, desulfurization pump, gravel pump, Submersibl sewage pump, impurity pump, split pump with large capacity, multistage pump with high lift, centrifugal water pump and self priming pump, could meet various requirements of all the customers
Submersible slurry pump performance:
Pump Performance | |||||
Type | Flow (m3/h) | Head (m) | Speed (r/min) | Motor Power (KW) | Efficiency (%) |
40ASW | 8.4-14.4 | 14-16 | 2900 | 1.5 | 42-70 |
50ASW | 7-50.4 | 8-36 | 1450-2900 | 0.75-7.5 | 46-62 |
65ASW | 17.5-44.4 | 11-30.2 | 2900 | 2.2-4 | 39-72 |
80ASW | 20.3-72 | 5.7-27.5 | 2900 | 2.2-7.5 | 51-75 |
100ASW | 35-120 | 5.6-38.5 | 1450 | 4-15 | 46-80 |
150ASW | 49-300 | 5.5-44.5 | 1450 | 5.5-37 | 58-82 |
200ASW | 110-480 | 5.7-44.5 | 1450 | 11-75 | 63-83 |
250ASW | 420-840 | 7-35 | 980-1450 | 30-90 | 63-84.5 |
300ASW | 280-1140 | 6.7-27 | 980-1450 | 45-110 | 68-84.5 |
350ASW | 700-1800 | 8-40 | 980 | 45-160 | 68-85 |
400ASW | 1050-2640 | 12-33 | 980 | 132-160 | 71-85 |
500ASW | 1400-3600 | 9-22.5 | 980 | 110-200 | 72-85 |
Submersible slurry pump introduction:
1.vertical Submersible slurry pump for waste water,slrrires
2.ASW series pump is a kind of submersible sewage motor pump,and the pump and the motor are coaxial.
3.ASW series submersible sewage motor pump mainly used in municipal engineering, industry, hospital,hotel,etc.
4. It is used for pumping sludge , sewage and city life sewage with solids and long fiber (including erosive matters )
5.Our submersible sewage motor pumps have following advantages: hi-efficiency, circumvolution proof,non-block,auto-coupling, hi-reliability and auto-control,etc.
6.The unique cable airproof is adopted, avoiding leakage of cable.
7.Rated Voltage: 380V(660V), Frequency: 50Hz, 3-phase AC. Temperature of medium under 40°C. PH of medium: 4~10. Volume ratio of solid in medium below 2%. .Density of medium should be lower than 1.2*10³kg/m³.
8..Heat protector in stator assures operating life of the motor.
9.Adopt perfect mechanical seal and the sealing material adopt tungsten carbide, silicon carbide and hard metal alloy, so it can prevent the water from entering in the motor, and keep the operating reliable and safety.
Submersible slurry pump structure:
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Our Main Products
Some clients visit our factory
Learn more , please contact us directly.
