Mini Gold sand suction dredge pump submersible dredge sa
QSZ is the special designed sand suction dredge submersible slurry pump
QSZ submersible slurry pump is our factory technical personnel absorbing foreign advanced technology and combined with the actual situation of the majority of users, the design research and development, motor and pump coaxial integrated directly into the medium to work hydraulic machinery, which is speicla desgined for your mini dredge system for the river dredging or your small mineral system!
The QSZ Sand Submersible slurry pump is excellent selection, advanced structure, wide flow channel through ability, metallurgy, chemical, mining, power plants and other enterprise for conveying containing sand, cinder, tailings and other natural particles or liquids, it is the ideal alternative of traditional slurry pump .
The QSZ submersible sand slurry pump add a mixing impeller in the bottom by another except main impeller and can precipitate in the slag jet hit the water and solid particles into the mixing liquid, the pump in the case where no auxiliary means to achieve a transport of high concentration.
Unique sealing device can effectively balance the pressure inside and outside of oil chamber, making mechanical seal both ends of the pressure to maintain a balance, the maximum guarantee reliable operation of the mechanical seal, greatly prolonging its life, the motor according to user requirements increase water testing, overheating and other protection devices that make products for harsh working conditions for long-term safe operation.

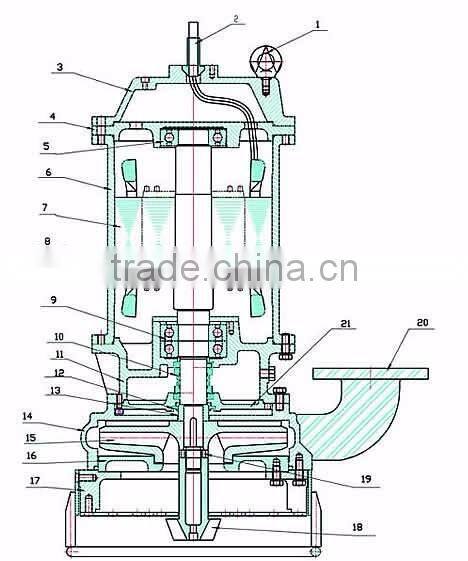

| 1 | Ring | |
| 2 | Electric cable | |
| 3 | Cable outlet cover | |
| 4 | Up cover of motor | |
| 5 | Bearing | |
| 6 | Motor casing | |
| 7 | Stator | |
| 8 | Totor shaft | |
| 9 | Double row bearings | |
| 10 | Mechanical seal | |
| 11 | Oil chamber | |
| 12 | Skeleton seal | |
| 13 | Wear ring | |
| 14 | Casing | |
| 15 | Impeller | |
| 16 | Suction plate | |
| 17 | Base plate | |
| 18 | Agitator | |
| 19 | Impeller nut | |
| 20 | Outlet flange | |
| 21 | Oil chamber cover | |
Specifications of QSZ sand suction dredger submersible slurry pump
| No. | Model | Flow ( m3/h) | Head (m) | Power (KW) | Speed (r/min) | Max Particle size (mm) |
| 1 | QSZ30-30-7.5 | 30 | 30 | 7.5 | 1460 | 7 |
| 2 | QSZ50-26-11 | 50 | 26 | 11 | 1460 | 21 |
| 3 | QSZ100-18-11 | 100 | 18 | 11 | 1460 | 21 |
| 4 | QSZ150-15-15 | 150 | 15 | 15 | 1460 | 21 |
| 5 | QSZ150-22-22 | 150 | 22 | 22 | 980 | 44 |
| 6 | QSZ200-15-22 | 200 | 15 | 22 | 980 | 44 |
| 7 | QSZ240-20-30 | 240 | 20 | 30 | 980 | 25 |
| 8 | QSZ100-35-30 | 100 | 35 | 30 | 980 | 25 |
| 9 | QSZ150-30-30 | 150 | 30 | 30 | 980 | 28 |
| 10 | QSZ300-20-37 | 300 | 20 | 37 | 980 | 28 |
| 11 | QSZ100-50-37 | 100 | 50 | 37 | 980 | 25 |
| 12 | QSZ200-30-45 | 200 | 30 | 45 | 980 | 25 |
| 13 | QSZ150-45-55 | 150 | 45 | 55 | 980 | 21 |
| 14 | QSZ250-35-55 | 250 | 35 | 55 | 980 | 35 |
| 15 | QSZ600-15-55 | 600 | 15 | 55 | 980 | 45 |
| 16 | QSZ350-35-75 | 350 | 35 | 75 | 980 | 28 |
| 17 | QSZ200-55-75 | 200 | 55 | 75 | 980 | 45 |
| 18 | QSZ450-30-90 | 450 | 30 | 90 | 980 | 28 |
| 19 | QSZ480-37-110 | 480 | 37 | 110 | 980 | 31 |
| 20 | QSZ1000-18-110 | 1000 | 18 | 110 | 980 | 45 |
| 21 | QSZ500-50-132 | 500 | 50 | 132 | 980 | 28 |
| 22 | QSZ1000-22-132 | 1000 | 22 | 132 | 980 | 45 |
Sand suction dredger submersible slurry pump cuvre
Package and shipping for submersible sand slurry pump
An Pump Machinery is your Best Submersible Slurry Pump Manufacturer
An Pump Machinery Co. ,Ltd is the sand suction dregde pump manufacturer with 50+ years experienced
Our pumps export to over 90 countries all over the world in mining, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc. click to more...
An Pump Machinery is your ISO certificated sand suction dredge Pump Manufacturer
An Pump Machinery is also CE cerficated Slurry Pump Manufacturer
Your 24x7 manufacturer team and service for Gold sand suction dredge pump submersible dredge sand pump:
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
Contact for Mini Gold sand suction dredge pump submersible dredge sa:
Roger Chen
P: +86 311 899 40549
F: +86 311 862 71170
Office C: +86 150 3285 7866
Personal C: +86 137 805 12387
Wechat /whatsapp: +86 137 805 12387
Skype: chenroger1215
Email: roger at
Email: pump at
(Please put "@" to "at" when you send the email)
