Centrifugal Vertical Sump Solids Trash Sludge Ash Slurry Pump
vertical slurry pump Application
Application for Centrifugal Vertical Sump Solids Trash Sludge Ash Slurry Pump :
Chinese heavy duty vertical slurry pump is mainly used for delivery the slurry which is strong corrosive with fine particles.
This kind of sump pump is widely used to transport slurry with strong corrosion and high concentration for many industries, such as metallurgy, mine, coal, electric power and so on, for example the cracking operations.
| Mining Dewatering Vertical Sump Slurry Pump in Laos The pump work under the sump, but the motor installed in the ground. This is a open pit sand mining.
Model type: BP65 Flow rate: 81m3/h Head: 23m Speed: 1400rpm Efficiency:51% Shaft power: 9.7kw Motor power: 15kw Weight: 500kg Size: 1193x680x2950mm Inlet: 104mm Outle: 65mm |

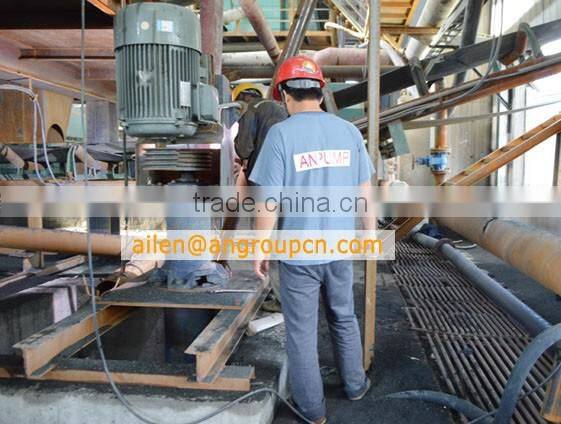

Iron Mining Vertical Sump Slurry Pump In Austraila The pump work for an iron mining. Our engineer also went to the working condition to helpl installation.
Model type: BP150 Flow rate: 421m3/h Head: 15m Speed: 7300rpm Efficiency:53% Shaft power: 31.4kw Motor power: 45kw Weight: 1850kg Size: 1870x1100x3986mm Outle: 150mm | |
vertical slurry pump Overview
General Overview for Centrifugal Vertical Sump Solids Trash Sludge Ash Slurry Pump

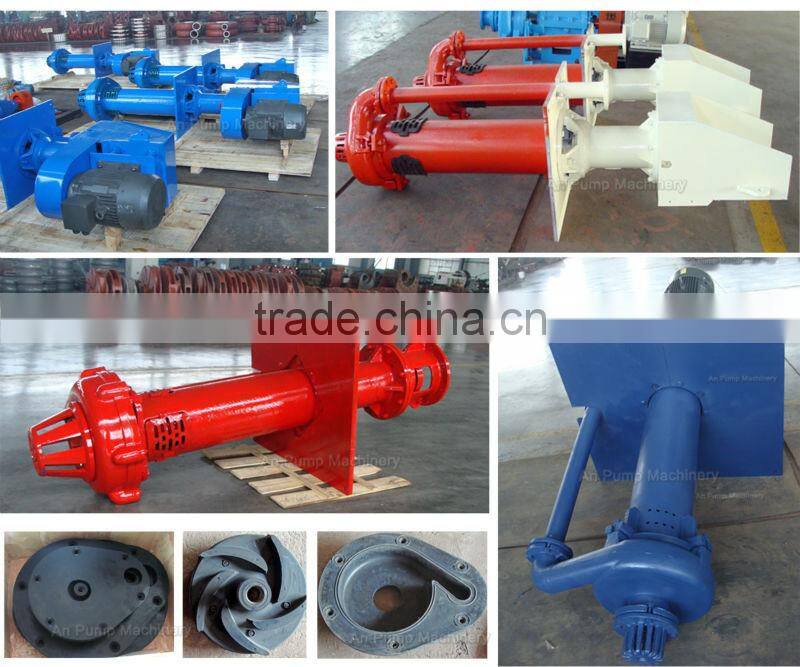

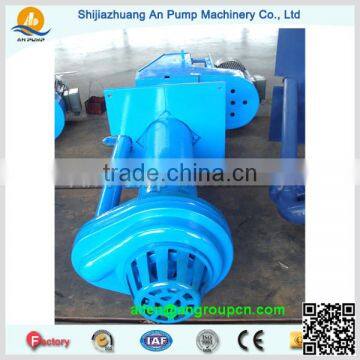

Submersible mineral Submersible mineral vertical slurry pump, vertical sump slurry pump is cantilevered vertical slurry pump with rubber liners, impeller and other wet end parts.
Heavy duty cantilevered vertical slurry pump is designed for applications requiring vertical sump duties.
Fully elastomer lined or hard metal fitted.
The sump pump do not have packing.
Optional recessed impeller and suction agitator available.
This is the vertical instructure vertical slurry pump, but same thoery with the horizontal pump.
Performance Data
Performance Data sheet for Centrifugal Vertical Sump Solids Trash Sludge Ash Slurry Pump
| Item | Data |
| Capacity(Flow rate) (Q) | 17~1267m3/h 4.7~352L/S |
| Head (H) | 4~40m |
| Speed | 350~2200rpm |
| Max Passed Particle Size | 65mm |
| Slurry Density | 60% |
| Slurry PH Rate: | 2~11 |
Performance Curve Chart
Performance curve chart for Centrifugal Vertical Sump Solids Trash Sludge Ash Slurry Pump
Operating performance curve chart can help the end user know much about all of the models of Submersible mineral vertical slurry pump vertical sump slurry pump
vertical slurry pump Materials
Wet end parts material list for Centrifugal Vertical Sump Solids Trash Sludge Ash Slurry Pump
Metal material | Rubber Material | ||
Item | Code | Item | Code |
Chrome alloy | Cr | Natural rubber | Ru |
Cast iron | - | Synthetic rubber
| Ternary ethylene, Nitrile rubber, Neoprene rubber, Butyl rubber |
Grey iron | HT | ||
Ductile cast iron | QT | ||
Stainless Steel | SS304, SS306, SS316L | ||
Duplex stainless steel | CD-4MCu | ||
Bronze | - | ||

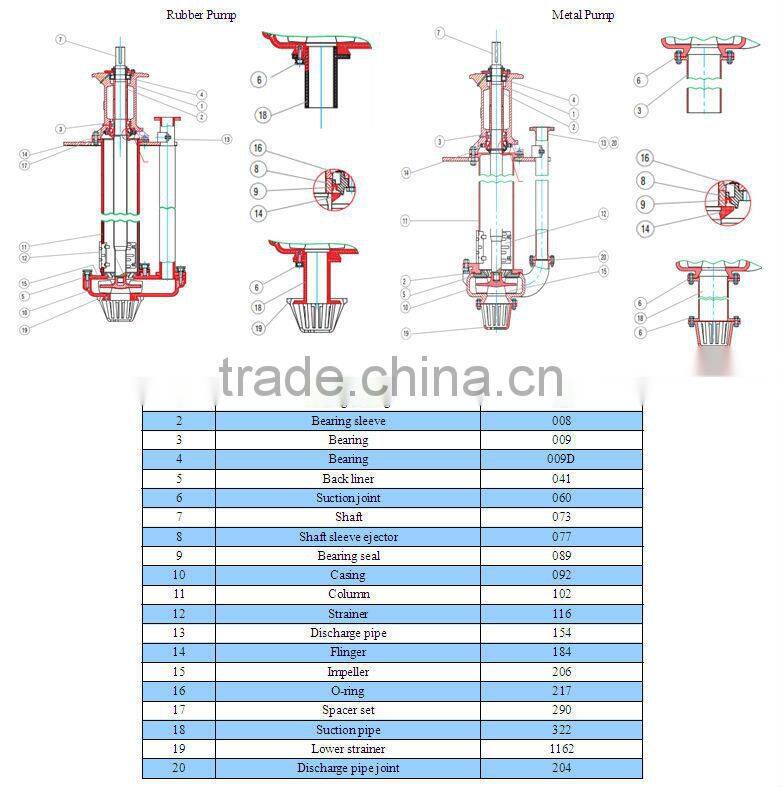

vertical slurry pump Construction

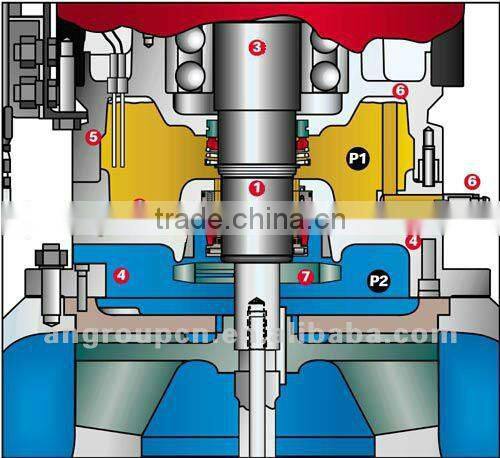

Construction of Centrifugal Vertical Sump Solids Trash Sludge Ash Slurry Pump
Features
Key points of Centrifugal Vertical Sump Solids Trash Sludge Ash Slurry Pump
Sump pump do not need any Shaft seal and Shaft seal water,it is still workable without enough water.
Company
Shijiazhuang An Pump Machinery is the top manufacturer of the Centrifugal Vertical Sump Solids Trash Sludge Ash Slurry Pump in China.
1. Offer Centrifugal Vertical Sump Solids Trash Sludge Ash Slurry Pump solution design as working condition
2. Offer Installation & ajustment in working condition,
3. Accept OEM
4. Select centrifugal vertical slurry pump & related equipement,
5. Sample available.
Slurry pump services details:
Service | Specification |
1. Slurry pump selection | Send us the vertical slurry pump basic data (medium, head, flow rate...) |
2. OEM/ODM | Please show us the slurry pump drawing |
3. Process design | Offer process design as slurry pump working condition. |

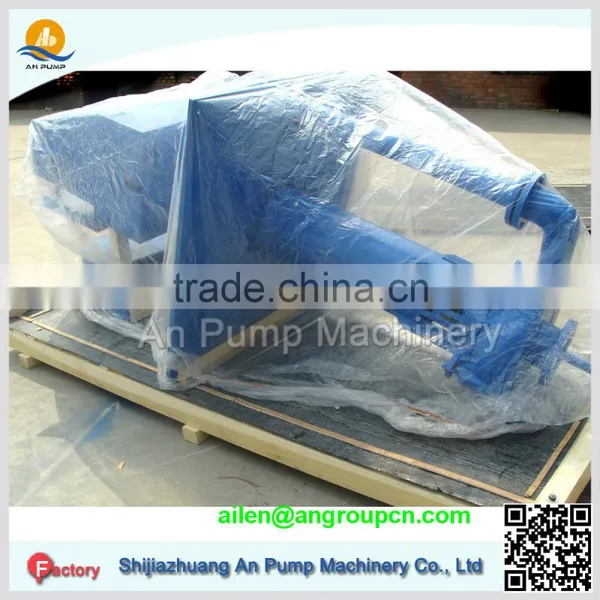

vertical slurry pump packaging
Furmigated wooden case packaging for Centrifugal Vertical Sump Solids Trash Sludge Ash Slurry Pump
Shipping
Centrifugal Vertical Sump Solids Trash Sludge Ash Slurry Pump shipping can arrange by sea, air or express.

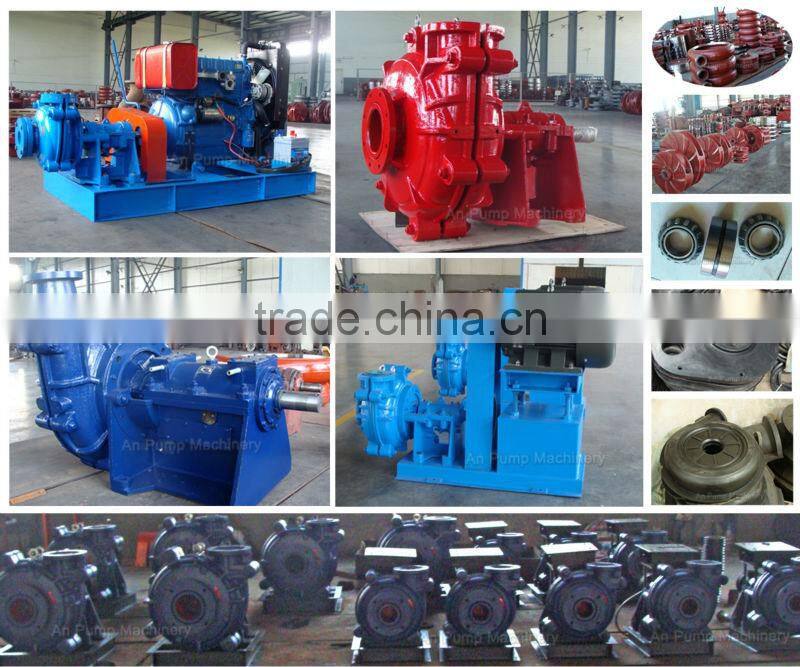

1. Other suggested products except Submersible Mineral Slurry Pump Vertical Sump Slurry Pump ?
| Sand gravel pump | Horizontal slurry pump | Submersible slurry pump |
| | |
2. How to get your price about the vertical slurry pump?
First, we must to make sure the model according your working condition, then the materials, shaft seal, painting and package specific need.
3. Is it avaliable to print our clients brand?
Totally accept as international rules.
4. How to connect you directly for the vertical slurry pump solutions?
Leave message below.
