Centrifugal horizontal slag handling pump coal wash slurry pump
General
AM/AMR series is horizontal, cantilevered centrifugal slurry pump, with reasonable construction, reliable operation, long service life. It is widely used in transporting abrasive or / and corrosive slurry in mining, metallurgy, electric power, coal, chemicals, building, etc. Especially well accepted by coal / chrome washing plant, mineral processing plant, power plant etc.
Design Features
• Bearing assembly – A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
• Liners – Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.
• Casing – Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
• Impeller – Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are completely interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
• Throat bush – Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
• One-piece frame – A very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for
easy adjustment of impeller clearance.
AM/AMR Centrifugal Slurry Pump Structure
Metal liner | Rubber liner | ||
1 | Volute liner | 1 | Frame plate |
2 | Frame plate | 2 | Expeller ring |
3 | Frame plate liner insert | 3 | Gland assembly |
4 | Cover plate | 4 | Shaft sleeve |
5 | Throat bush | 5 | Expeller |
6 | Impeller | 6 | Frame plate liner |
7 | Expeller ring | 7 | Impeller |
8 | Shaft sleeve | 8 | Cover plate liner |
9 | Expeller | 9 | Cover plate |
10 | Bearing assembly | Note: Slurry pumps have Throat Bush from 4" | |
AM,AMR Centrifugal Slurry Pump Performance Data
Model | Max Power (kw) | Material | Clear water performance | |||
Liner | Impeller | Capacity Q (m3/h) | Head H ( m) | Speed n (rpm) | ||
1.5/1B-AM | 15 | M | M | 12.6~28.8 | 6~68 | 1200~3800 |
RU | RU | 10.8~25.2 | 7~52 | 1400~3400 | ||
1.5/1B-AMH | 30 | M | M | 16.2~34.2 | 25~92 | 1400~2200 |
2/1.5B-AM | 15 | M | M | 32.4~72 | 6~58 | 1200~3200 |
RU | RU | 25.2~54 | 5.5~41 | 1000~2600 | ||
3/2C-AM | 30 | M | M | 39.6~86.4 | 12~64 | 1300~2700 |
RU | RU | 36~75.6 | 13~39 | 1300~2100 | ||
4/3C-AM | 30 | M | M | 86.4~198 | 9~52 | 1000~2200 |
4/3D-AM | 60 | |||||
4/3C-AM | 30 | RU | RU | 79.2~180 | 5~34.5 | 800~1800 |
4/3D-AM | 60 | |||||
4/3E-AMH | 120 | M | M | 126~252 | 12~97 | 600~1400 |
6/4D-AM | 60 | M | M | 162~360 | 12~56 | 800~1550 |
6/4E-AM | 120 | |||||
6/4D-AM | 60 | RU | RU | 144~324 | 12~45 | 800~1350 |
6/4E-AM | 120 | |||||
6/4F-AMH | 260 | M | M | 100~414 | 34~98 | 600~1000 |
8/6E-AM | 120 | M | M | 360~828 | 10~61 | 500~1140 |
8/6E-AM | 120 | RU | RU | 324~720 | 7~49 | 400~1000 |
10/8ST-AM | 560 | M | M | 612~1368 | 11~61 | 400~850 |
RU | RU | 540~1188 | 12~50 | 400~750 | ||
10/8E-MM | 120 | M | M | 666~1440 | 14~60 | 600~1100 |
10/8E-MM | 120 | RU | RU | 540~1188 | 10~42 | 500~900 |
12/10ST-AM | 560 | M | M | 936~1980 | 7~68 | 300~800 |
M | M | 720~1620 | 7~45 | 300~650 | ||
14/12ST-AM | 560 | M | M | 1260~2772 | 13~63 | 300~600 |
RU | RU | 1152~2520 | 13~44 | 300~500 | ||
16/14ST-AM | 560 | M | M | 1368~3060 | 11~63 | 250~550 |
16/14TU-AM | 1200 | |||||
18/16ST-AM | 560 | M | M | 2160~5040 | 8~66 | 200~500 |
18/16TU-AM | 1200 | |||||
20/18TU-AM | 1200 | M | M | 2520~5400 | 13~57 | 200~400 |
AM, AMR Centrifugal Slurry Pump Performance Curve
Centrifugal Slurry Pump Applications
Chemical Process
Heavy Minerals
Paper and Pulp
Mill Discharge
Sugar Beet
Slag Granulation
Bottom Boiler and Fly Ash
Cyclone Feed
Power Utilities

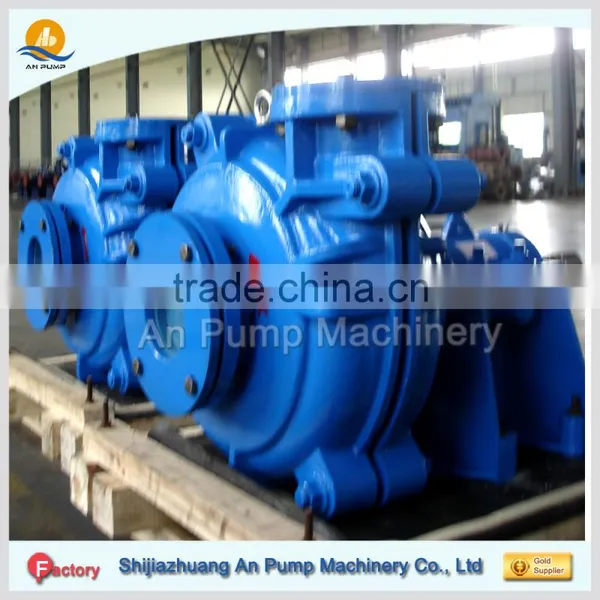

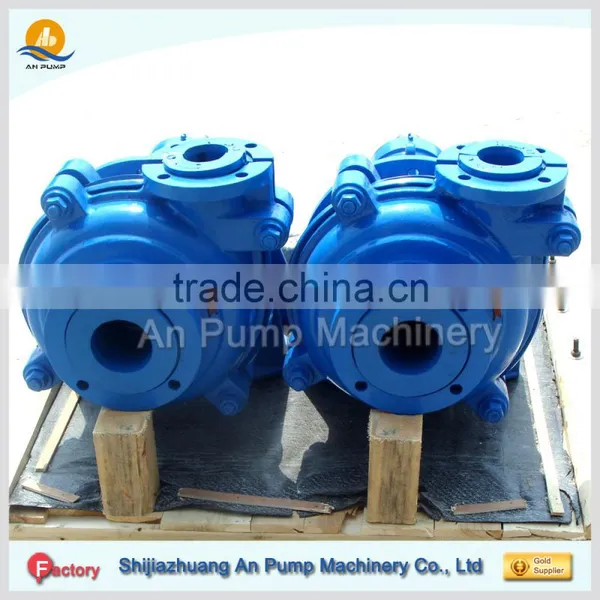

AM, AMR Centrifugal Slurry Pump Package and Shipping Term
An Pump Machinery is your Best Centrifugal Slurry Pump Manufacturer
An Pump Machinery Co. ,Ltd is the centrifugal Slurry pump manufacturer with 50+ years experienced
Our pumps export to over 90 countries all over the world in mining, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc. click to more...
An Pump Machinery is your ISO certificated Pump Manufacturer
An Pump Machinery is also CE cerficated and ISO certificated Pump Manufacturer
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
Welcome contact me, we will offer high quality pumps with best price, help you business sucessful.
