Hebei Mining solid centrifugal slurry pump price list
- 8000 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | An Pump | Model Number: | AM useful high chrome slurry pump |
Theory: | Other, Centrifugal Slurry Pump for sale | Structure: | Other, Single Stage End Suction Impeller Slurry Pump | Usage: | Other, Mining solid centrifugal slurry pump price list |
Power: | Other, High Effluent Electric Slurry Pump Available, 15 to 1200 kw for the slurry Pump frame support | Standard or Nonstandard: | Other, Standard Slurry Pump Parts Stocking | Fuel: | Other, Diesel engine driven Slurry Pump Available |
Pressure: | Other, High Pressure Slurry Pump | Application: | Other, Ash, Gravel, Sand, mud, sludge, mining slurry pump, dewatering pump |
Product Description
An Pump Machinery is the only
Hebhei Mining solid centrifugal slurry pump price list
is avaiable for the agent and wholesales
The AM type of Mining solid centrifugal slurry pump the single Stage, cantilever design split case industrial pump.
The AM heavy type of Mining solid centrifugal slurry pump is the heavy duty pump handling tough and abrasive duties major used at mining and mineral departments! It is the pump transporting Solid-liquid mixture with solid suspending (like ore, sand, gravel, ash and slime etc.) or the abrasive strongly and high concentration slurry.
An Pump Machinery is your Best Mining Solid Centrfugal Slurry Pump Manufacturer
An Pump Machinery Co. ,Ltd is the slurry pump manufacturer with 50+ years experienced
Our pumps export to over 90 countries all over the world in mining, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc. click to more...
An Pump Machinery is your ISO certificated slurry Pump Manufacturer
An Pump Machinery is also CE Mining Pump Manufacturer
Specification Mining slurry pump
Single Stage Horizontal Centrifugal Sand And Gravel Pump
Size (discharge): 1" to 18" (25 mm - 450 mm)
Capacity: to 3400 m3/hr
Head: to 120 m
Particle Size: to 260 mm
Concentration: to 60%
Material: metal and rubber material
Mining slurry pump performance parameters
Type | Flow(m3/h) | Head(m) | Frame type | Max power | Efficiency(%) | Material | Max Particle Size |
AMB1.5×1 Slurry pump | 3--40 | 5--68 | B | 15 | 20--40 | High Cr Alloy/Rubber | 14 |
AMB2×1.5 Slurry pump | 7--87 | 8--63 | B | 19 | 20--45 | High Cr Alloy/Rubber | 19 |
AMC3×2 Slurry pump | 21--139 | 10--64 | C | 30 | 30--58 | High Cr Alloy/Rubber | 25 |
AMC4×3 Slurry pump | 14--201 | 7--53 | C | 30 | 30--71 | High Cr Alloy/Rubber | 28 |
AMD4×3 Slurry pump | 14--201 | 7--53 | D | 60 | 30--71 | High Cr Alloy/Rubber | 28 |
AMD6×4 Slurry pump | 25--504 | 11--62 | D | 60 | 30--68 | High Cr Alloy/Rubber | 44 |
AME6×4 Slurry pump | 25--504 | 11--62 | E | 120 | 30--68 | High Cr Alloy/Rubber | 44 |
AMF8×6 Slurry pump | 43--900 | 8--53 | F | 120 | 20--72 | High Cr Alloy/Rubber | 63 |
AMST10×8 Slurry pump | 220--1800 | 9--65 | ST | 560 | 21--71 | High Cr Alloy/Rubber | 76 |
AMST12×10 Slurry pump | 35--2088 | 7--67 | ST | 560 | 20--80 | High Cr Alloy | 86 |
AMST14×12 Slurry pump | 40--3564 | 11--65 | ST | 560 | 40--75 | High Cr Alloy | 90 |
AMTU16×14 Slurry pump | 324--4700 | 10--65 | TU | 1200 | 50--82 | High Cr Alloy | 135 |
AMTU20×18 Slurry pump | 570--6700 | 11--59 | TU | 1200 | 40--85 | High Cr Alloy | 135 |
Mining slurry pump Features
1. Long bearing life: The bearing assembly is with large diameter shaft and short overhang |
2. Wear resistant and anti-abrasion wet parts: A05, A07, A33, A49 and rubber etc. They are completely interchangeable with each other |
3. Easily replaceable liners: Liners are bolted to the casing |
4. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing |
5. Discharge direction can be positioned at intervals of 45 degrees |
6. Simple maintenance throat-bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple. |

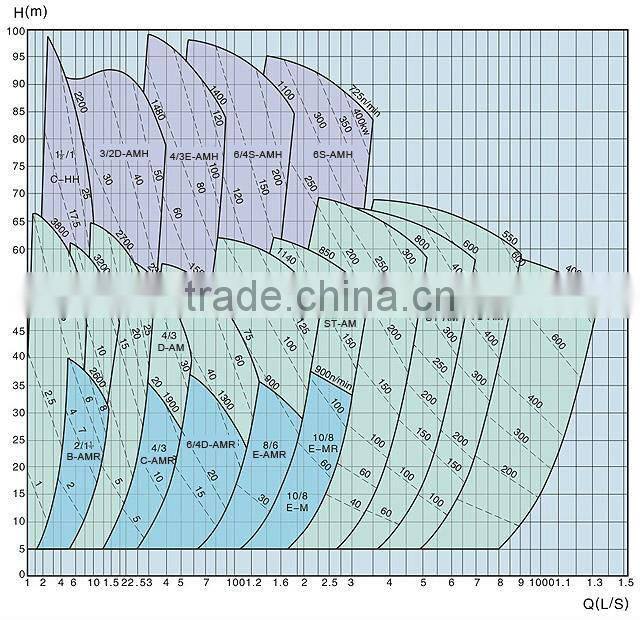

Mining slurry pump performance chart
Mining Solid Centrifugal slurry pump Applications
1. Metallurgical ore-dressing plant slurry transportation |
2. Thermal power plant ash removal |
3. Coal washery coal slurry and heavy medium transportation |
4. Pumping sand in seawater , river dredging |
5. Chemical industry can be delivered some of the corrosive slurry containing crystals |

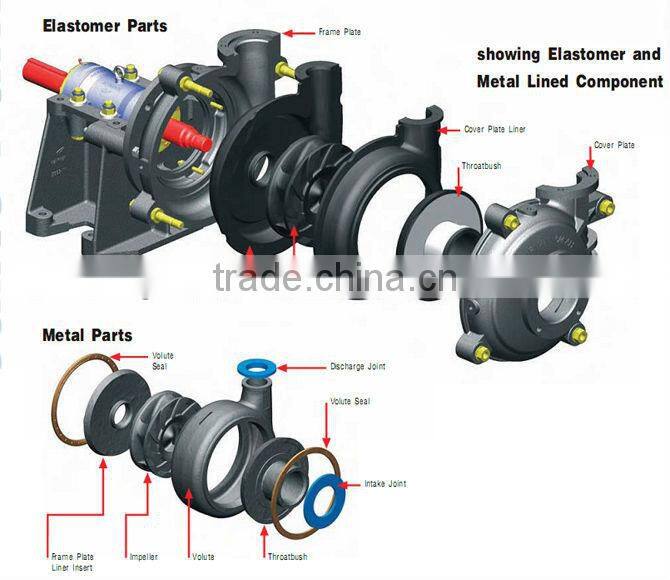

Mining Solid Centrifugal slurry pump spare parts show
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
Mining solid centrifugal slurry pump is avaiable for the agent and wholesales
24x7 service for your Mining Solid Centrifugal Slurry Pump:
Roger Chen
P: +86 311 899 40549
F: +86 311 862 71170
Office C: +86 150 3285 7866
Personal C: +86 137 805 12387
Wechat /whatsapp: +86 137 805 12387
Skype: chenroger1215
Email: roger at
Email: pump at
(Please put "@" to "at" when you send the email)
1. Q: Are you the Slurry Pump Manufacturer ?
A: Yes, An Pump Machinery is one Slurry Pump Manufacturer nearly 50 years!
Click to see the video about our factory!
Click to see the pictures of the factory!
An Pump Machinery is your best centrifugal Slurry Pump Manufacturer
2. Q: Is there any discount to buy your Slurry Pump or Slurry Pump Parts ?
A: Yes, as one of the best Pump Manufacturer , we have different promption plan for different customer :
(1) You could click to contact Roger Chen, who is the sales driector of An Pump Machinery to sign up as the VIP, he will explain the details to you 24x7 !
(2) You could copy roger @ (note: there is space both front and back of the @, you should remove it away to send the email).
(3) Call at +86 137 805 12387 or use your wechat, or whatsapp to search this no. to add us. You could also add chenroger1215 if you use skype.
There are speical discount for samll slurry pump and slurry pump rubber parts !
3. Q: Is there any Slurry Pump Price list ?
A: Yes, The new 2016 Slurry Pump Price list is avaiable for our approved agent. Pls contact pump @ for more!
1. Q: Are you a trading company or manufacture?
A: An Pump Machinery Co., Ltd is a real large professional manufacturer more than 32 years, in China, produce with our own factory.
2. Q: what's your factory workshops ?
A: My factory produce include casting, mechanical process, lathe process, heat treatment, assembly, and test etc.
Warmly welcome to visit & test my factory any time.
3. Q: How about your QI series centrifugal end scution pump price?
A: We are sure our price is factory price, and insist hig quality for our long term cooperation.
4. Q: What is your QI series end suction pump material ?
A: For the QI end suction pump, we could produce cast iron, cast steel, stainless steel, bronze, and material high CrMoNi alloy.
And we could also produce as your requirements.
5.Q: What kind of liquid can your QI series centrifugal end suction pump transfer?
A: Liquid range: water, chemical liquid, hot water, sewage etc.
6. Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.
Our factory has 15~30 QC.
7. Q: Is it easy for customers to change the parts by myselves ?
A: yes, the structure is simple ,customers can change it very easliy. We will also supply you maintenance tools for free.
8. Q: How about your gravel pump warranty?
A: 1 year warranty for commplete setpump, 6-8 months for wet parts, it depends on other pump working condition details.
9. Q: How to do if the pump or parts have operatation problem within your warranty?
A: Tell me details timely, and show me pictures, we will send you pump solution at once without any hesistation.
10. Q: Can you install the electric motor or diesel engine with the pump for us ?
A: yes, we can, it's no problem, we are experienced in this .
11: Q: .we don't know which pump model we need ,can you help us ?
A: yes, please tell me your detail requirements, include liquid, flow rate, head etc,
my engineers team wiill calculate & select most suitable pump model for you, offer pump solution for you.
12. Q:How long can you reply us if we send an inquiry ?
A: Generall with in 2 hours, we will send you official quotation sheet, with price, technology data, performance curve, dimension etc.
13. Q: What are your advantages,why should I choose you?
A: Higher Quality, our parts have 30% longer life than the originals
Short Delivery Time, for normal parts,we have stock in our warehouse
Competitive Price, we can help you cut down the cost by 30% or more
Best Services, we have technical department, quality control department and a professional sales team, we will offer professional service for you any time.
