Centrifugal pump for corrosive acid slurry pump
- 6000 Set / Sets per Month
- Tianjin/Shanghai/Guangzhou/Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | An Pump | Model Number: | AM,AMH,AZ |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electric or diesel |
Pressure: | High Pressure | Application: | Other, Mining/Coal/Power plant/chemical/oil/Ash Handling/Sand Excavation |
Product Description
Centrifugal pump for corrosive acid slurry pump
Shijiazhuang An Pump Machinery Co., Ltd,the main pump products including slurry pump,
desulfurization pump, gravel pump, sewage pump, impurity pump, split pump with large capacity, multistage pump
with hjgh lift, centrifugal water pump and self priming pump, could meet various requirements of all the customers.
AM centrifugal slurry pump are mainly used to pump high-hardness, strong-corrosion and high-concentration
liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud,
mineral stones and etc.
Detailed specification:
1. Horizontal, cantilevered, centrifugal, single stage slurry pump
2.Long bearing life: The bearing assembly is with large diameter shaft and short overhang.
3. Wear resistant and anti abrasion wet parts: High chrome alloy and rubber etc. They are completely interchangeable with each other
4. Easily replaceable liners: Liners are bolted to the casing.
5. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.
6 Discharge direction can be positioned at intervals of 45 degrees
7. Simple maintenance throat bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple.
8. Sealing type: pcking seal,impeller sealing and mechanical seal.
9. Widely application: They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.
Performance and main Technical Dates of Centrifugal Slurry Pump
Centrifugal Slurry pump performance parameters

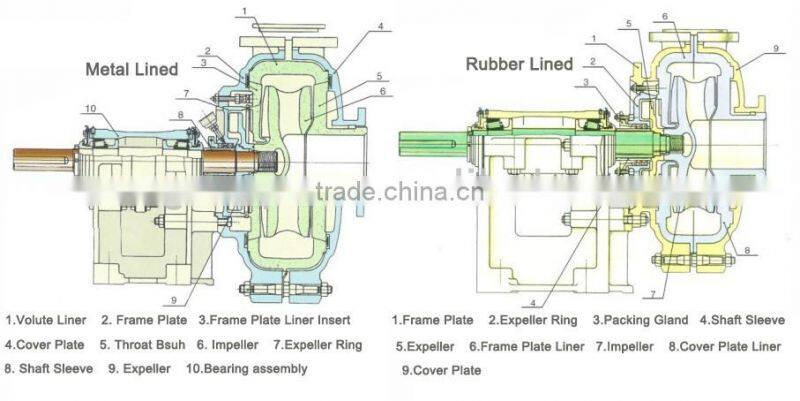

AM Centrifugal Slurry Pump Structural Drawing
Liners | Wide variety of metallurgic and elastomeric options (metal and elastomer interchangeable); |
Impeller | Hard metal and molded elastomer impellers are completely interchangeable. Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. |
Casing | Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety. |
Shaft | With large shaft diameters, heavy duty bearing assemblies and robust slurry pumping capacity, AN PUMP slurry pumps provide a cost-effective and ideal alternative to longer lead times and engineering services that are often costly or not available elsewhere. |

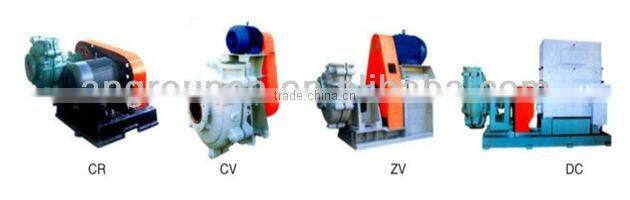

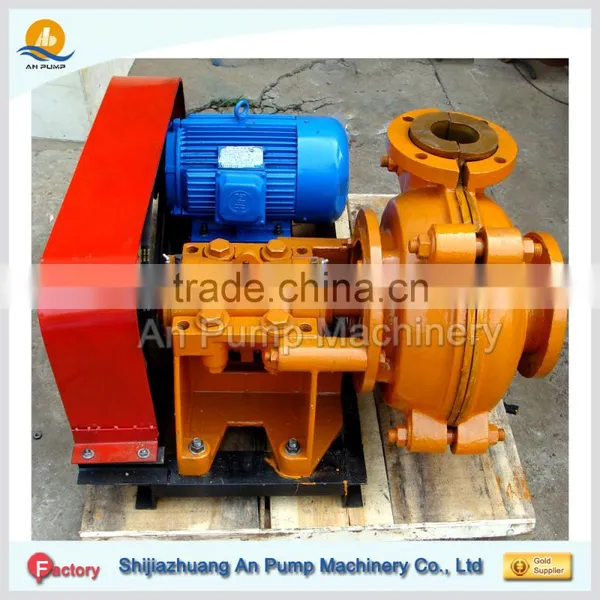

AM Centrifugal Slurry Pump Drive Type:

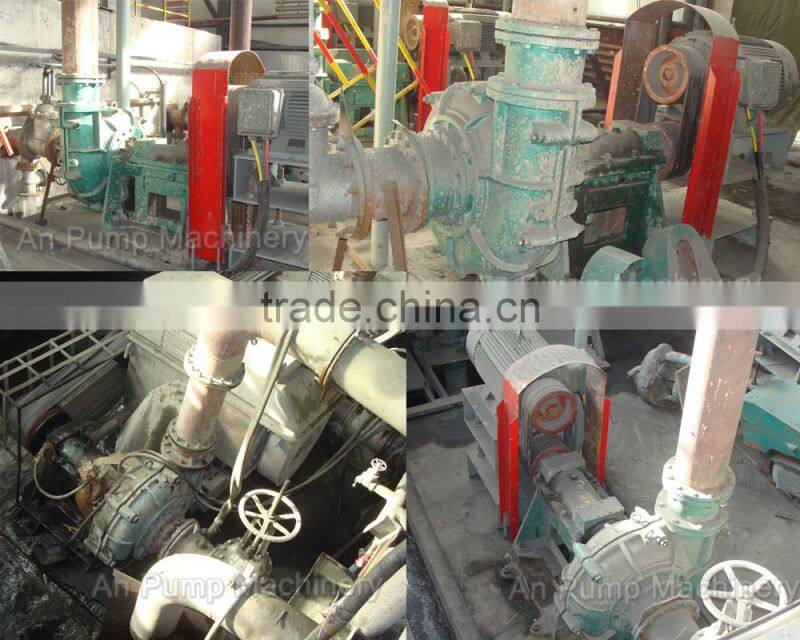

AM Centrifugal Slurry Pump On-site Application:
Mineral Processing | Mill Grinding | Chemical Slurry Service | Food Processing |
Cyclone Feeds | Pulp and Paper | Ash Handling | Cyclone feed |
Flotation | Coal washery | Power plant | Iron Ore Dressing Plant |
Potash Fertilizer Plant | Alumina Industry | Sand Excavation | Mineral Concentration Plant |

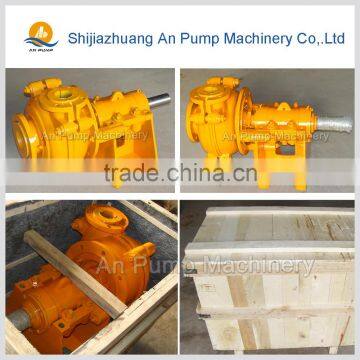

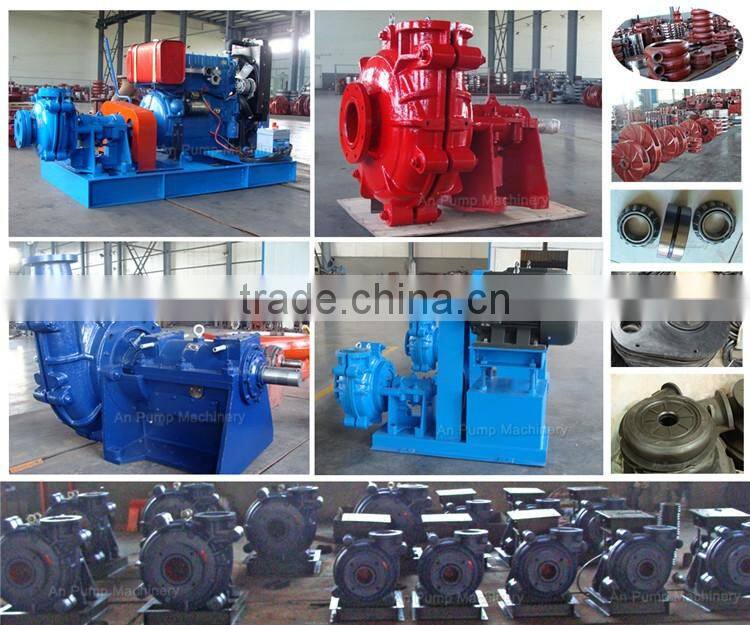

AM Slurry Pump Pictures

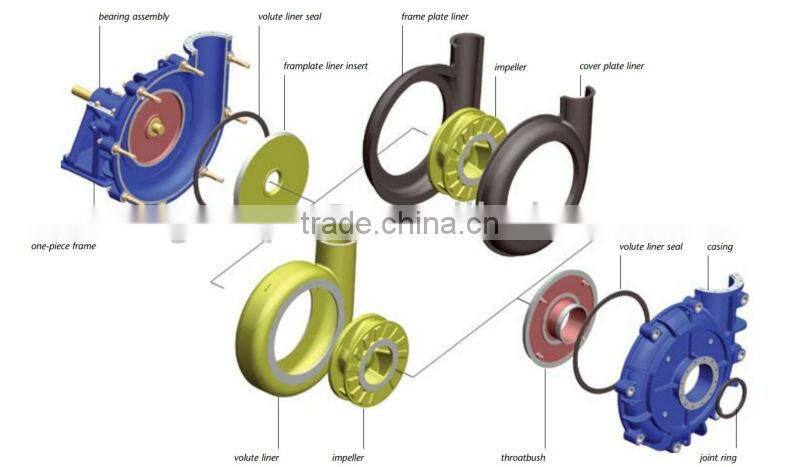

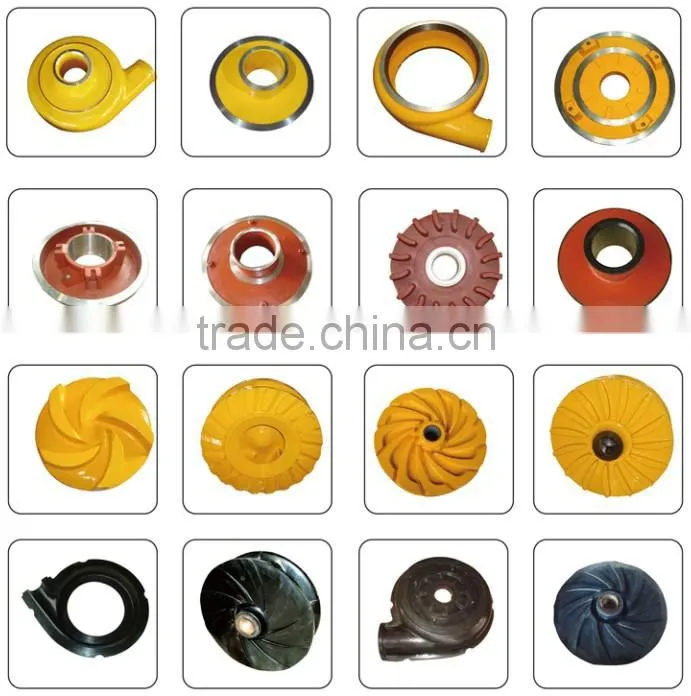

AM Slurry Pump Spare Parts:
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
Learn more , please contact us directly.
Web:
Email:coco(@)
Tel:86-311-89940549 Fax:86-311-86271170
WhatsApp:0086-137-3107-1183
Skype:mandy.anpump
