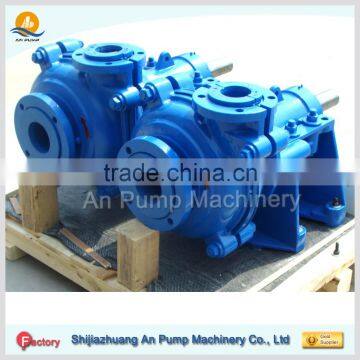

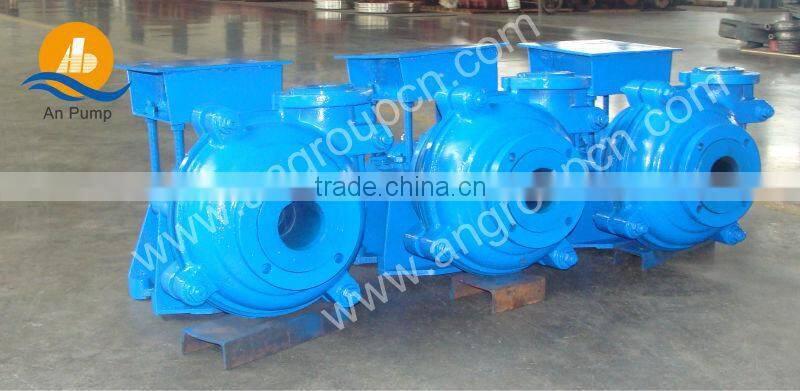

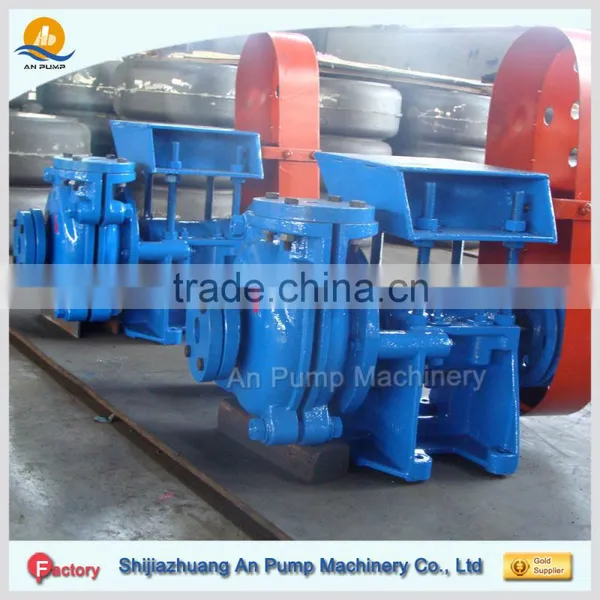

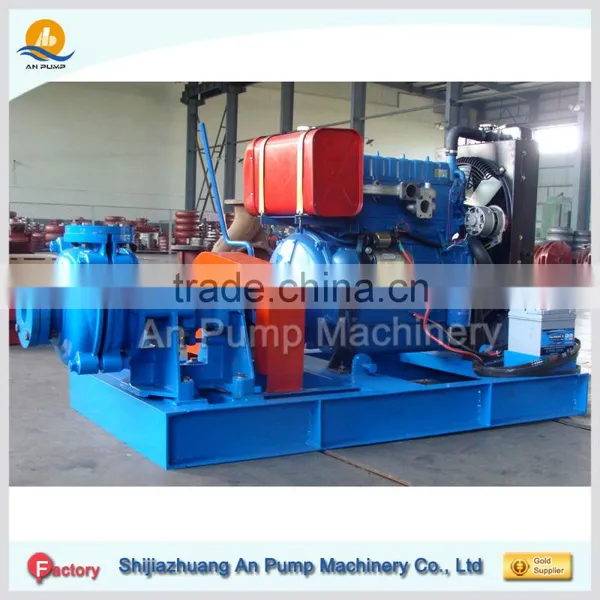

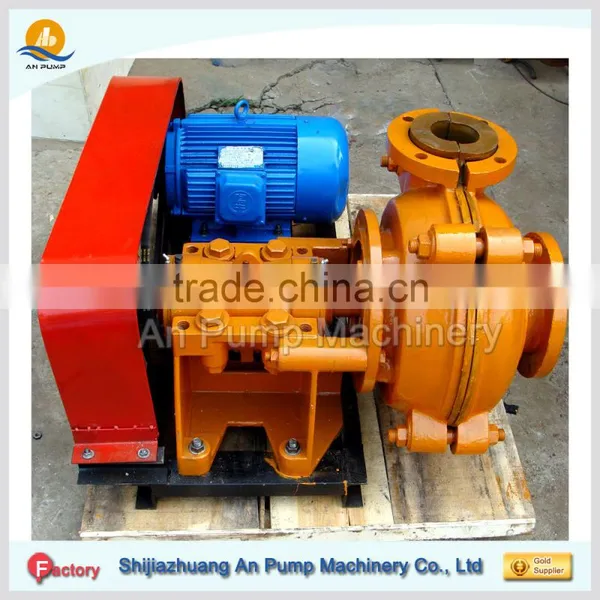

Mining sand pump 4 inches diesel for copper mining

The AM(R) series centrifugal horizontal slurry Pump is the pump for highly abrasive/dense slurries in processes from cyclone feed to regrind, mill discharge, flotation,mine drainage and tailing in minerals plants plus other industrial applications.

Sometimes, it could also be used in dredging of settling lagoons and pumping of drilling mud etc.

sand pump 4 inches diesel Specification

Size : 35-400 mm

Flow :13-5000 m3/h

Head : 6-70 m

Seal form : gland packing / expeller / mechanical seal

Power : electric motor / diesel motor / VFD

Drive type : CV / DC / ZV / CR

sand pump 4 inches diesel Type and performance parameters

sand pump 4 inches diesel Structure chart

Our main pumps

The main pump products including slurry pump, desulfurization pump, gravel pump, sewage pump, impurity pump, split pump with large capacity, multistage pump with hjgh lift, centrifugal water pump and self priming pump, could meet various requirements of all the customers

AM series slurry pump introduce --   slurry pump for cooper mining

AM  series type slurry pumps are cantilevered , horzontal , centrifugal slurry pumps . They are designed for handling abrasive , high density slurries in the metallurgical , mining , coal , power , building matterial and other industrial department etc. The pumps of this type also may be installed in multistage series .

The frame plate for AM type pumps such as enchangeable , hard metal or pressure moulded elastomer liner . The impellers are made of hard metal or pressure moulded elastome liners .

The shaft seals for AM series type slurry pumps may be adoptable of gland seal or centrifugal shaft seal . The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installation and applications .

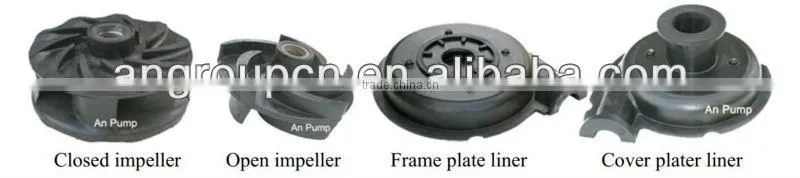

Pump wet parts ( metal and rubber )

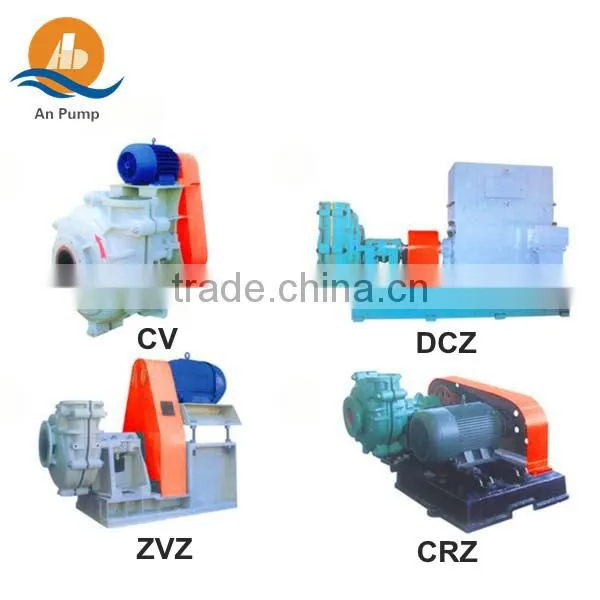

Pump driven type

Applications
