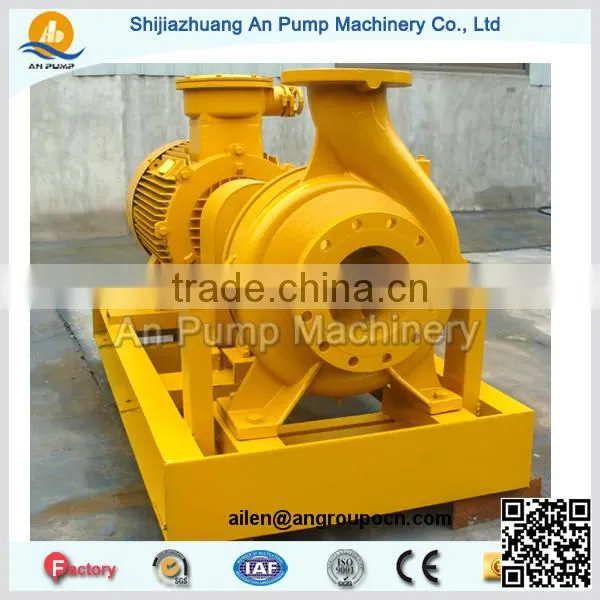

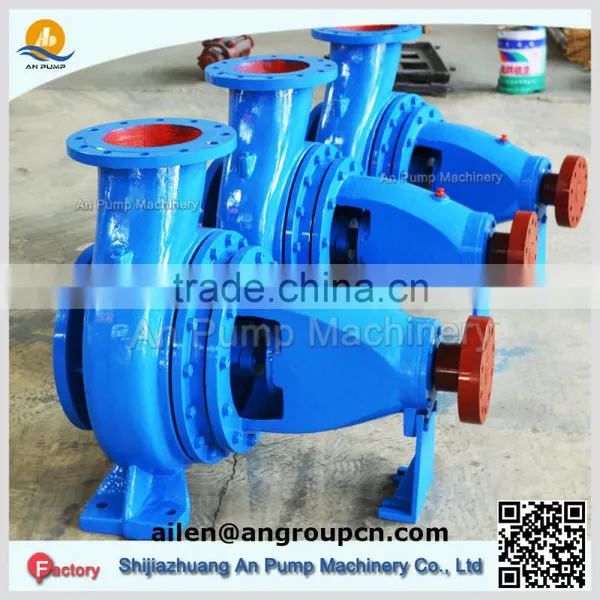

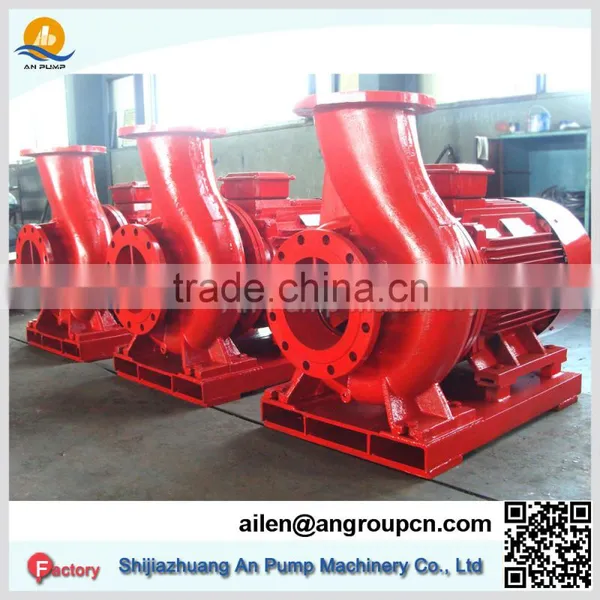

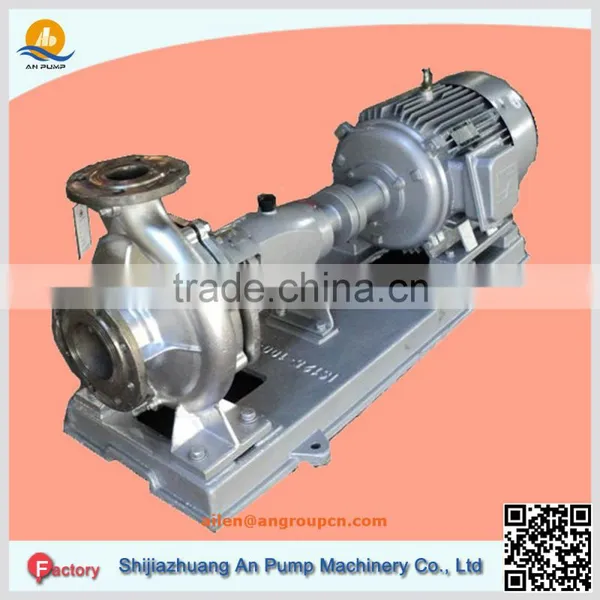

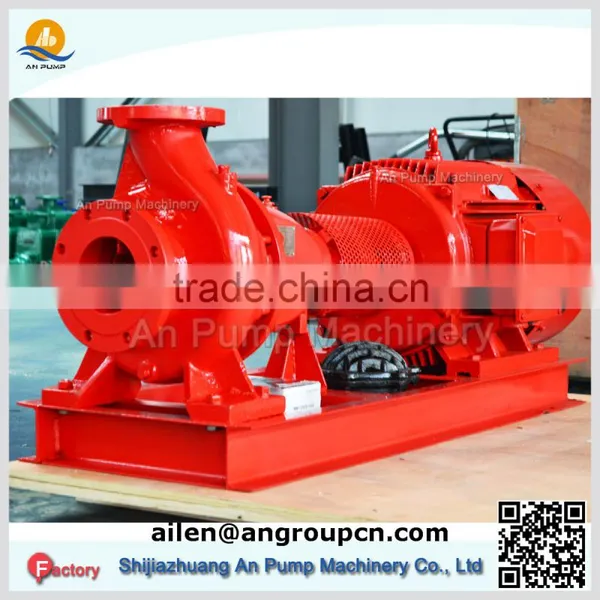

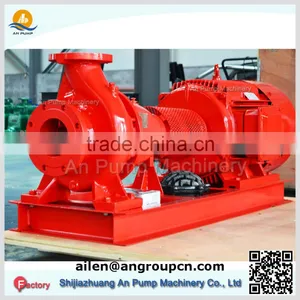

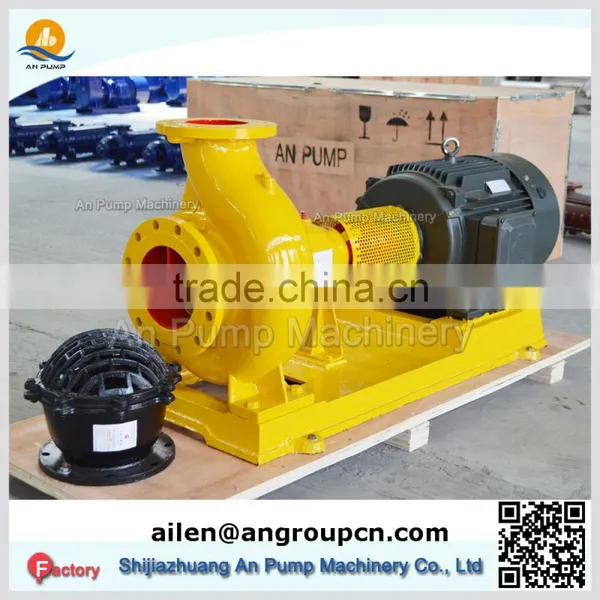

Centrifugal Electric Motor End Suction Marine Desalination Sea Water Pump

Centrifugal Electric Motor End Suction Marine Desalination Sea Water Pump

_{¡¡¡¡¡¡¡¡} APPLICATION !!!!!!!!

Application of Centrifugal Electric Motor End Suction Marine Desalination Sea Water Pump

More:

Water supply system; Heat, air condition system

Clean,thin,non-corrosive,non-flammable or non-explosive liquid without grain or fiber

Booster, constant pressure water supply

Firefighting, splitting system, farming irrigation/drainage

Industry cooling, heater circulation system; Industry transferring, drain system

_{¡¡¡¡¡¡¡¡} DESIGN FEATURES !!!!!!!!

Design Performance of Centrifugal Electric Motor End Suction Marine Desalination Sea Water Pump

Capacity Q: 6.3 – 1200 m3/h

Head H: 5 – 125 m

Inlet diameter: 50 – 300 mm

The type QI sea water pump is a single stage, single suction (axial suction) centrifugal for pumping clean water and the other liquids physically and chemically similar to the clean water. The temperature of liquid shall not be over 80℃.

This pump is suitable for public water supply and drainage duties in industries and land irrigation also in agriculture.

The QI series centrifugal sea water pump is designed and produced according ISO2858 international standard, efficiency improved 5%, NPSH reduce 2%, it’s stable performance and standardized size parts, energy saving high efficient pump series.

_{¡¡¡¡¡¡¡¡} CONSTRUCTION FEATURES !!!!!!!!
Structure for Centrifugal Electric Motor End Suction Marine Desalination Sea Water Pump

The major components are casing, casing cover, impeller, shaft, wear ring, shaft sleeve, bearing bracket etc.

QI fire pump is divided into the casing and the casing cover from the back face of the impeller i.e. back pull-out design. QI pump has the advantages for ease of inspection and maintenance. When inspection, only dismantle the intermediate connector between pump coupling and motor coupling. The rotating element can be completely removed without disturbing the casing, suction and discharge pipeline and motor.

_{¡¡¡¡¡¡¡¡} MATERIAL !!!!!!!!
Material of Centrifugal Electric Motor End Suction Marine Desalination Sea Water Pump

We could also do all kinds of special materials like bronze (brass), duplex stainless steel pump and parts for special application.

_{¡¡¡¡¡¡¡¡} PERFORMANCE !!!!!!!!
Performance of Centrifugal Electric Motor End Suction Marine Desalination Sea Water Pump

_{¡¡¡¡¡¡¡¡} CURVE CHART !!!!!!!!
Curve chart about Centrifugal Electric Motor End Suction Marine Desalination Sea Water Pump

_{¡¡¡¡¡¡¡¡} CONSTRUCTION !!!!!!!!
Construction for Centrifugal Electric Motor End Suction Marine Desalination Sea Water Pump
