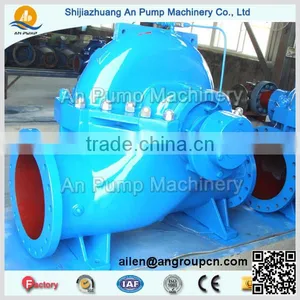

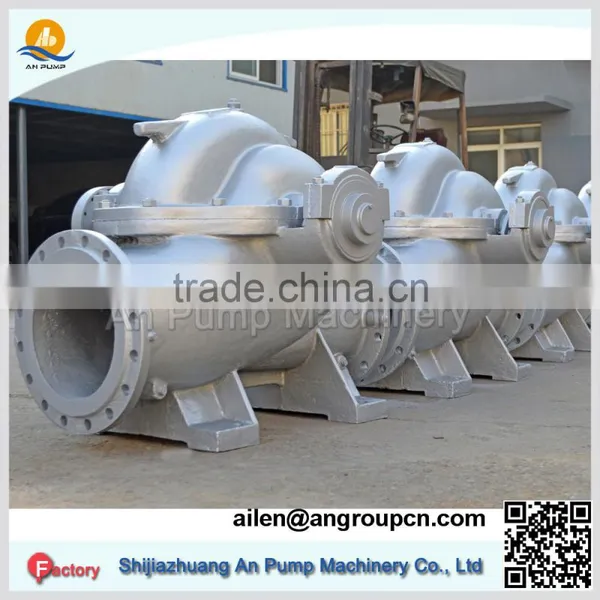

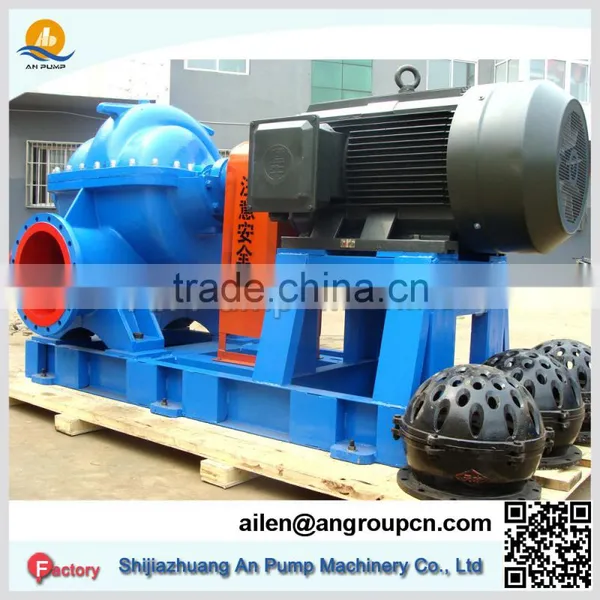

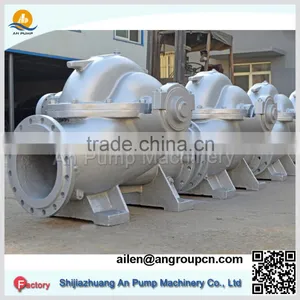

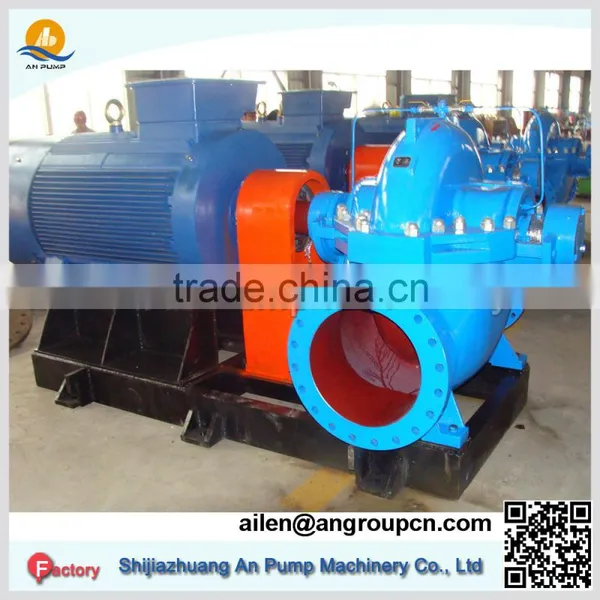

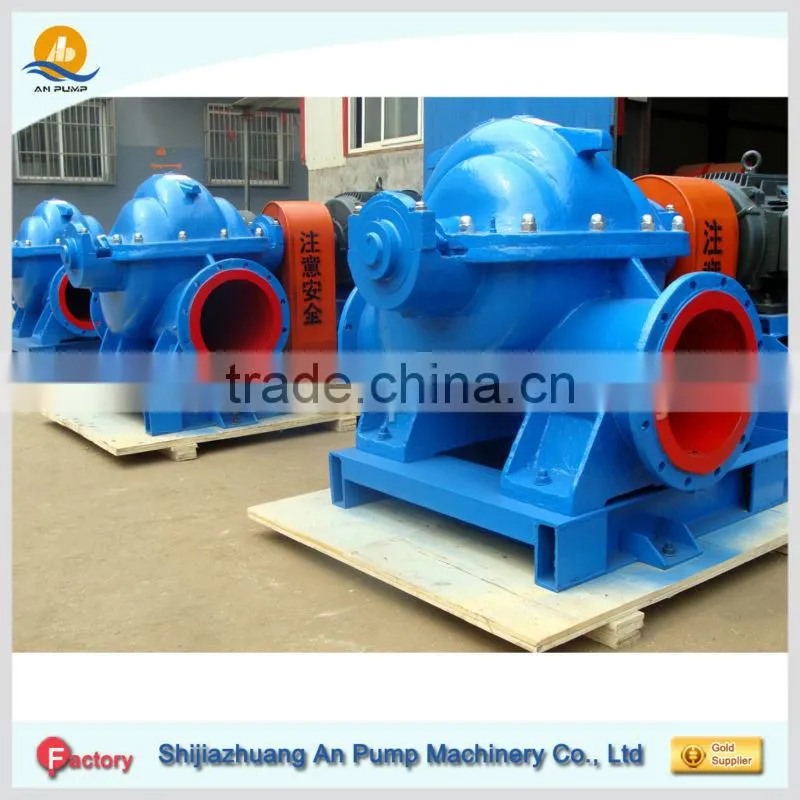

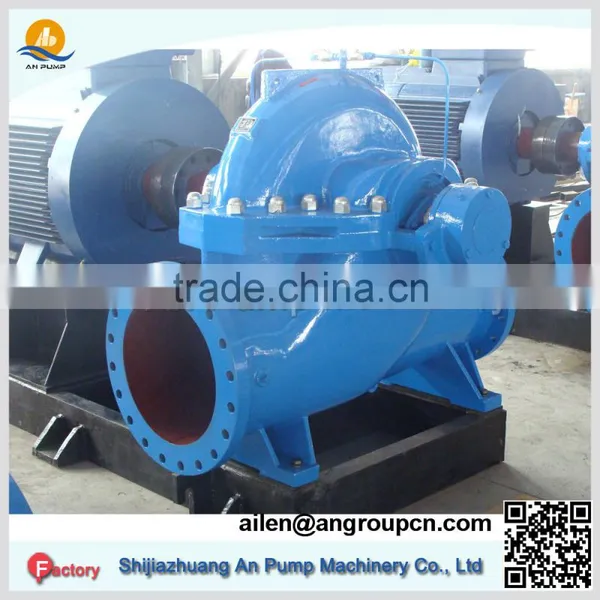

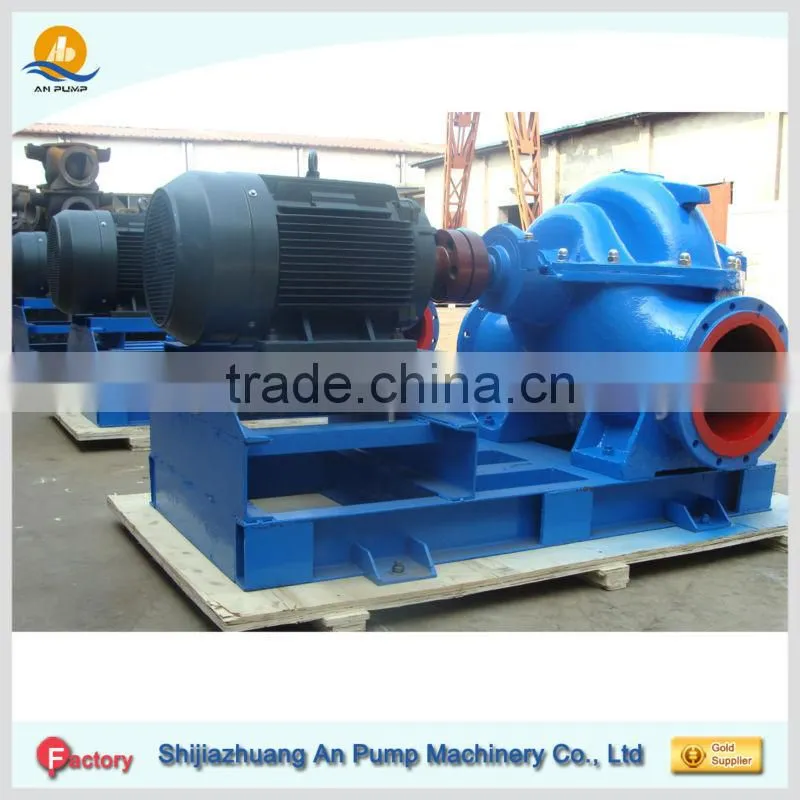

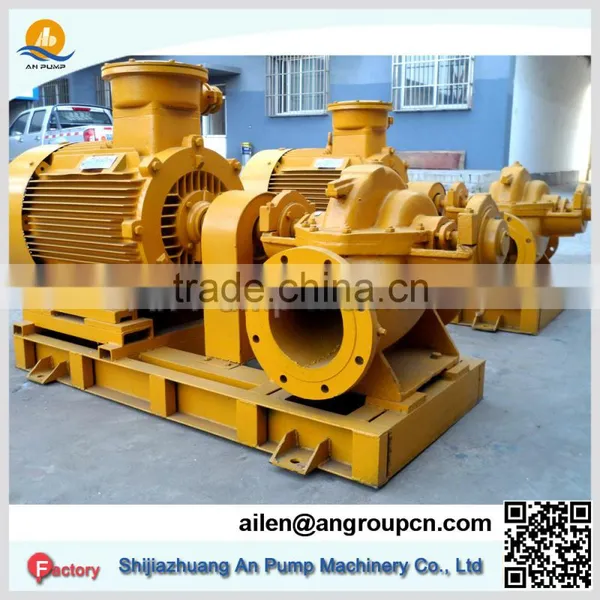

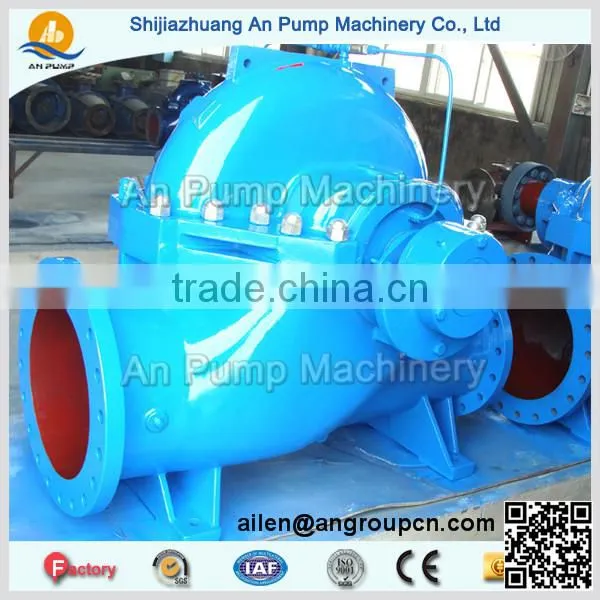

Large Capacity Hydro Power Plant Double Suction Sea Water Pump
⌈⌈⌈⌈ OVERVIEW ⌋⌋⌋⌋
Overview for Large Capacity Hydro Power Plant Double Suction Sea Water Pump
Model QS Sea water pump for hydro power plant is a single-stage double-suction horizontal split centrifugal pump and used to transport seawater.
⌈⌈⌈⌈ APPLICATION ⌋⌋⌋⌋
Application of Large Capacity Hydro Power Plant Double Suction Sea Water Pump
The Sea water pump for hydro power plant is widely used for offshore industry projects.
Large capacity centrifugal Sea wter pump is the new products.
It is specially designed by Shijiazhuang An Pump Machinery Company Designing group for the international seawater projects.
⌈⌈⌈⌈ MATERIALS ⌋⌋⌋⌋
Material of Large Capacity Hydro Power Plant Double Suction Sea Water Pump
Brass, Bronze, Stainless steel, or Chrome alloy material, which can resisit the salt corrosion.
⌈⌈⌈⌈ FEATURES ⌋⌋⌋⌋
Our advantages of Large Capacity Hydro Power Plant Double Suction Sea Water Pump
|
QS series large capacity Sea water pump for hydro power plant matches the performance, technical requirement and testing method for the international fire pump projects. The sea water pump meet the international standard, with the feature of small volume, good performance, stable and reliable operation, and high efficiency, anti salt. Besides, sea water pump is the best choice for the large flow sea water delivery projects. |
⌈⌈⌈⌈ CONSTRUCTION DRAWING ⌋⌋⌋⌋
Construction of Large Capacity Hydro Power Plant Double Suction Sea Water Pump
⌈⌈⌈⌈ PERFORMANCE RANGE ⌋⌋⌋⌋
Performance Range about Large Capacity Hydro Power Plant Double Suction Sea Water Pump
Flow rate:112~14400m3/h
Head:11~100m
Speed:500~2900rpm
Max Eff:92%
⌈⌈⌈⌈ TABLE LIST ⌋⌋⌋⌋
The talbe list for performance of Large Capacity Hydro Power Plant Double Suction Sea Water Pump
| Model | Flow rate |
Head |
Speed |
Power |
Eff |
Iimpeller |
Weight |
(QS) |
(m3/h) |
(m) |
(rpm) |
(KW) |
(%) |
(mm) |
(kg) |
QS150 |
110~220 |
35~84 |
2900 |
30~55 |
67~80 |
186~250 |
145~150 |
QS200 |
160~351 |
31~100 |
2900 |
37~110 |
61~85 |
193~284 |
219~265 |
QS250 |
324~612 |
8.6~71 |
1450 |
22~132 |
72~86 |
224~460 |
405~565 |
QS300 |
504~972 |
8~98 |
1450 |
30~300 |
70~84 |
225~540 |
845~660 |
QS350 |
745~1663 |
10~140 |
1450 |
55~680 |
70~88 |
270~655 |
760~1580 |
QS400 |
900~1620 |
32~98 |
980~1480 |
155~500 |
71.5~84 |
510~535 |
1910 |
QS500 |
1150~2450 |
10.6~108 |
740~970 |
110~800 |
70~89 |
390~860 |
2000~4330 |
QS600 |
2304~4000 |
13~80 |
730~970 |
185~900 |
70~91 |
450~830 |
2500~4300 |
QS700 |
2111~4896 |
39.5~99.5 |
740~980 |
560~1250 |
52~92 |
415~850 |
5800 |
QS800 |
3960~7200 |
23.5~84 |
600~740 |
450~1600 |
77~92 |
715~990 |
5100~8300 |
QS1000 |
6000~9900 |
32~52 |
600~990 |
1250 |
79~87 |
670~695 |
10000 |
QS1200 |
5832~14400 |
6~95.7 |
500~745 |
710~3450 |
80~90 |
560~1200 |
12500~16000 |
⌈⌈⌈⌈ PACKAGING & SHIPPING ⌋⌋⌋⌋
Packing and shipping about Large Capacity Hydro Power Plant Double Suction Sea Water Pump
Outside: Standard fumigated wooden case
Inner: Stretch film
Bottom: Wooden pallet
⌈⌈⌈⌈ OUR SERVICES ⌋⌋⌋⌋
Our services about Large Capacity Hydro Power Plant Double Suction Sea Water Pump
|
1. Offer Sea water pump solutions 2. Sea water pump OEM available 3. Sea water pump design |
|
4. Centrifugal Sea water pump installation 5. Sea water pump maintenance |
|
⌈⌈⌈⌈ OUR COMPANY ⌋⌋⌋⌋
Shijiazhuang An Pump Machienry Co., Ltd is the base of slurry pump, slit pump, desulfurization pump and sewage pump. We have many technical and manage outstanding person who are high stuff and seasoned. Our company absorbs new science and technology fruit, empolder series of high level pump products. We can produce more than 500 kinds of pump products for the line of metallurgy, mine, electric power, coal, petrol and etc.
Especially Sea water pump, we already have 30 years experience in manufacturing.
