Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > AQW Contaminated Water Pump for Trailings Dam

AQW Contaminated Water Pump for Trailings Dam

Name: AQW Contaminated Water Pump for Trailings Dam
Brand: An Pump
SKU: 141181114
Availability: InStock

AQW Contaminated Water Pump for Trailings Dam thumbnail-1

AQW Contaminated Water Pump for Trailings Dam photo-1

US$ 120 - 2,600 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

An Pump

Model Number:

AQW

Contact Supplier Request Quote Chat Now

Shijiazhuang An Pump Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name An Pump

Model Number AQW

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Diesel

Pressure Other, standard

Application Sewage

Pump Description

AQW series submersible sewage pump is absorbed in the QW on the basis of similar products at home and abroad advanced technology and features, using the most excellent hydraulic model, special structures and materials, combined with sewage effluent characteristics and the actual needs of the most developed at home and abroad advanced, most feature-complete "third generation" of new sewage pump, its efficiency and performance are superior to similar products at home and abroad.

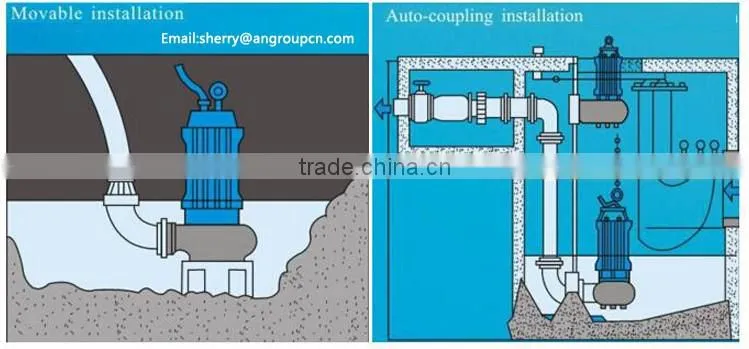

The pump has a high efficiency energy-saving, non-blocking, anti-winding, long life and other notable features can be installed with an automatic coupling device. And a common type, auto-mixing type, auto-shredding type, auto-mixing chopped-and anti-flushing-type five kinds of models.

According to market needs, the pump is divided into common type (excluding the ultra-mild leakage
protection device) and full insurance-type two kinds. Full insurance-type submersible sewage pump must
an pump supporting the use of dedicated control cabinet to achieve the perfect results.

Pump Performance

No	Type	(mm) Outlet dia.	(m³/h) Capacity	(m) Head	(rpm) Speed	(Kw) Power
28	80AQW43-13-3	80	22	14.5	2900	3
			43	13
			52	11
29	80AQW45-22-5.5	80	23	24.2	2900	5.5
			45	22
			53.5	19.8
30	80AQW50-10-3	80	35	11.5	2900	3
			50	10
			60	8
31	80AQW50-25-7.5	80	35	26.5	2900	7.5
			50	25
			60	23.5
32	80AQW30-13-4	80	42	14.5	2900	4
			60	13
			72	11
33	100AQW50-22-7.5	100	35	23.5	1450	7.5
			50	22
			60	20.5
34	100AQW65-15-5.5	100	45.5	17.5	1450	5.5
			65	15
			78	12
35	100AQW80-9-4	100	56	11	1450	4
			80	9
			90	7
36	100AQW80-20-7.5	100	56	22.5	1450	7.5
			80	20
			96	17
37	100AQW100-7-4	100	70	9.4	1450	4
			100	7
			120	5.6
38	100AQW100-15-7.5	100	70	17.5	1450	7.5
			100	15
			120	12.5

Pump Application

water

sewage, waste water

harbour construction
ash transfer
silt removal
sand and gravel pumping
barge and tank clean out
lime slurry
coal runoff sumps
food waste

Pump Structure

Bearing:
Imported SKF of NTN bearing, which, with a reasonable configuration, can oxtend the duration of the pump.
Cooling:
The buit-in cooling system can have the pump normally work whether the motor is on or under the liquid surface. A part of the liquid is extracted to bring out the beat produced by the motor from the pump circulation to the cooling barrel and to the pump casing and, when external cooling is required, the cooling sleeve may be separated from the pump casing and individually connected to the cooling system.
Motor:
Of F class insulation, max. working temperatures 155 C, and of a protective grade IPX8 with the effective seal.
Mechanical seal:
Use high quality mechanic seal , two ways of the seal are in series with each other and individually work to separate the motor from the pump seal to provide the motor with a dual protection.
Oil chamber:
Oil can lubricate and cool the mechanical seal and realize the attached function of safety by preventing liquid from penetrating into the motor.
Impeller:
With the optimized design, the impeller wil not be blocked up when to transport liquid with its optimum flow and rate and the maximum efficiency. There are suitable impellers at choice for every point of working condition.
Pump casing:
Use the know-how of CAD/CAM to make it of max. efficiency and min wearability
Shaft:
The pump is coaxial with the motor and the sealing device on the end of the shaft preven ts against contacting with the medium to protect is from corrosion.
