Industrial heavy duty sea water pump
- 600 Set / Sets per Month
- Tianjin ( xingang )
- T/T L/C D/P D/A Credit Card
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | An Pump | Model Number: | QS, QSH |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, electric sea water pump |
Pressure: | Other, Middle Pressure industry sea water pump | Application: | Other, industry sea water pump |
Product Description

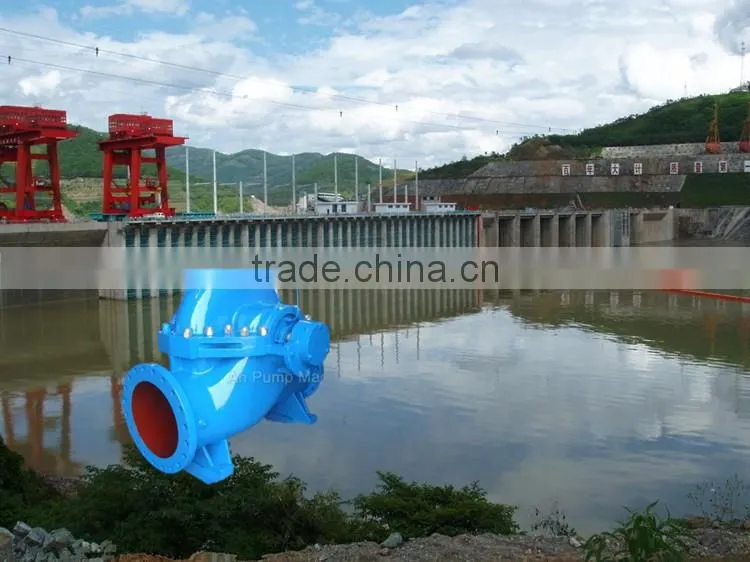

Industrial heavy duty sea water pump
QS, QSH series Water Pump (double-suction pump)
Description: QS, QSH series pump one of the main characters is large flow rate. It can reach 110m3/h—10000m3/h. The pump structure simple, easy for operation and maintenance. It is suitable for pure water or liquids similar to water in physico-chemical property. We can use stainless steel material for the corrosion liquids. This model is widely used in agriculture irrigation, fire fighting, steel, power industry. The pump head range 6-145m, it can be used in series when high head. Small amount of particles <10mm can pass through.
1) Easy installation and move, open back structure makes it easy to take out the rotor;
2) Pump body support by anchor assure the stable structure and maximum resistance off-center and distortion caused by line load;
3) No overload design, make sure performance operate stably;
4) Adopt national standard hydraulic model make sure high operation efficiency and good anti-cavitation performance;
5) Packing seal and mechanical seal are available.
What is the Industrial heavy duty sea water pump Performance ?
Type | Capacity (m3/h) | Head (m) | Speed (r/min) | Power (Nm) | Efficiency η(%) |
QS150 | 112-220 | 35-84 | 2900 | 30-55 | 68-80 |
QS200 | 160-351 | 31-100 | 2900 | 37-110 | 61-85 |
QS250 | 324-612 | 8.6-65.1 | 1450 | 22-132 | 72-86 |
QS300 | 504-1663 | 8.7-140 | 1450-1470 | 22-680 | 70-87 |
QS350 | 745-1570 | 10-125 | 1450-1470 | 55-630 | 70-88 |
QS400 | 900-1620 | 32-85.5 | 980-1480 | 440-500 | 71.5-84 |
QS500 | 1150-3800 | 10.6-108 | 740-970 | 110-800 | 70-89 |
QS600 | 2300-4000 | 13-80 | 730-970 | 145-730 | 70-91 |
QS700 | 2111-4896 | 39.5-99.5 | 742-980 | 397-1252 | 52-92 |
QS800 | 3960-688 | 23-84 | 600-750 | 450-1600 | 77-92 |
QS1000 | 6600-9900 | 32-52 | 600 | 1250 | 79-88 |
QS1200 | 5832-14400 | 6-95.7 | 500-745 | 710-3450 | 80-90 |
Detail performance and technical information please send email below for more!
What is the Industrial heavy duty sea water pump Applications?
- Agriculture water supply
- Agriculture irrigation water feed
- Circulating Water Systems
- Fire Fighting
- Irrigation
- Paper Mills
- Pharmaceuticals
- Ports & Docks
- Sugar Mills
- Vegetable Oil Mills
- Water / Effluent Treatment
- Sea/river Water delivery

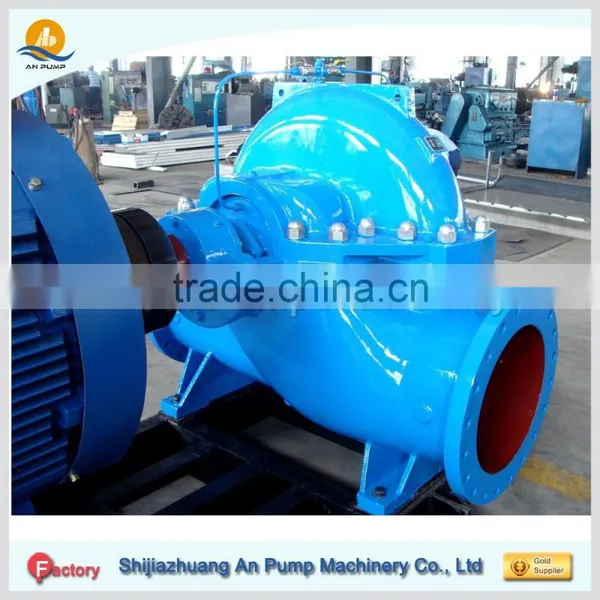

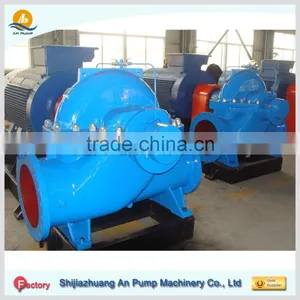

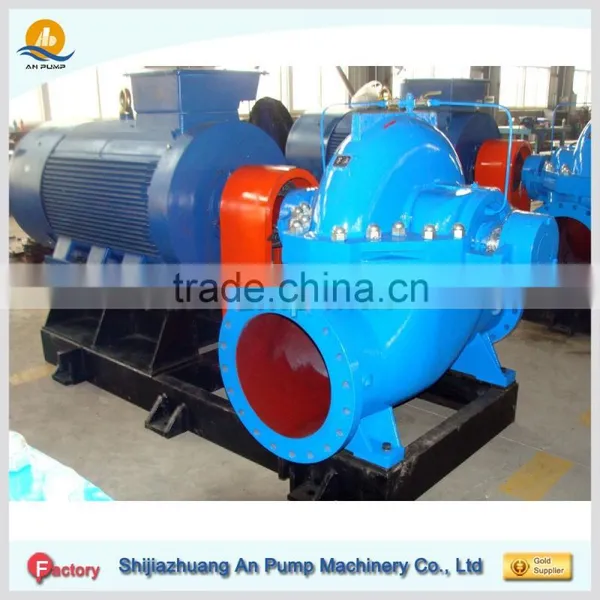

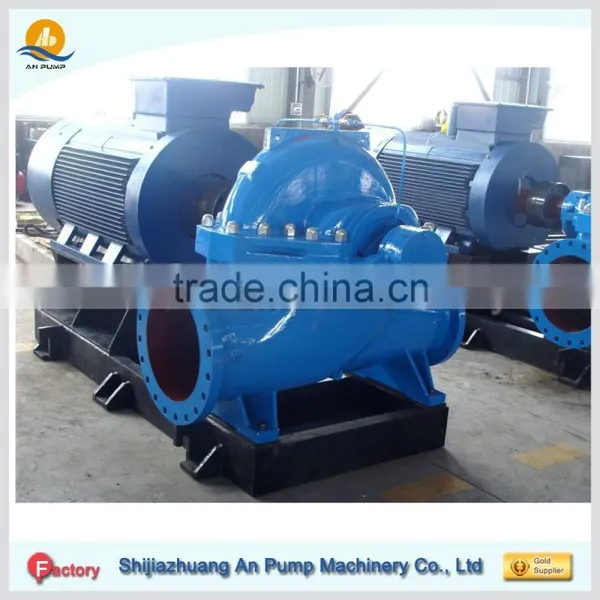

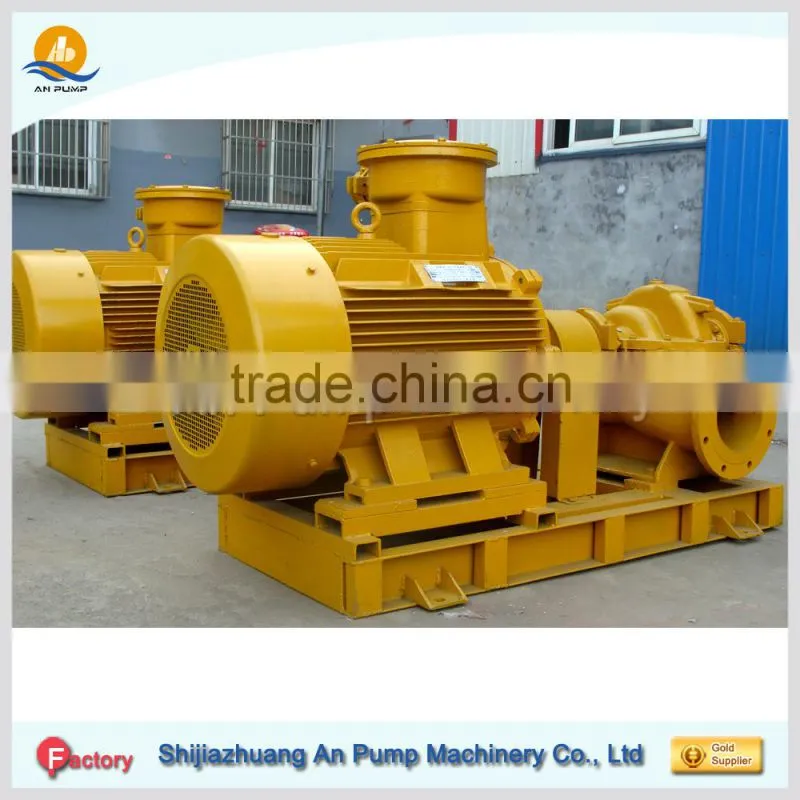

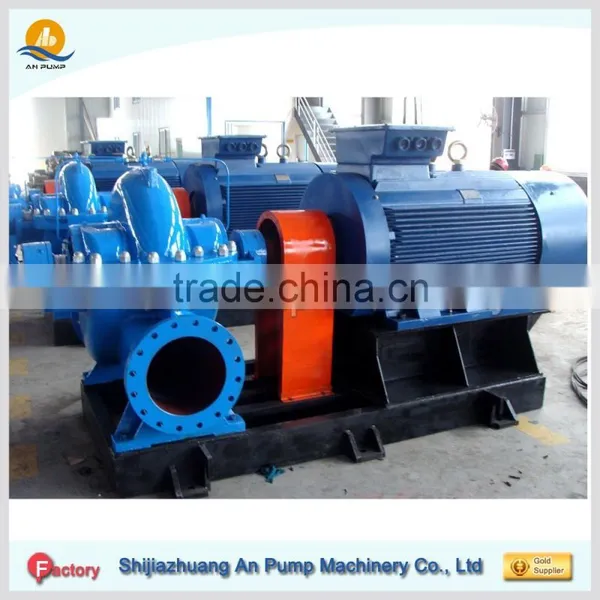

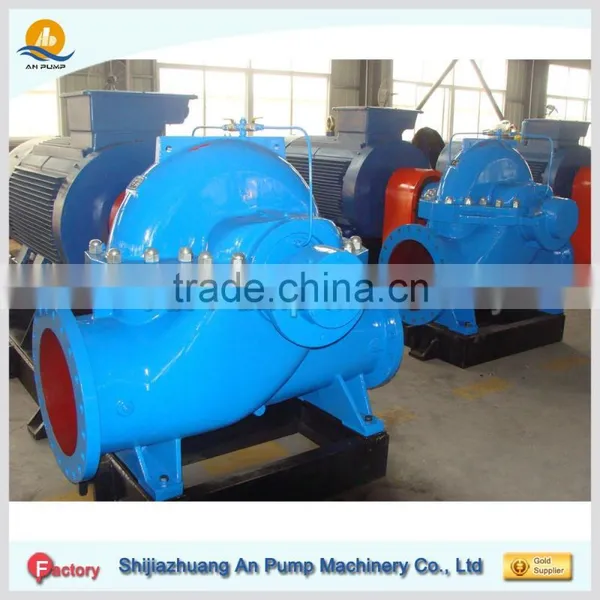

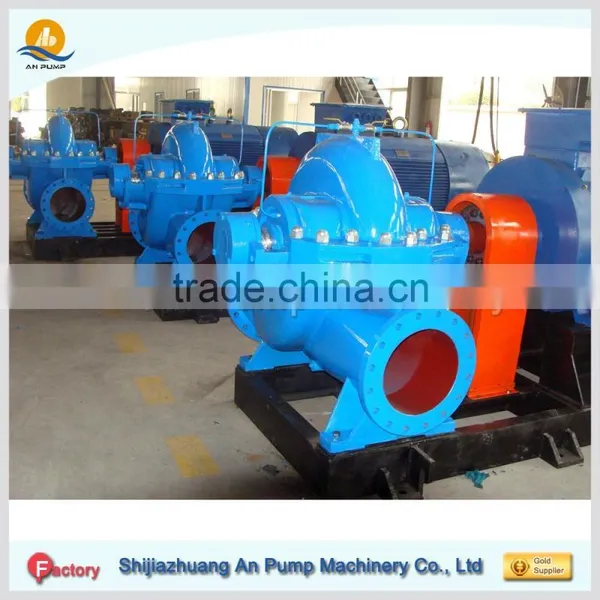

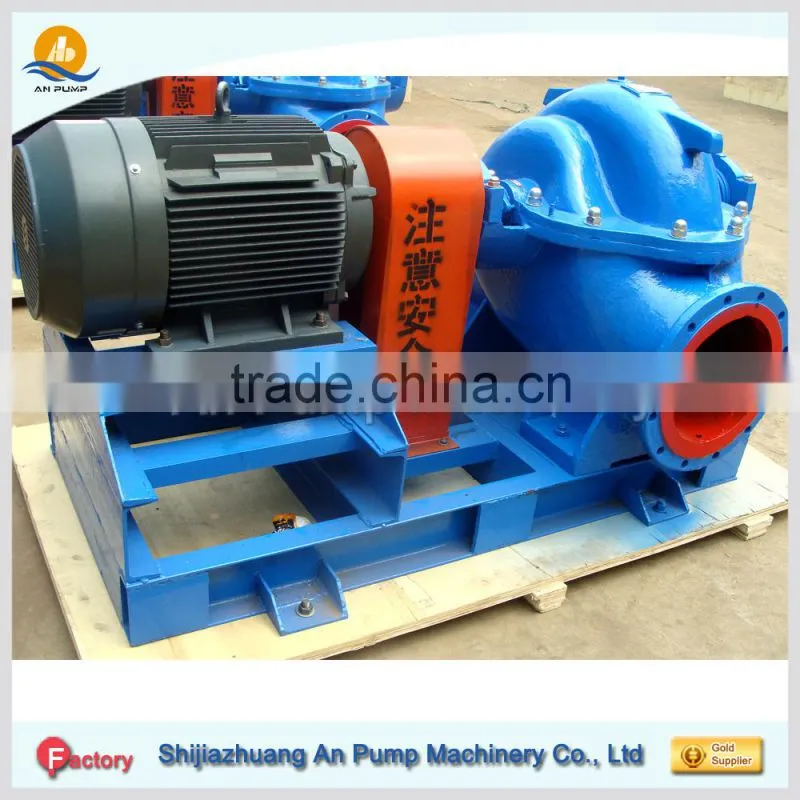

Industrial heavy duty sea water pump Pictures

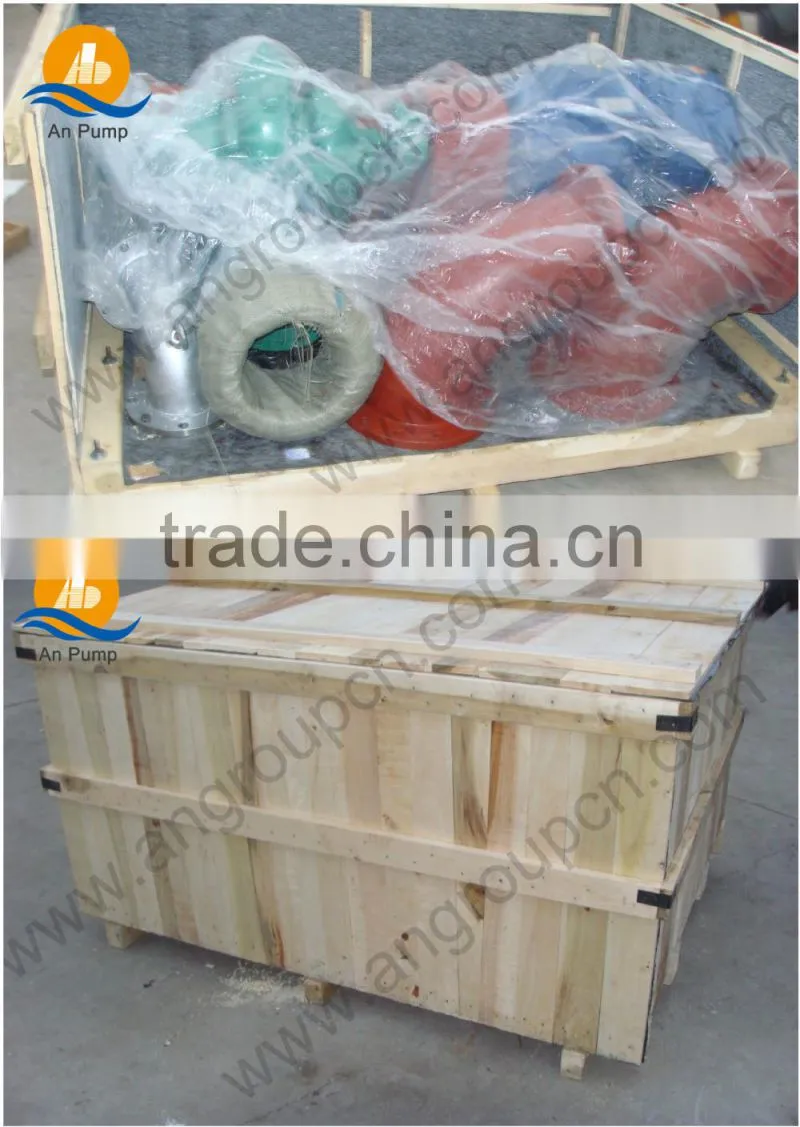

- Standard wooden cases package, if special requirements, should be inform in advance;
- Shipping by sea, by air, by train and truck all available;
- Delivery date: vary from 5-30days according to different model and quantity.
Guarantee and Service
1 year guarantee of whole machine set, except the flow parts
24hours *7 days service is available
Calling or door to door service
User manual and maintenance instruction is available
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An pump machinery company has its own strong type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, SouthEast Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, Canada, France, America, Middle East, Asia and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision
and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Send your inquiry details in the below, click "send" now! Send is to earn!
