Centrifugal Gravel and sand Dredging pump dredger
Horizontal centrifugal gravel sand pump use in metallurgy, mining, coal, power, construction material and many other industries with handling most difficult abrasive slurry which contain big solids.
ΞΞΞΞΞΞ PERFORMANCE DATA ΞΞΞΞΞΞ
Performance table list for Centrifugal Gravel and sand Dredging pump dredger
| horizontal centrifugal gravel sand pump | |
| Item | Data |
| Max flow | 3850m3/h |
| Max head | 70m |
| Max Power | 2200KW |
| Metiral | Metal |
| Suction dia | to 500mm |
| Discharge dia | to 450mm |
| Max particle | 440mm |
| Shaft seal | Gland packing seal, Expeller seal, Machenical seal |
ΞΞΞΞΞΞ PARAMETER ΞΞΞΞΞΞ

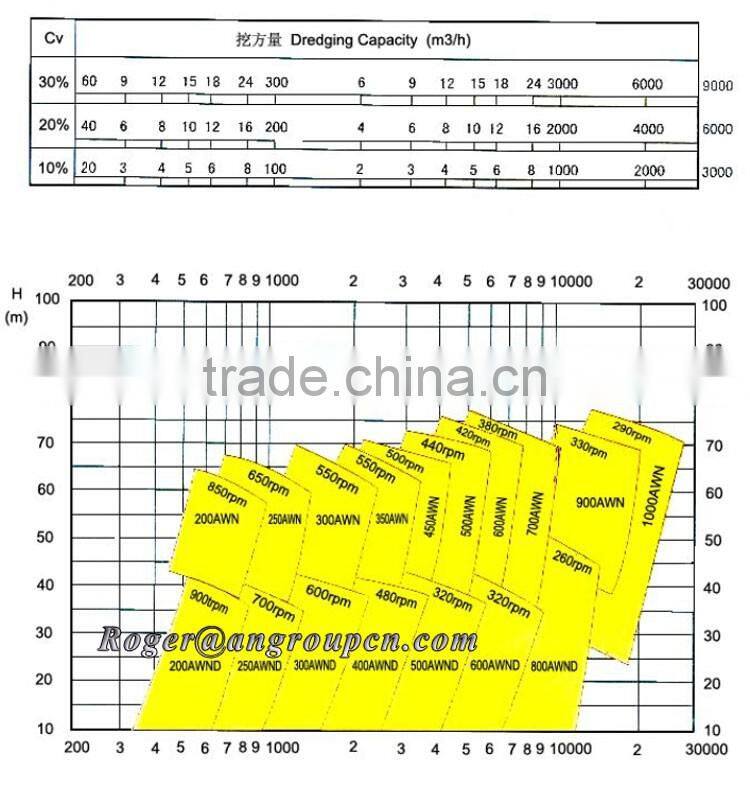

Data sheet for Centrifugal Gravel and sand Dredging pump dredger
ΞΞΞΞΞΞ CONSTRUCTION ΞΞΞΞΞΞ

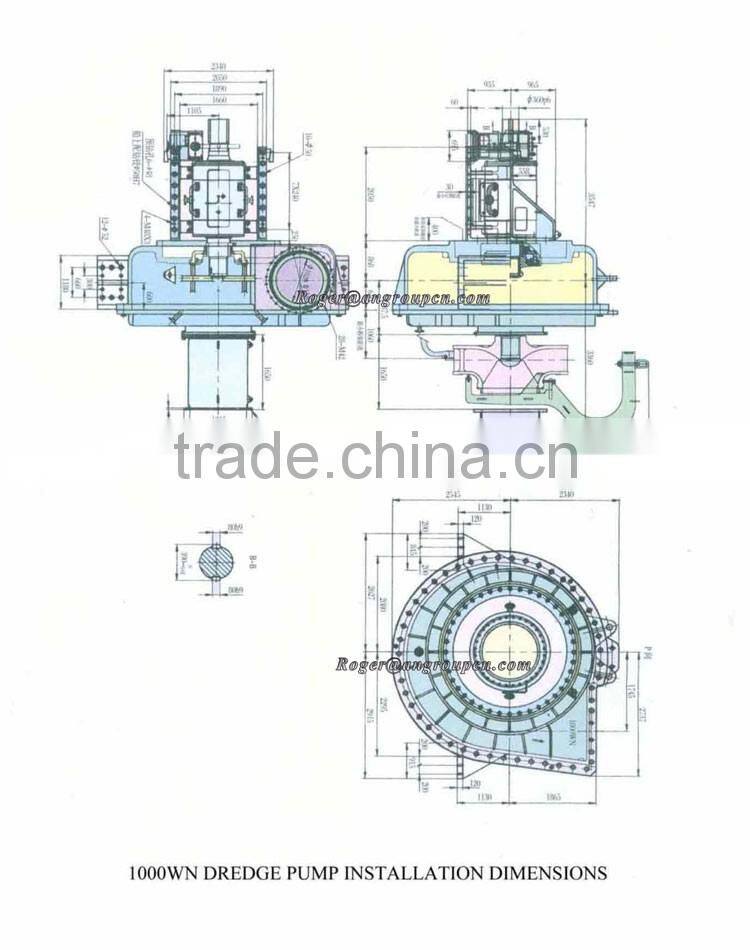

Construction and szie of Centrifugal Gravel and sand Dredging pump dredger
ΞΞΞΞΞΞ SHIPPING ΞΞΞΞΞΞ

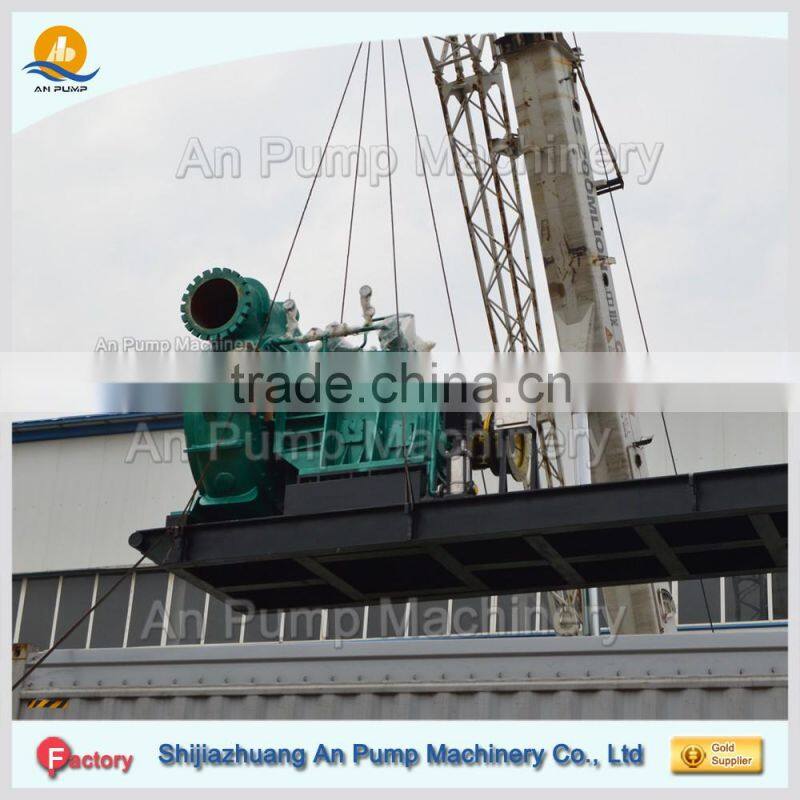

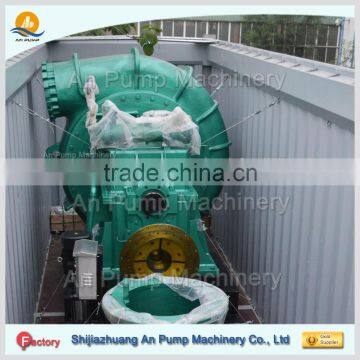

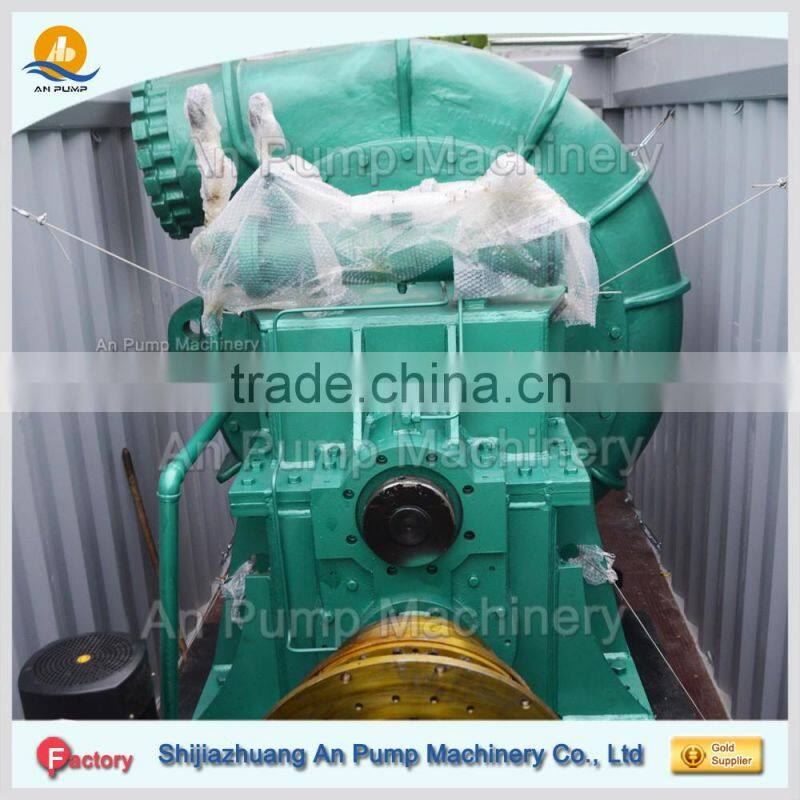

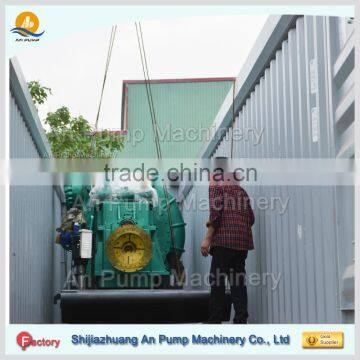

Shipping for Centrifugal Gravel and sand Dredging pump dredger
ΞΞΞΞΞΞ OUR SERVICE ΞΞΞΞΞΞ
Service to Centrifugal Gravel and sand Dredging pump dredger
1. Offer gravel and sand pump solution design as working condition,
2. Installation & ajustment in working condition,
3. Accept OEM
4. Select pump & related equipement,
5. Sample available.
Service |
Specification |
1. Pump selection |
Send us the basic data (medium, head, flow rate...) |
2. OEM or ODM |
Please show us the drawing |
3. Process design |
Offer process design as working condition. |
An Pump Machinery is your Best cutter suction dredger Pump Manufacturer
An Pump Machinery Co. ,Ltd is the cutter suction dredger pump manufacturer with 50+ years experienced
Our pumps export to over 90 countries all over the world in mining, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc. click to more...
An pump machinery’s main products includes: slurry pump, desulfurization pump, gravel pump, mud pump,
sewage pump, submersible pump, submersible sewage pump, impurity pump, large capacity split casing pump,
high head multistage water pump,end suction pump, self priming pump, pump parts and ancillary equipment.
which can satisfy different kinds of demands.
FAQ for Centrifugal Gravel and sand Dredging pump dredger
1. Q: Are you the Dredger Manufacturer ?
A: Yes, An Pump Machinery is one Drdger Manufacturer nearly 50 years!
Click to see the video about our factory!
Click to see the pictures of the factory!
An Pump Machinery is your best Dredger Pump Manufacturer
2. Q: Is there any discount to buy your Dredger pump or Dredger Pump Parts ?
A: Yes, as one of the best Pump Manufacturer , we have different promption plan for different customer :
(1) You could click to contact Roger Chen, who is the sales driector of An Pump Machinery to sign up as the VIP, he will explain the details to you 24x7 !
(2) You could copy roger @ (note: there is space both front and back of the @, you should remove it away to send the email).
(3) Call at +86 137 805 12387 or use your wechat, or whatsapp to search this no. to add us. You could also add chenroger1215 if you use skype.
There are speical discount for cutter suction dredger pump and pump parts !
3. Q: Is there any cutter suction dredger Price list ?
A: Yes, The new 2016 Slurry Pump Price list is avaiable for our approved agent. Pls contact pump @ for more!
