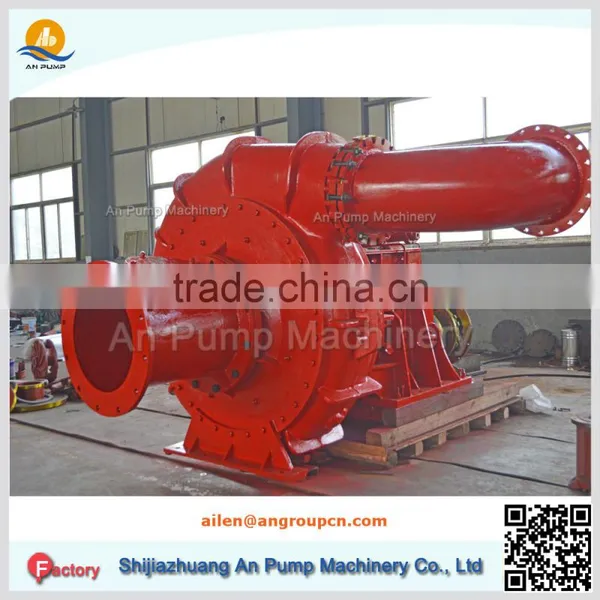

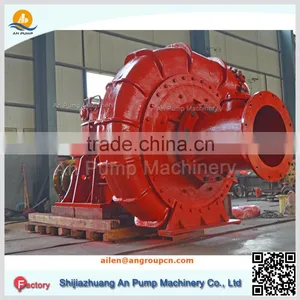

Large Capacity 20 Inch Dredging Gravel Sand Suction Pump
ΞΞΞΞΞΞ OVERVIEW ΞΞΞΞΞΞ
Overview for Large Capacity 20 Inch Dredging Gravel Sand Suction Pump

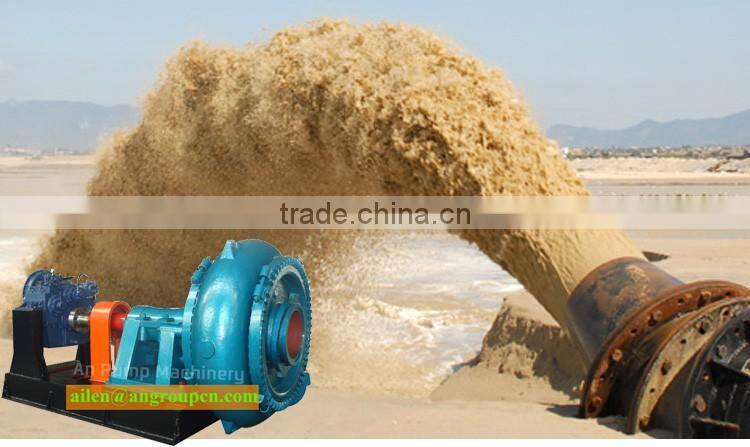

Horizontal centrifugal gravel sand pump use in metallurgy, mining, coal, power, construction material and many other industries with handling most difficult abrasive slurry which contain big solids.
ΞΞΞΞΞΞ PERFORMANCE DATA ΞΞΞΞΞΞ
Performance table list for Large Capacity 20 Inch Dredging Gravel Sand Suction Pump
| horizontal centrifugal gravel sand pump | |
| Item | Data |
| Max flow | 3850m3/h |
| Max head | 70m |
| Max Power | 2200KW |
| Metiral | Metal |
| Suction dia | to 500mm |
| Discharge dia | to 450mm |
| Max particle | 440mm |
| Shaft seal | Gland packing seal, Expeller seal, Machenical seal |
ΞΞΞΞΞΞ PARAMETER ΞΞΞΞΞΞ
Data sheet for Large Capacity 20 Inch Dredging Gravel Sand Suction Pump
| Sand pump | Detail |
Power (KW) |
Weight/kg | ||
| Flow |
Head (m) |
Speed (rpm) |
Metal | ||
| m3/h | |||||
| 6/4 | 36-252 | 7-51 | 600-1400 | 52 | 460 |
| 8/6 | 133-576 | 10-48 | 800-1400 | 88 | 1120 |
| 10/8 | 216-930 | 11-44 | 500-940 | 147 | 2285 |
| 12/10 | 360-1512 | 11-58 | 400-850 | 305 | 4450 |
| 14/12 | 522-3168 | 9.5-66 | 300-700 | 643 | 5400 |
| 12/10H | 612-2232 | 28-77 | 450-700 | 558 | 4638 |
ΞΞΞΞΞΞ CURVE CHART ΞΞΞΞΞΞ

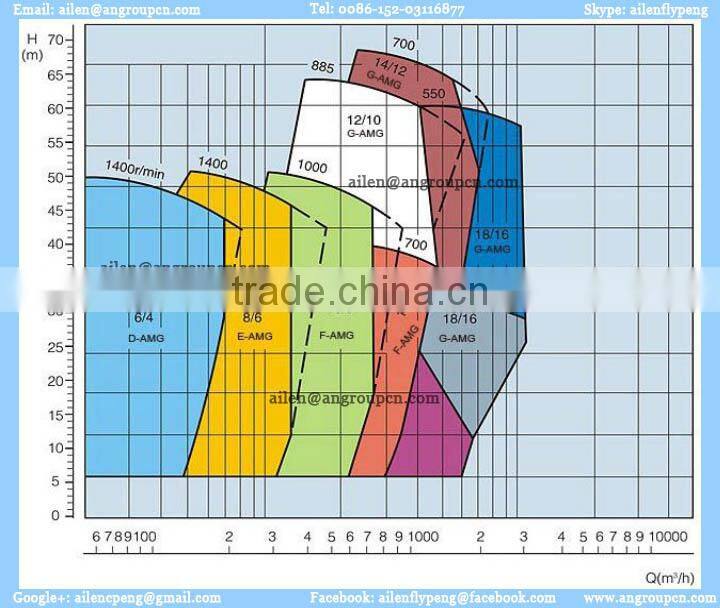

Performance curve chart for Large Capacity 20 Inch Dredging Gravel Sand Suction Pump
ΞΞΞΞΞΞ CONSTRUCTION ΞΞΞΞΞΞ

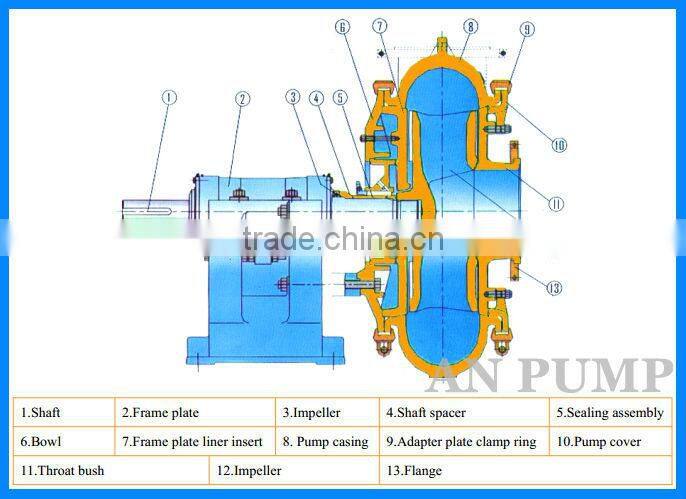

Construction of Large Capacity 20 Inch Dredging Gravel Sand Suction Pump

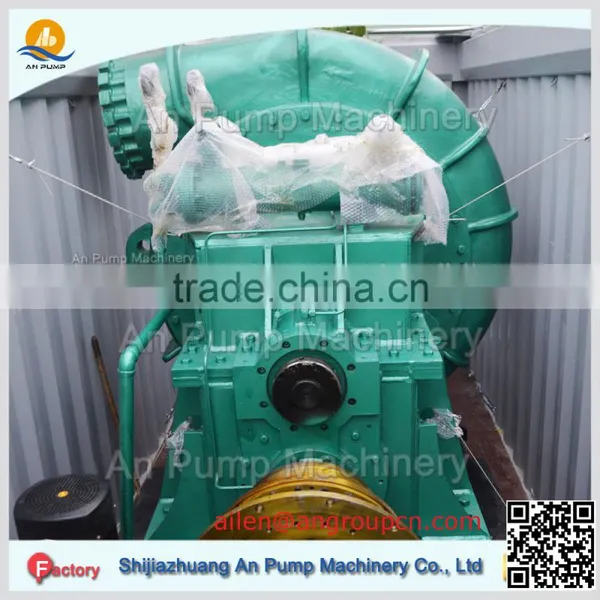

ΞΞΞΞΞΞ SHIPPING ΞΞΞΞΞΞ

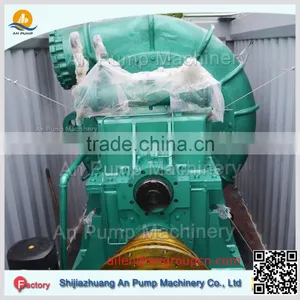

Shipping for Large Capacity 20 Inch Dredging Gravel Sand Suction Pump
ΞΞΞΞΞΞ OUR SERVICE ΞΞΞΞΞΞ
Service to Large Capacity 20 Inch Dredging Gravel Sand Suction Pump
1. Offer gravel and sand pump solution design as working condition,
2. Installation & ajustment in working condition,
3. Accept OEM
4. Select pump & related equipement,
5. Sample available.
Service |
Specification |
1. Pump selection |
Send us the basic data (medium, head, flow rate...) |
2. OEM or ODM |
Please show us the drawing |
3. Process design |
Offer process design as working condition. |
Shijiazhuang An Pump Machinery Co.,Ltd is a manufacture & trading enterprise, engaged in pump designing, manufacturing, selling & service.
Main products: gravel and sand pump, slurry pump, desulfurization pump, gravel pump, mud pump, sewage pump, submersible pump, submersible sewage pump, impurity pump, large capacity split casing pump, high head multistage water pump, end suction pump, self priming pump, pump parts and ancillary equipment. Especially Shijiazhuang AMG 12 Inch Alloy Deep River Gravel Sand Dreger Pump
ΞΞΞΞΞΞ FAQ ΞΞΞΞΞΞ

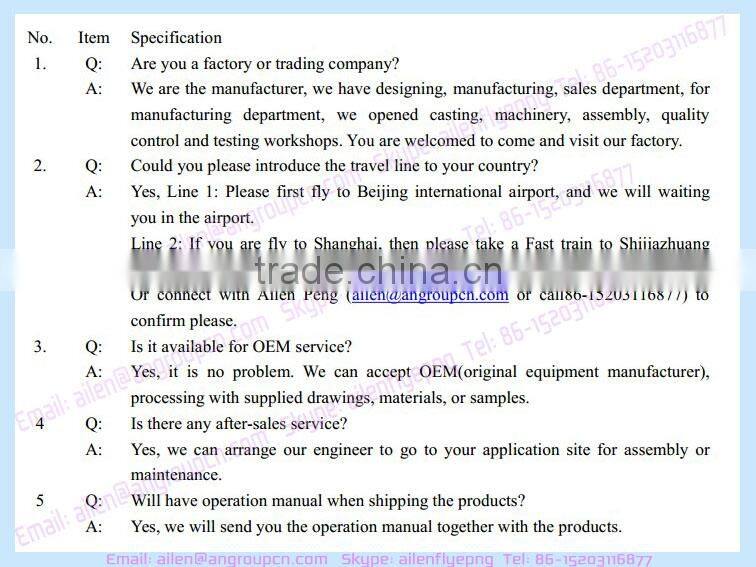

FAQ for Large Capacity 20 Inch Dredging Gravel Sand Suction Pump
ΞΞΞΞΞΞ OUR HISTORY ΞΞΞΞΞΞ
ΞΞΞΞΞΞ SERVICES ΞΞΞΞΞΞ
Contact AN PUMP for Large Capacity 20 Inch Dredging Gravel Sand Suction Pump
