river dredging sand and gravel pumps
>>pump application
>>Centrifugal Sand gravel pump Performance Data
Model |
Outlet Dia (mm) |
Speed (rpm) |
Flow (m3/h) |
Head (m) |
Max Power (kw) |
Max Solid (mm) |
6/4D-AMG |
100 |
600-1400 |
36-250 |
7-56 |
60 |
82 |
8/6E-AMG |
150 |
800-1400 |
180-540 |
12-52 |
120 |
120 |
10/8F-AMG |
200 |
500-1000 |
180-820 |
12-56 |
560 |
178 |
12/10G-AMG |
250 |
400-850 |
360-1200 |
12-60 |
600 |
220 |
14/12G-AMG |
300 |
300-700 |
700-2700 |
8-70 |
600 |
241 |
14/12TU-AMG |
300 |
300-700 |
700-2700 |
8-70 |
1200 |
241 |
10/8F-AMGH |
200 |
500-1100 |
50-900 |
20-90 |
560 |
180 |
12/10G-AMGH |
250 |
350-700 |
500-2000 |
20-80 |
600 |
210 |
16/14TU-AMGH |
350 |
250-500 |
1000-2800 |
20-80 |
1200 |
230 |
>>Sand gravel pump information
AMG/AMGH gravel pumps, Construction of this pump is of single casing connected by means
of clamp bands and wide wet passage. The wet parts are made of Ni hard and high chromium
abrasion resistance alloys.
The discharge direction of pump can be oriented in any direction of 360 degrees. This type of
pump possesses the advantages of easy installation and operation, good performance of NPSH
and abrasion resistance.
Drive types includes V-belts driven, flexible coupling driven, gear box driven, hydraulic coupler
driven, variable frequency driven, thyristor speed control etc.
AMG/AMGH gravel pump are designed for continuously handling the most difficult higher
abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable
for delivering slurries in mining, explosive sludge in metal melting, grudging in dredger and course
of river, and other fields. Type GH pumps are of high head ones
Introduction-- Coal Washing Sand Pump
1) The gravel pumps are designed for continuously handling the most difficult higher abrasive
slurries which contain too big solids to be pumped by a common pump. They are suitable for
delivering slurries in Mining, Explosive sludge in metal melting, Dredging in dredger and course
of rivers, and other fields. Type SHG pumps are of high-head ones.

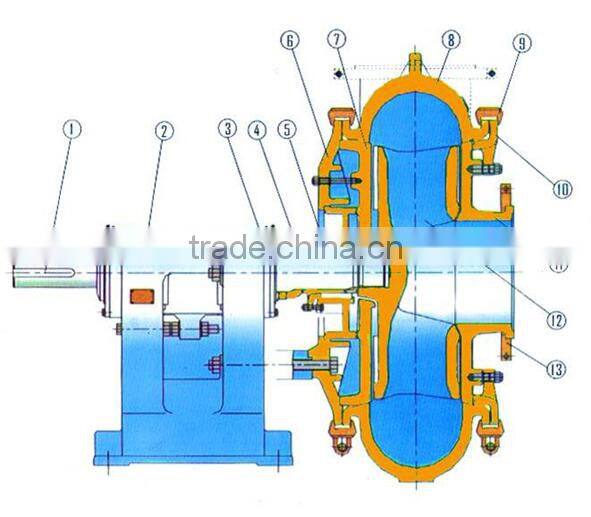

1.Shaft |
2.Frame plate |
3.Impeller stripping ring |
4.Shaft spacer |
5.Sealing assembly |
||
6.Bowl |
7.Frame plate liner insert |
8. Pump casing |
9.Adapter plate clamp ring |
10.Pump cover |
||
11.Throat bush |
12.Impeller |
13.Flange |
||||
2) Construction of this pump is of single casing connected by means of clamp bands and wide
wet-passage. The wet -parts are made of Ni-hard and high chromium abrasion-resistance alloys. The discharge direction of pump can be oriented in any direction of 360 degree.
3) This type of pump possesses the advantages of easy installation and operation, good performance of NPSH and abrasion resistance.
>>An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
