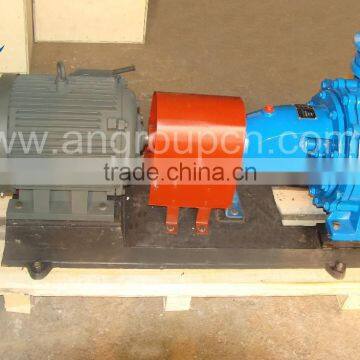

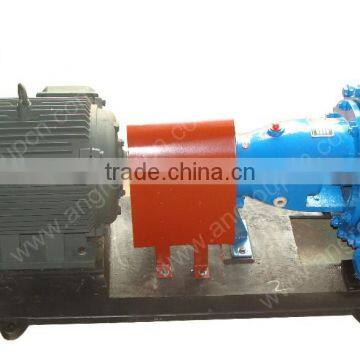

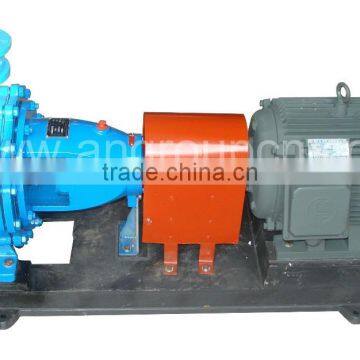

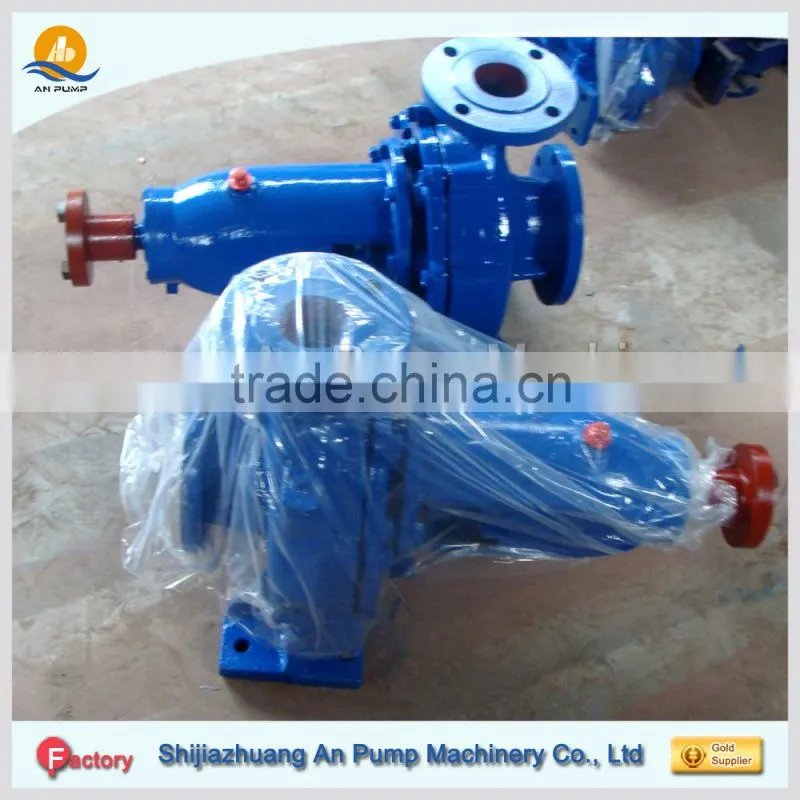

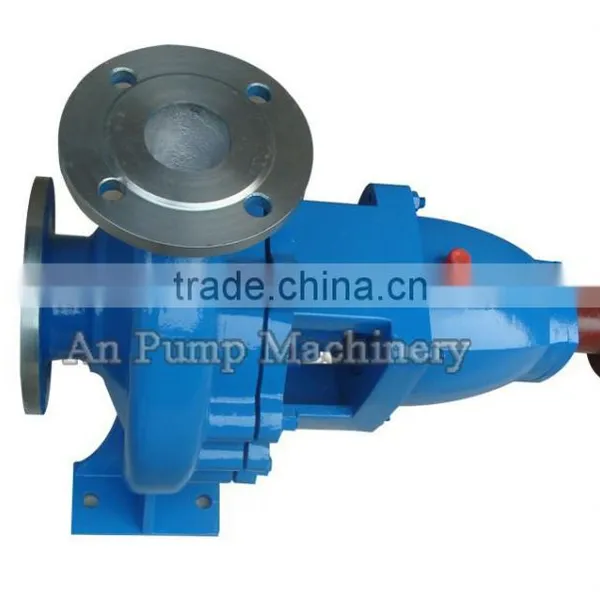

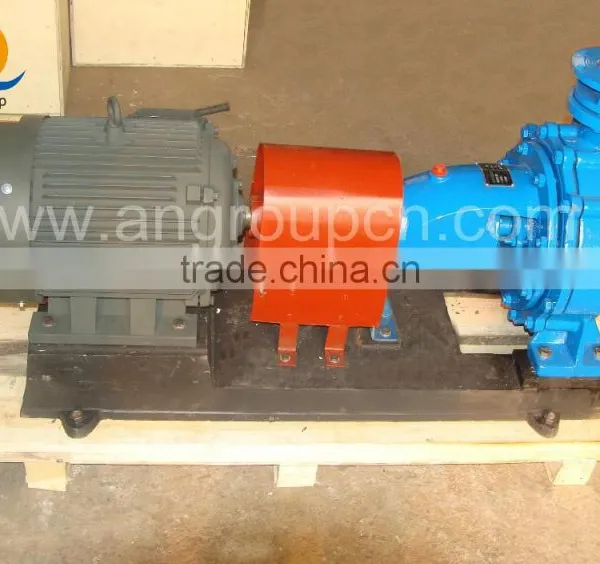

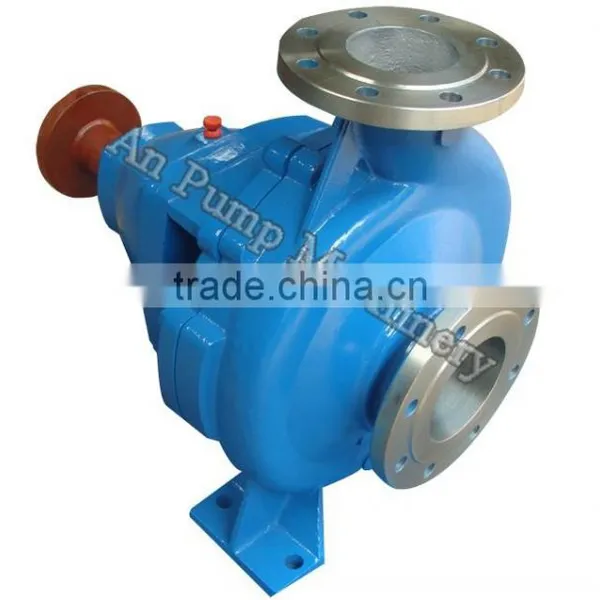

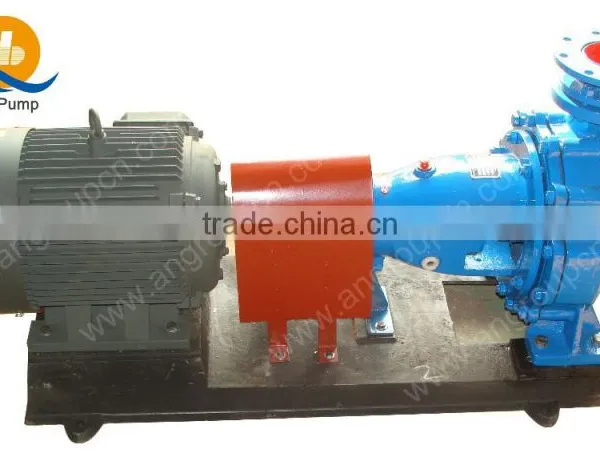

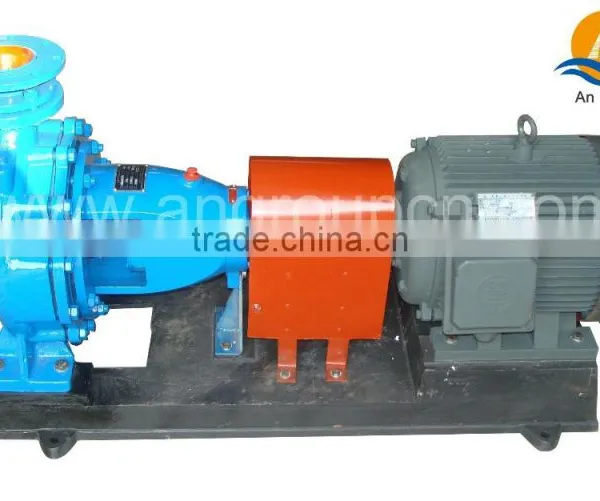

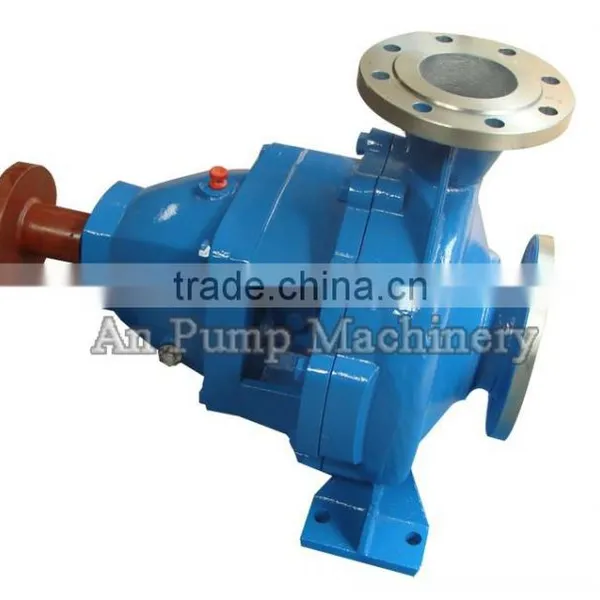

Horizontal heat power cogeneration system end suction pump
Power cogeneration system end suction pump Brief introduction
QI series pump is single-stage , single-suction centrifugal pump , designed as per the interational standard ISO2858 . It is a replacement of type BA water pump which is applicable to industrial and urban water supply and discharge as well as the agriculture irrigation . It can be used to transport liquid which have physical and chemical properties similar to clean water with a temperature not exceeding 80°C.
Power cogeneration system end suction pump Technical Data
Type |
QI |
Capacity (m3/h) |
3.5-1200 |
Head (m) |
3.7-128 |
Speed (r/min) |
1450-2900 |
NPSHr (%) |
2.0-7.5 |
Eff. (%) |
86-95 |
Weight (kg) |
33-1720 |
Dia Inlet (mm) |
50-300 |
Dia Outlet (mm) |
32-250 |

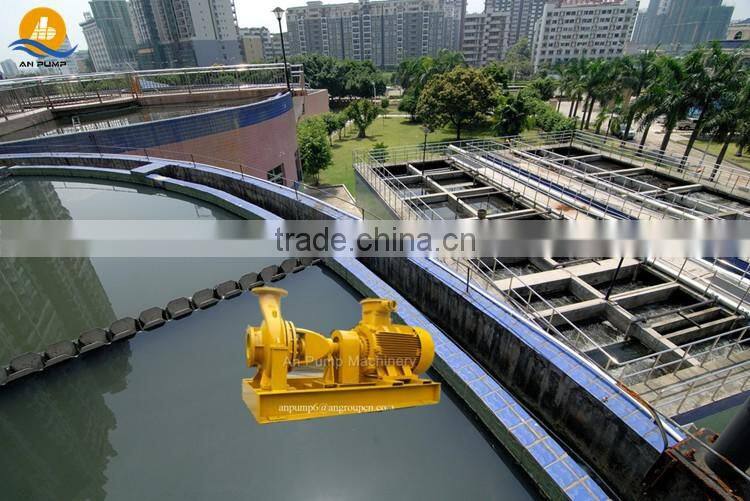

Power cogeneration system end suction pump Applications
• Irrigation
• De-watering
• Power/cogeneration
• Desalination
• Mining
• Metal manufacturing
• Petrochemical
• General industrial utility
• Water distribution / supply / treatment
Power cogeneration system end suction pump Features
Working Principle |
Centrifugal |
Main applications |
Water, oil, chemical |
Driver |
Electric motor, Diesel motor |
Power Specs |
380/415 V 3phase; 50hz/60hz etc. |
Max. permissible fluid temperature |
80°C /150°C |
Type of connection |
Flange |
Installation position |
Horizontal |
Casing/Inner parts material |
Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
Shaft seal type |
Mechanical seal |
Advantage
♦ 20 years in producing pumps
♦ Independent Design
♦ advanced technology from Australia, Canada, America
♦ OEM available
♦ Specialized Test Equipment
♦ Anti-rust treatment casting
♦ Supply reasonable suggestion for choosing pumps
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, SouthEast Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, Canada, France, America, Middle East, Asia and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision
and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Contact detail information
Lilly Sun (Ms)
Email: anpump6 @ angroupcn dot com
Online Skype ID: anpumpstar
Whatsapp No: 008615930103983
Anything thing need help, please call me any time, I will try best to help you.
