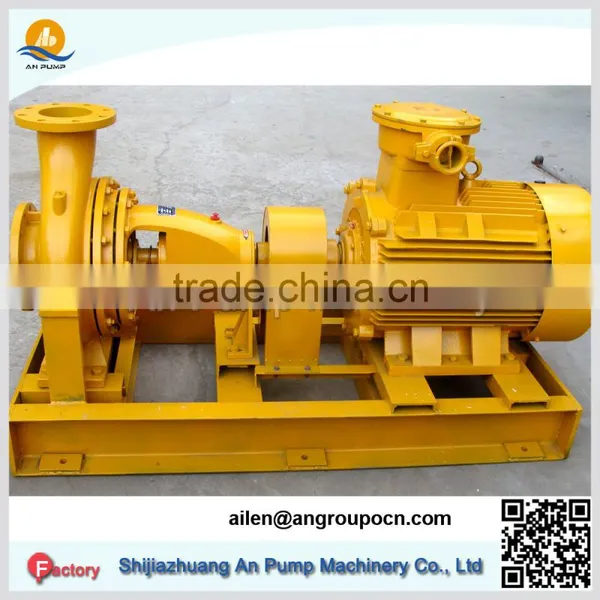

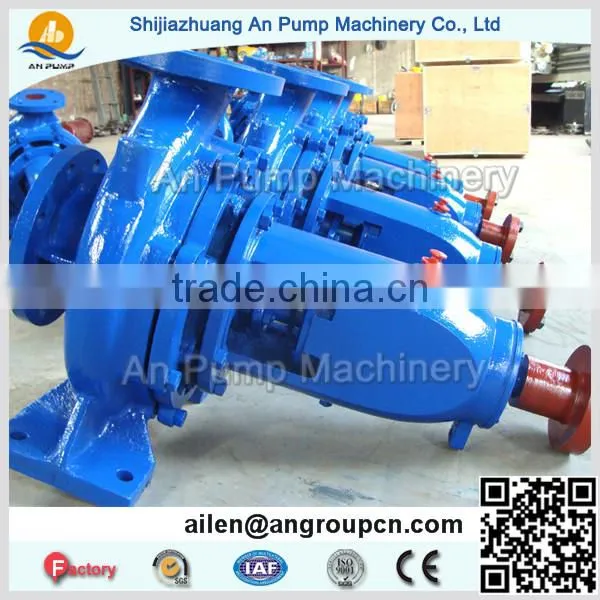

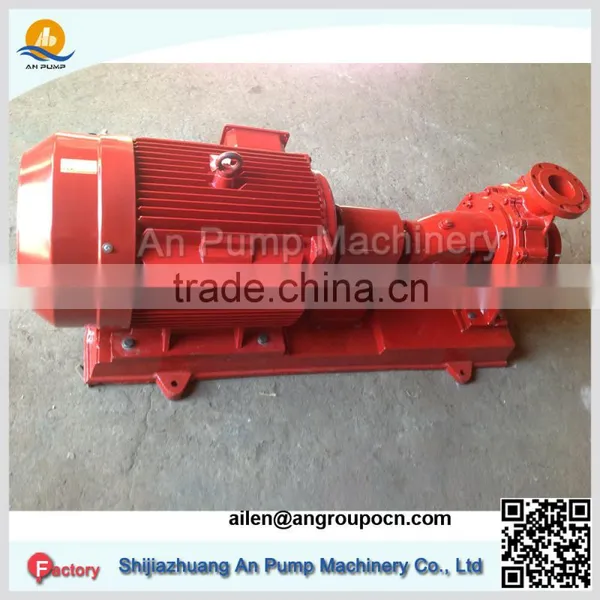

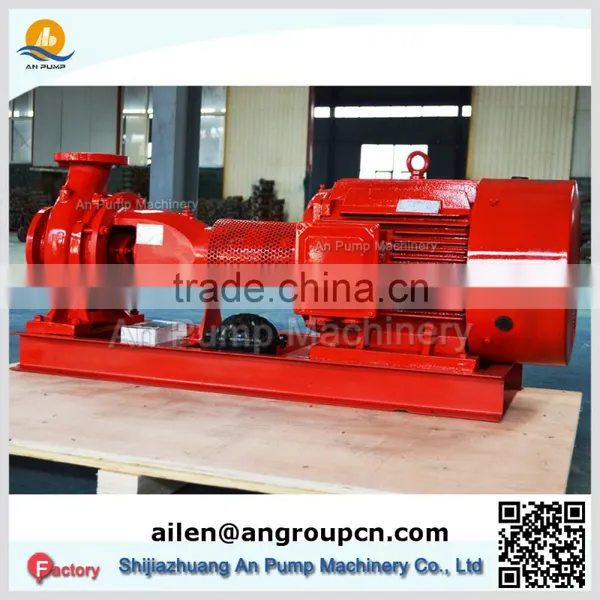

10 Inch Farm Irrigation Back Pull Out End Suction Centrifugal Pump
US$ 30 - 14,890
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
AnPump end suction pump
Model Number:
QI 10 Inch Farm Irrigation back pull out end suction centrifugal pumps
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao/Shanghai/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Chilled End Suction Water PumpUS$ 280 - 10,000MOQ: 1 Set -
Centrifugal Mini Gasoline Diesel Electric Water Pump 15hpUS$ 500 - 3,000MOQ: 1 Set
-
Horizontal End Suction Centrifugal Chilled Water PumpsUS$ 122 - 8,000MOQ: 1 Set
-
Electric Water Pump Diesel Water PumpUS$ 500 - 6,000MOQ: 1 Set
-
Shijiazhuang Industry End Suction ANSI Chemical Process PumpUS$ 300 - 1,500MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
AnPump end suction pump
Model Number
QI 10 Inch Farm Irrigation back pull out end suction centrifugal pumps
Theory
Other, Centrifugal end suction pump
Structure
Other, Single-stage end suction pump
Usage
Other, Water end suction pump
Power
Other, Electric end suction pump
Standard or Nonstandard
Other, Standard end suction pump
Fuel
Other, Diesel end suction pump
Pressure
High Pressure
Application
Other, farm irrigation end suction pump
10 Inch Farm Irrigation Back Pull Out End Suction Centrifugal Pump
Product Description
¤¤¤ OVERVIEW ¤¤¤
Overview about 10 Inch Farm Irrigation Back Pull Out End Suction Centrifugal Pump
QI(R) Centrifugal end suction pump is a single stage, single suction pump for pumping clean water and the other liquids physically and chemically similar to the clean water. This pump is suitable for public water supply and drainage duties in industries and land irrigation also in agriculture.
¤¤¤ FEATURES ¤¤¤
Features about 10 Inch Farm Irrigation Back Pull Out End Suction Centrifugal Pump
1. The temperature of liquid shall not be over 80 oC for type QI. And QIR can be to 150 oC.
2. The major components are casing, casing cover, impeller, shaft, wear ring, shaft sleeve, bearing bracket etc.
3. QI pump is divided into the casing and the casing cover from the back face of the impeller i.e. back pull-out design. QI pump has the advantages for ease of inspection and maintenance. When inspection, only dismantle the intermediate connector between pump coupling and motor coupling. The rotating element can be completely removed without disturbing the casing, suction and discharge pipeline and motor.

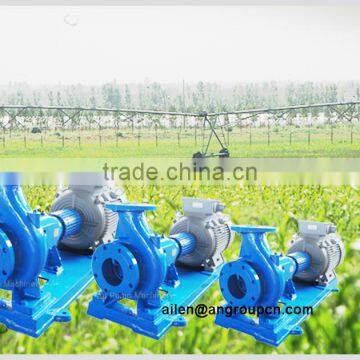

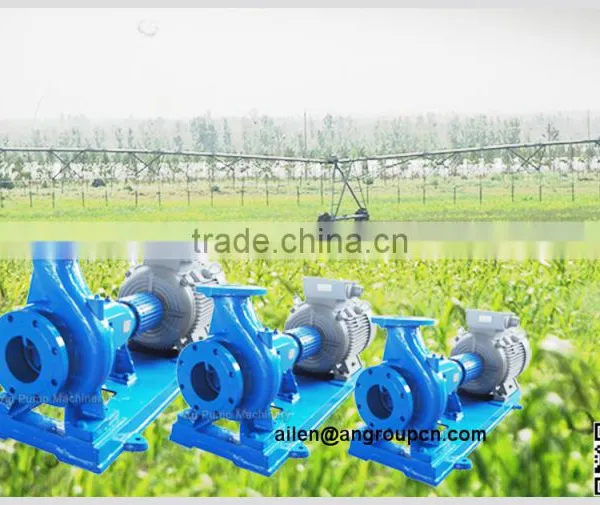

¤¤¤ APPLICATIONS ¤¤¤
Aplications about 10 Inch Farm Irrigation Back Pull Out End Suction Centrifugal Pump
Widely used in water works, agricultural irrigation, draining pump station, electric power station, air-conditioning circulation water, industrial water supply system, shipbuilding industry and general use in oil refining industry.
Like:
Cooling water
Water supply/distribution
Fire protection
Metal manufacturing
Irrigation
General industrial services
Sea water
¤¤¤ PERFORMANCE TABLE LIST ¤¤¤
Performance table about about 10 Inch Farm Irrigation Back Pull Out End Suction Centrifugal Pump
| Type | Flow (m3/h) | Head (m) | Power (KW) |
| QI50 | 3.4-15 | 3.7-68.8 | 0.55-11 |
| QI65 | 6.8-30 | 3.7-126.8 | 0.55-30 |
| QI80 | 13.6-60 | 3.6-128 | 0.55-45 |
| QI100 | 27.3-120 | 3.4-115.5 | 1.5-75 |
| QI125 | 56-240 | 8.5-132.5 | 2.2-110 |
| QI150 | 99-240 | 12.4-57.5 | 15-55 |
| QI200 | 197.7-460 | 14.8-55.8 | 30-90 |

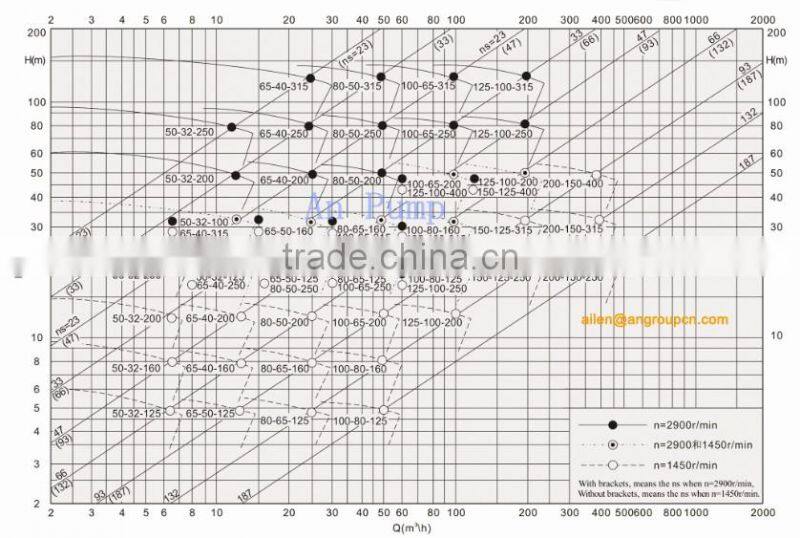

¤¤¤ PERFORMANCE CURVE CHART ¤¤¤
Performance curve chart about 10 Inch Farm Irrigation Back Pull Out End Suction Centrifugal Pump
¤¤¤ DRIVER ¤¤¤
Driver about 10 Inch Farm Irrigation Back Pull Out End Suction Centrifugal Pump
| |

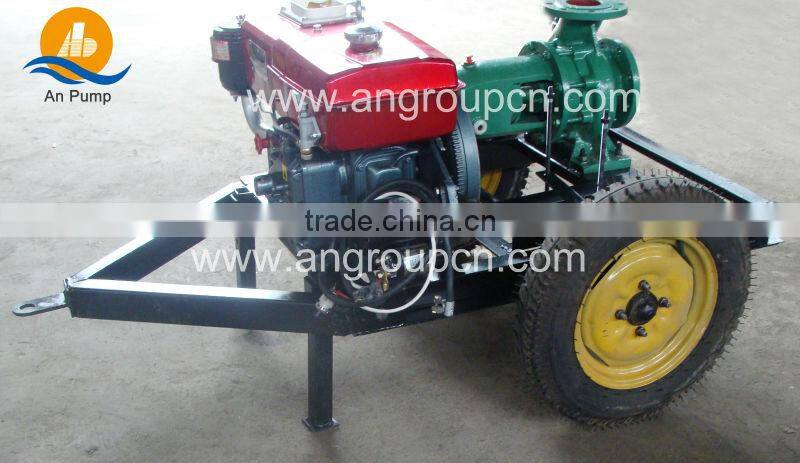

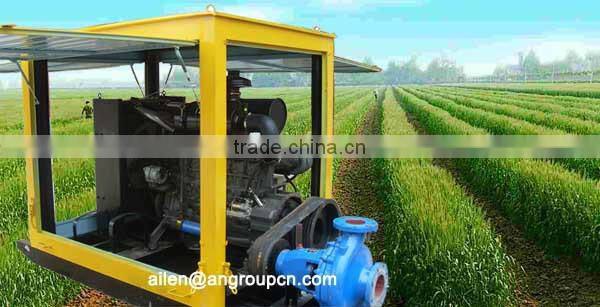

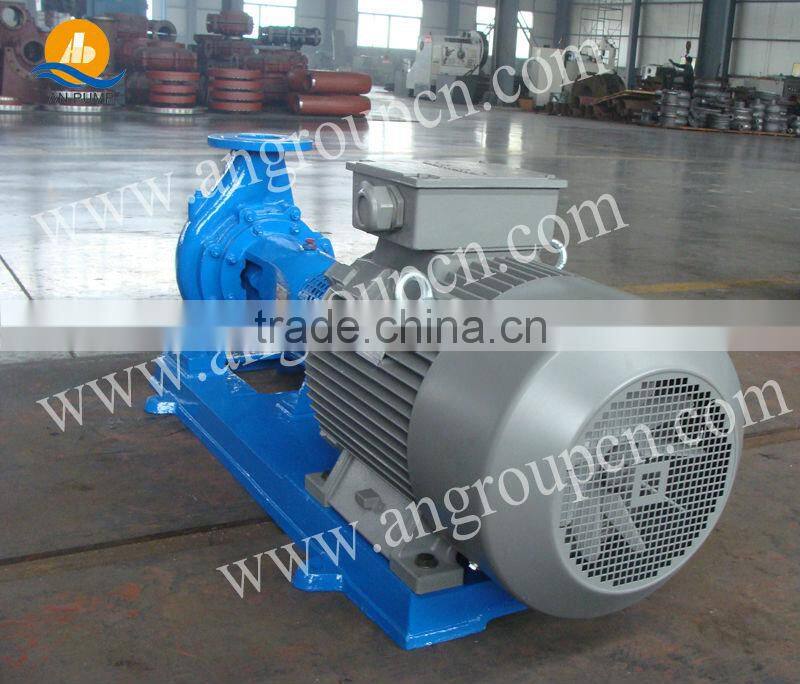

| Electrical motor | Diesel engine |

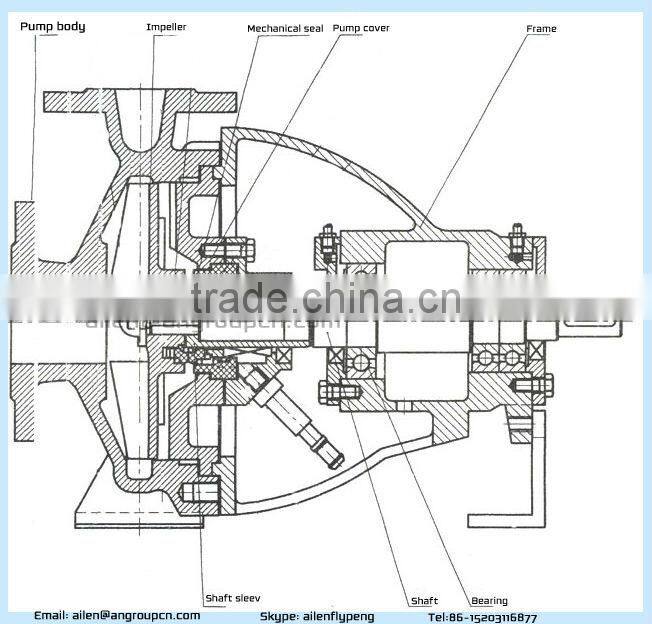

¤¤¤ CONSTRUCTION DRAWING ¤¤¤
Construction drawing about about 10 Inch Farm Irrigation Back Pull Out End Suction Centrifugal Pump
¤¤¤ CONSTRUCTION FEATURES ¤¤¤
Construction features about about 10 Inch Farm Irrigation Back Pull Out End Suction Centrifugal Pump
1. QI model pumps are the series of products designed according to ISO international standards in all industries in China. It is mainly composed of pump body, impellers, seal rings, impeller nuts, pump cove r, seal parts, intermediate support, spindle, suspended parts and so on.
2. Structural features : the pump cover is fixed on the intermediate support, and the pump cover is clamped in the middle by coupling between pump body and intermediate support. On the pump body, water is input axially and output radially. Support feet can be fixed on t he bas e directly . The suspended parts are fixed onto the intermediate support through the rabbet, and are supported onto the base by suspended frame
3. Rotation direction: the pump is driven by motor directly through a prolonged coupling, seen from the side of the motor, it rotates clockwise.
4. Spindle seal patterns: spindle seal patterns o f pump are of two types such as stuffing seal and mechanical seal. The stuffing seal is that on stuffing casein pump cover , with software stuffing for sealing, input water of a certain pressure into the stuffing case, for cooling, lubrication and cleaning on seal; mechanical seal is of two types such as single-surface mechanical seal and double-surface mechanical seal, input water of a certain pressure into the seal chamber, for washing and cooling on the abrased surfaces.
Seal patterns of pump are of stuffing seal or mechanical seal, according to users' requirements, in a same time, seal chamber sizes and shaft gland patterns of other structures according to ISO3069 as required, are allowed, such as mechanical seals of corrugated pipes, assistant impeller seals and so on.
Packaging & Shipping
¤¤¤ PACKAING & SHIPPING ¤¤¤
Packing and shipping ways about 10 Inch Farm Irrigation Back Pull Out End Suction Centrifugal Pump
Certifications
¤¤¤ CERTIFICATIONS ¤¤¤
Certification about 10 Inch Farm Irrigation Back Pull Out End Suction Centrifugal Pump
AN PUMP Service
¤¤¤ OUR SERVICES ¤¤¤
Our services about 10 Inch Farm Irrigation Back Pull Out End Suction Centrifugal Pump
Offer pump solution, design, manufacturing, and after-sales service.
Service | Specification |
1. Selection | Send us working data (medium, head, flow rate...) |
2. OEM/ODM | Please show us the pump design drawing |
3. Process design | Offer process design as working condition. |
