Specifications
1.the machine is easy to operate2.it is environmental protection
3.it only need a small workshop
Paper egg tray machine supplier in china
Tel: 86-311-8205285 Mob: 86-15131163806
Shijiazhuang Haichuan Machinery The first manufacturer to sell and produce egg tray machine in Shijiazhuang CIty . We have the strong scientifc research in improving the prodcution process . Now Our technical team can make high effciency ,save enery egg tray machine . And The most improtant , we not only have the machine product factory and workshop , but also we have the egg tray production line . You would learn the egg tray making process , and also we would find the machine problems , and improve the egg tray machine quality .
Feature of egg tray machine :
egg tray machine is absorbing paper pulpthe raw material, on the surface of mould by vacuum to get a variety of shape and ratio of wet and dry by regulating time. After such working procedure as transferring mould, releasing mould to complete paper tray production. Our egg tray machine selecting of high quality electronic devices and pneumatic components,high performance and long service life.
Advantage of egg tray machine :
The raw material is for the molded pulp products is waste paper,corrugated paper,waste newspaper,magazine, the scrapes from color printing plants and waste paper boxes.The raw materials are free pollution, can be recycled. and easy to find.
Application of egg tray machine :
1. Middle size farm.
2. Small workshop available.
3. High labor cost countries.
4.Water value sensitive countries.
5.It can produce egg carton, egg box, egg tray, bottle tray, agricultural train seeding cup, industrial production packing. The equipment is best-selling nation and is sold abroad.
1. pulp molding system: hydraulic pulper, High-frequency vibration sieve frame, Pulp pump, Strengthening of self-priming pump, Agitator, Control cabinet for pulping system
2. forming system: Rotary forming machine, Molds, Roots vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, White Water pump, High-pressure water pump, Refiner machine, Power cabinet for forming system
3. drying system: Conveyor, Blower, induced fan, Burner, Bellows, etc
4. packing system: baling machine
Type
| Mold | Capacity | Power | Plant area | consumption | Labor |
HCS01
| 4 | 1000pcs/h | 33.5kw | More than 300 square meter | 2ton/24hours (coal) | 3-4peoples |
HCM01 | 16
| 2000-2500pcs/h | 60kw | More than 500 square meter | 2.2ton/24hours (coal) | 4-6 peoples |
HCL01
| 32 | 3000-4000pcs/h | 116kw | More than 600 square meter | 2.5ton/24hours (coal) | 4-6 peoples |
Advantage: 1.high efficiency 2. low failure rate 3.using less labor 4. simple operation

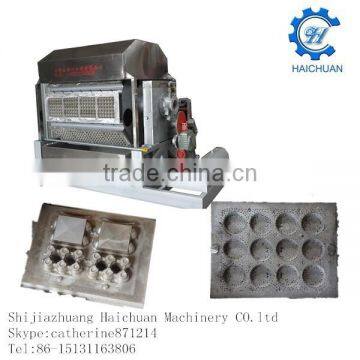

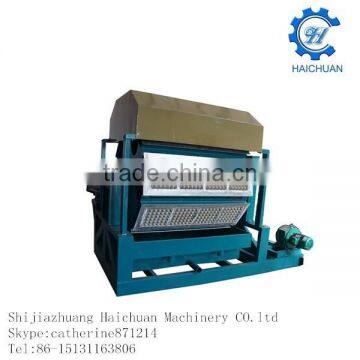

Machinery of egg tray machine :
Dryer of steel dryer :
Egg tray machine production :
change the molds to make another inner packing :
Egg tray machine progress :
The packing of Haichuan egg tray machine in china :
1.Assistance to build factory or your project
2.Repairing and maintenance if any problem occur in the warranty
3.Installation and employee training
4.Spare and wearing parts for free or with big discount
5.Any feedback of machines can be told us, and we will try our best to support you
1. How many kind of types of molding system?
A:There are three types molding system, HCS01 has one side with 4 pieces molds, HCM01 has four sides with 16 pieces molds, HCL01 has 8 sides with 32 pieces molds. the mold is changeable according to customer's requestion.there also have many kind of shapes for eggs, shoes, wine, electric product.
2. How many dryer methods?
A:There are three drying types: drying by natural wind, drying by brick coneyor, drying by metal squared dryer
