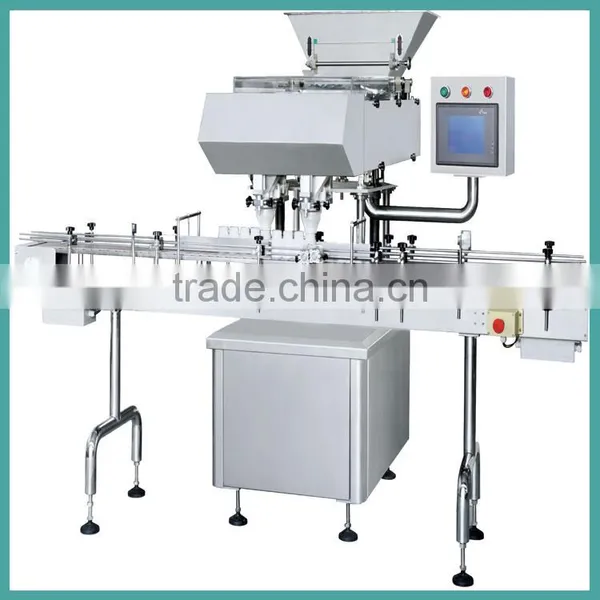

CZG80/16 Fully Automatic High Speed Tablet Capsule counting machine
CZG80/16 Can counting 0~6000 tablets per minute
Number of feeding tracks is 16
NOTE: capacity data is based on φ5.5mm tablet, 50 tablets per bottle
DESCRIPTION
1. This product is applicable in pharmaceutical, food, health-care industry; it can count accurately and fill round tablet, shaped tablet, capsules, transparent soft gelatin capsules, pill or other solid drug or granular filling into container.
2. High speed. This product has 16 counting channels, 1 filling funnel; the maximum speed reaches 60 bottles per min.
3. The machine would give auto-alarm when the bottles are insufficient or the bottles blocked. The machine would pause there. When the problems are solved, the machine can be normal work status again. It doesn't need certain people to watch it at any time.
4. Key pneumatic parts, especially integrated solenoid valve and cylinder for closing door are from Japan CKD, to ensure filling accuracy
5. You can set the quantity of the drugs (15~9999) on the touch screen. This can monitor the dropping status of drugs on the tracks at any time.
Filling tolerance: ±1 drug in 1-3 bottles every thousand bottles
Advanced international control technology, PLC from Japan, HMI is easy to operate
According to GMP regulation, parts in contact with medicine material are made of AISI316 stainless steel, machine body made of AISI304 stainless steel. Easy to disassemble, convenient to clean and maintain
The machine has several protection devices, during production, no-man watch is possible

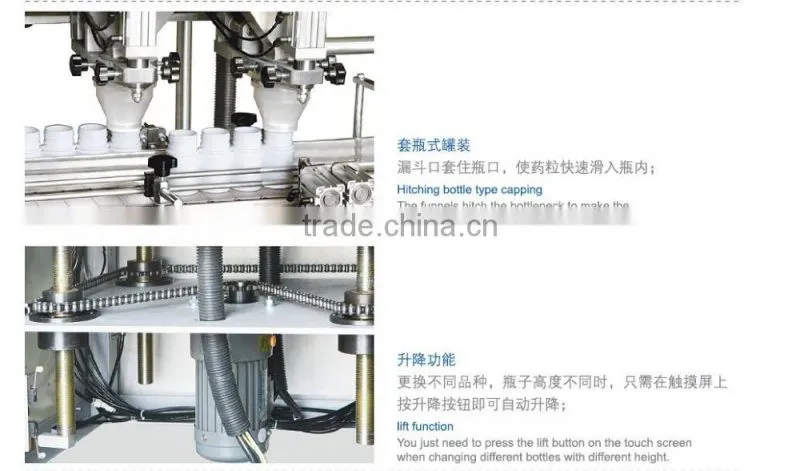

You just need to change the lifting buttons on the touch screen when changing different height bottles

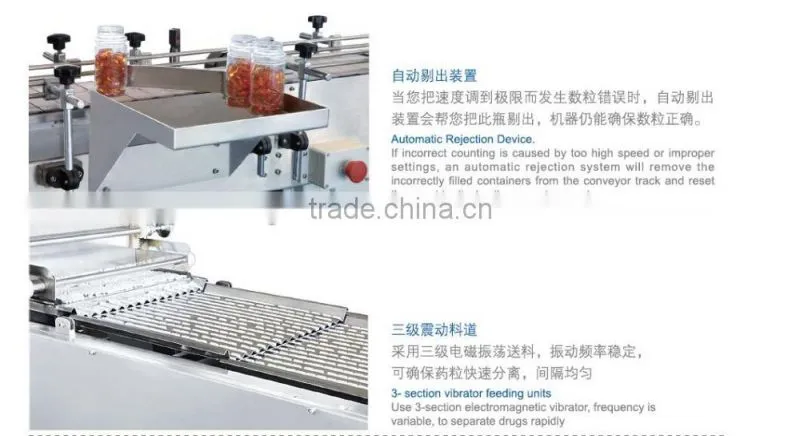

Feeding unit
Use 3-sep electromagnetic vibrator, frequency is variable, to separate granules rapidly
The 3-sep vibrators avoid granule overlapping
3-step dust collection design, the dust is removed when granules dropped, to avoid dust contamination
Counting unit
Use IR (infrared ray) dynamic scan technology, good counting accuracy
The IR scan eye has automatic light compensation function; limit warning & shutdown function
|
CZG80/16 |
Dimension: |
1160×2400×1670mm |
speed( tablets/min): |
0--6000 |
Net weight: |
500 Kg |
Filling quantities per bottle |
15~9999 |
tablets specification: |
Thickness: 3~10mm Dia.: 3.~15mm Length: 3~25mm |
Number of tracks: |
16 |
Bottle size:: |
Dia. φ30~φ75mm Height: 40~250mm |
Hopper cubage: |
40L |
Compressed air : |
0.5Mpa |
Conveyor length: |
2400mm |
Number of vibrators: |
3 |
Installing and Commission:
We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging&Boarding expenses shall be payable by you. In case the stay of our technician, additional service fee will be charged .
Warranty period:
One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
