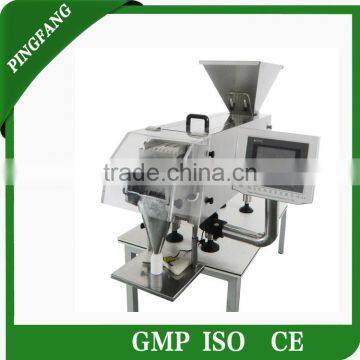

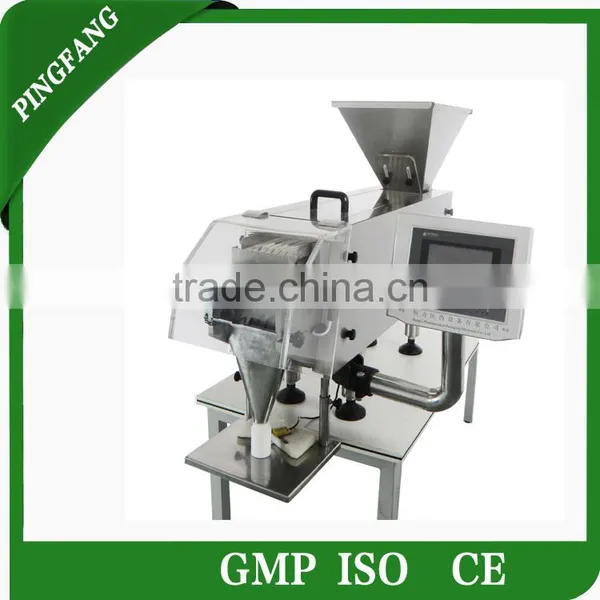

DJL-4Z Small Desktop Tablet/capsule/pill/soft Capule Counting Machine for Big Bottle

DJL-4Z Small Desktop Tablet/capsule/pill/soft Capule Counting Machine for Big Bottle photo-1
DJL-4Z Small Desktop Tablet/capsule/pill/soft Capule Counting Machine for Big Bottle photo-2
DJL-4Z Small Desktop Tablet/capsule/pill/soft Capule Counting Machine for Big Bottle photo-3
DJL-4Z Small Desktop Tablet/capsule/pill/soft Capule Counting Machine for Big Bottle photo-4
US$ 5,100 - 5,450 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
PF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name PF
Model Number DJL-4Z
Usage Other, tablet/capsule/pill/soft capule
Production Capacity 10-30bottles/per bottle
Voltage 220V/50HZ
Power(W) 0.6kw
Weight 115kg
Dimension(L*W*H) 610*1280*780mm
Certification GMP, ISO,
Warranty 1 Year
After-sales Service Provided No overseas service provided

DJL-4Z small desktop tablet/capsule/pill/soft capule

counting machine for big bottle



Features

1) Wide applicability

Used for tablets (including abnormal tablets), capsules, gels (including abnormal gels, transparent gels and opaque gels) pills and most solid granules.

2) Anti-dust

Using our own original high anti-dust sensor technology, the machine works accurately with good stability in heavy dust conditions.

3) Protect materials from harm

Feeding evenly with quiver, special patent filling part, no breakage of the material.

4) Avoid the materials jam

Hopper mouth of the special structure, to prevent the materials jam, small mouth bottle can quickly bottling.(Optional)

5) Detection function

No bottle will not count and fill. Automatically remove bottles of filling abnormalities and a certain size broken tablets. Self-diagnose errors and stop working to make alarm at errors.




Technical Parameters

Project

DJL-4Z

Application

00-5# capsules, soft gels, <Ø22 normal tablets, <Ø20 pills

special shape tablets, coating tablets,and some other solid granules

Capacity

          For 6mm tablet example , it can count about 1500 tablets per minute

Working Range

Adjustable from 1-9999 per bottle

Power supply and consumption

220V/50HZ 0.6kw

Size

610*1280*780mm

filling error

≤ 2‰ bottles

Material

SS316+SS304

Control System

MCU

Pressed Air Supply

0.6 Mpa

Weight

115kg





Configuration

Name

Producer

Photoelectric sensors

microchip chip and Taiwan electronic elements

Counting photoelectric sensor system

Optical components is from Taiwan ,and the microchip chip is from U.S., then developed and produced by our company.

Leakage protection

Schneider

Control Panel

Using the microchip chip is from U.S , developed and produced by our company

Interface

HITECH,Color touch screen



DJL-4Z small desktop tablet/capsule/pill/soft capule counting machine for big bottle



Raw Matieral:

DJL-4Z small desktop tablet/capsule/pill/soft capule counting machine for big bottle

DJL-4Z small desktop tablet/capsule/pill/soft capule counting machine for big bottle





Packaging & Shipping





Factory show:

DJL-4Z small desktop tablet/capsule/pill/soft capule counting machine for big bottleDJL-4Z small desktop tablet/capsule/pill/soft capule counting machine for big bottle



Our Services



Installing and Commission:

We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging&Boarding expenses shall be payable by you. In case the stay of our technician, additional service fee will be charged .





Warranty period:

 One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
