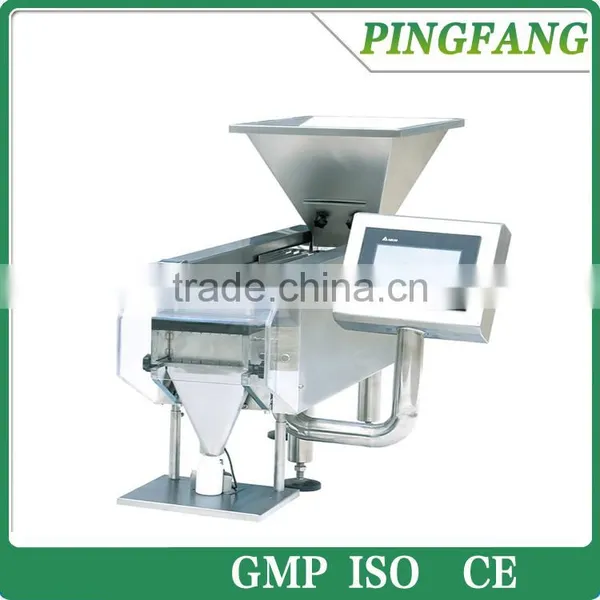

Cheapest Price JF - B8 Small Desktop Tablet, Capsule, Pill and Soft Capule Counting Machine

Cheapest Price JF - B8 Small Desktop Tablet, Capsule, Pill and Soft Capule Counting Machine photo-1
US$ 5,800 - 8,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
PF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name PF
Model Number DJL-4Z
Usage Other, tablet/capsule/pill/soft capule
Production Capacity 10-30bottles/per bottle
Voltage 220V/50HZ
Power(W) 0.6kw
Weight 115kg
Dimension(L*W*H) 610*1280*780mm
Certification GMP, ISO,
Warranty 1 Year
After-sales Service Provided No overseas service provided

cheapest price JF - B8 small desktop tablet, capsule, pill and soft capule counting machine





Main Function

The machine adopts the most advanced high resistance dust electronic counting technology. For tablet (including special-shaped pieces), hard capsule, soft capsule (various shapes transparent and opaque) pills and other size range in a 3-12 mm solid particle counting system. Bottles, boxes, bagging. Full compliance with GMP requirements, particularly applicable to research institutions, hospitals, new small pharmaceutical factory, health care products factory



Main features

(1) Good compatibility, high accuracy, wide applicable scope, can for tablet (including different pieces), capsule, soft capsule (transparent, opaque) pills to count bottling

(2)Applicability, using the company's original high resistance dust photoelectric sensing technology, in the case of high dust can work stable

(3)Vibration cutting unique patent agencies blanking not damage

(4)High intelligence :It has various alarm and control functions like no bottle no count, check fault automatically and so on.

(5)Automatic operation, and the upper and lower process intelligent spreading, coordinated, the need of personnel, to save human

(6)Cover an area of an area small, low use cost

(7)Easy to replace the varieties, remove the clear without any tools, convenient and quick

Structure compact, no high prices of wearing parts, low maintenance cost




Technical Parameters

Project

JF-B8

Application

00-5# capsules, soft gels, <Ø5.5~12 normal tablets, <Ø3-12 pills

special shape tablets, coating tablets,and some other solid granules

Capacity

          For 6mm tablet example , it can count about 1500 tablets per minute

Working Range

Adjustable from 1-9999 per bottle

Power supply and consumption

220V/50HZ 0.6kw

Size

1400*1400*1560mm

filling error

≤ 2‰ bottles

Material

SS316+SS304

Control System

MCU

Pressed Air Supply

0.6 Mpa

Weight

220kg





Configuration

Name

Producer

Photoelectric sensors

microchip chip and Taiwan electronic elements

Counting photoelectric sensor system

Optical components is from Taiwan ,and the microchip chip is from U.S., then developed and produced by our company.

Leakage protection

Schneider

Control Panel

Using the microchip chip is from U.S , developed and produced by our company

Interface

HITECH,Color touch screen



cheapest price JF - B8 small desktop tablet, capsule, pill and soft capule counting machine

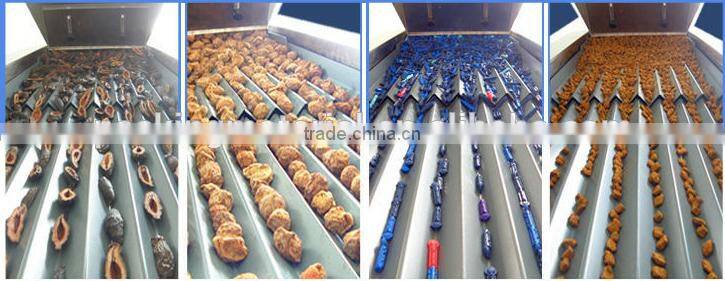

Raw Matieral:

cheapest price JF - B8 small desktop tablet, capsule, pill and soft capule counting machine

cheapest price JF - B8 small desktop tablet, capsule, pill and soft capule counting machine





Packaging & Shipping

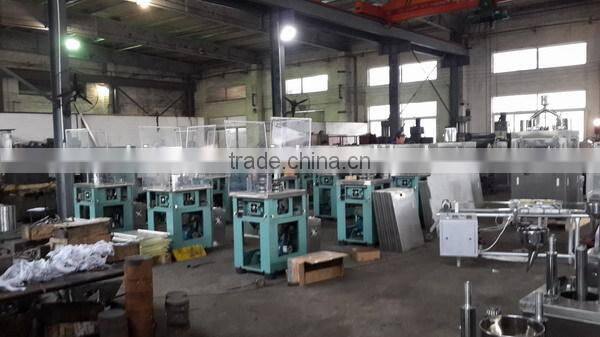

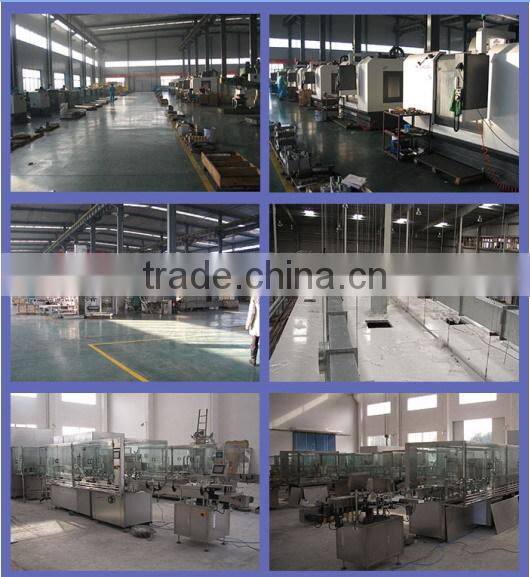

Factory show:

cheapest price JF - B8 small desktop tablet, capsule, pill and soft capule counting machinecheapest price JF - B8 small desktop tablet, capsule, pill and soft capule counting machine



Our Services



Installing and Commission:

We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging&Boarding expenses shall be payable by you. In case the stay of our technician, additional service fee will be charged .





Warranty period:

 One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
