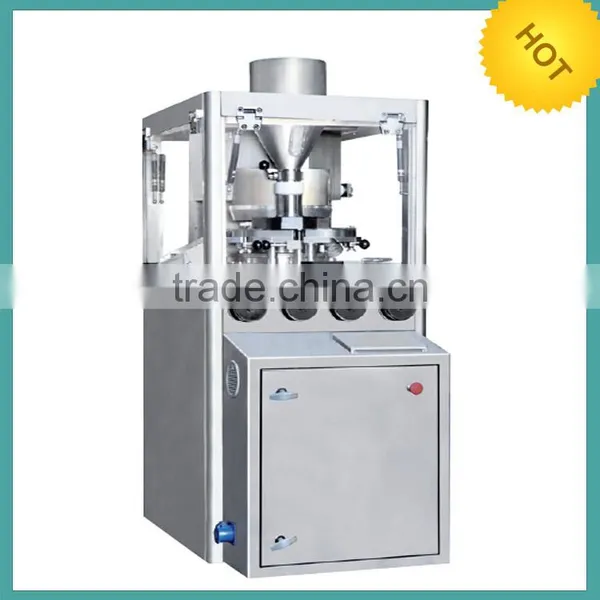

ZPT Series Economic-type high speed tablet press
1. technique paramete
Date / Model | GZP-16 | GZP-23 | GZP-30 |
ZPT-16 | ZPT-23 | ZPT-30 | |
No. of stations | 16 | 23 | 30 |
Tooling type | D | B | BB |
Output range (Tablets/h) | 21000-105000 | 30000-151000 | 39000-198000 |
Rotation speed range(rpm) | 22-110 rpm | ||
Main pressure | 100KN | ||
Pre-pressure | 14KN | ||
Max tablet diameter | Φ25mm | Φ16mm | Φ13mm |
Max length of irregular tablet | 25mm | 19mm | 16mm |
Diameter of die | Φ38.1 | Φ30.18 | Φ24 |
Max. filling depth | 20mm | 20mm | 16mm |
Diameter of punch | Φ25.35mm | Φ19mm | |
Length of punch | 133.6mm | ||
Pitch circle diameter | 265mm | ||
Main motor power | 5.5kw | ||
Weight | 1000kg | ||
Dimension | 700x1000x1750mm | ||
2.Common Features
Adopts PLC control with auto protective function.
Touch screen operation. Operation menu is easy to understand
Force-feeding unit with a good applicability to powder
Central auto lubrication system
Main and pre-pressing, tablets formed twice.
3.Unique features of GZP series
Auto compensation of powder
Monitoring pressure of each punches and displays the pressure on the touch screen. There are two chutes for qualified tablets and defective tablets. Defective tablets can be rejected from one chute .
Pre-press wheel and main press wheel are sustained by hydraulic system. The hydraulic system will act as a buffer and protector while the pressure is high.
Force-feeding system is capable to increase the feeding ability and prevent thick granules separating from fine granules effectively.
All the parts are easy to be fixed, disassembled and cleaned.
4. Company introduce:
Our company is professional to do and export pharmaceutical machines, pharmaceutical packing material and others with a good reputation in the industry of China's pharmaceutical machinery
Our product include:
1). Kinds of drugs machinery: tablet press machine, capsule filling machine, blister packing machine, capsule filling machine, tablet coating machine, tablet/capsule counting production line, liquid filling machine, powder filling machine, liquid/powder/ cream packing machine and so on.
2). Tester equipment in laboratory
3). Packing material: empty capsule, PVC, Aluminum foil, glass bottle, plastic bottle, laminated aluminum foil and so on
5. Factory and exhibition photos:
Canton Fair show
Working room
6. Relation spare parts:
7. Other machines:
8. Pill samples:
9. Certificate
