Home > Manufacturing & Processing Machinery > Pharmaceutical Equipment & Machinery > Pharmaceutical Tablet Equipment > GZPY Series Automatic High-speed Tablet Press (Exchangeable Punch Turret)

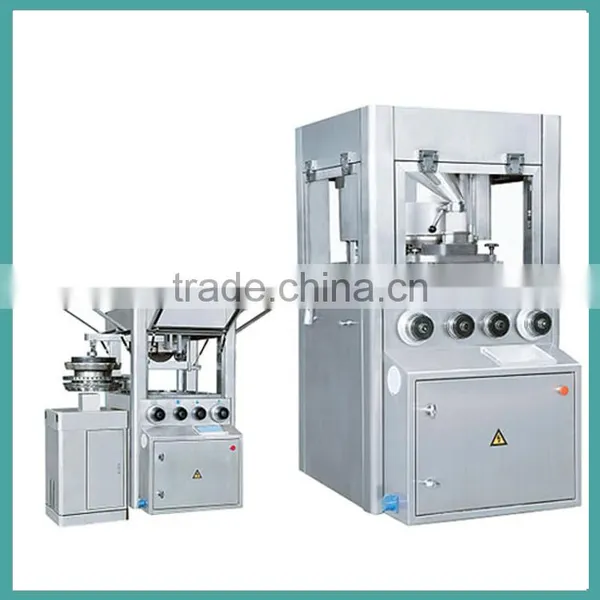

GZPY Series Automatic High-speed Tablet Press (Exchangeable Punch Turret)

US$ 66,000 - 73,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

Contact Supplier Request Quote Chat Now

Huizhou Pingfang Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port China( Mainland)

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shanghai, China

Brand Name PF

Model Number GZPY

Type Other, high speed tablet press

Production Capacity 59000-297000pc/h

Max. Pressure(KN) 100KN

Max. Tablet Thickness(mm) 8-mm

Max. Tablet Diameter(mm) 25mm

Voltage 380V

Power(W) 7.5kw

Weight 2800kg

Dimension(L*W*H) 1175*950*1920mm

Certification CE/ISO

After-sales Service Provided Engineers available to service machinery overseas

GZPY series Automatic High-speed Tablet Press (Exchangeable punch turret)

1. technique paramete

Model	GZPY-30	GZPY-37	GZPY-45
No. of stations	30	37	45
Tooling type	D	B	BB
Output range(Tablets/h)	39000-198000	48000-244000	59000-297000
Rotation speed range (rpm)	22-110
Main pressure	100KN
Pre-pressure	20KN
Max tablet diameter	Φ25mm	Φ16mm	Φ13mm
Max length of irregular tablet	25mm	19mm	16mm
Diameter of die	Φ38.1mm	Φ30.18mm	Φ24mm
Max. filling depth	20mm	20mm	16mm
Diameter of punch	Φ25.35 mm	Φ19mm
Length of punch	133.6 mm
Pitch circle diameter	420mm
Main motor power	7.5kw
Weight	2800kg
Dimension	11759501920mm

2. Application:

Meets GMP requirements can press round tablets, engraved tablets and irregular tablets. Available for pharmaceutical factory, food and chemical industries.

3. Features:

A. Central lubrication system, a perfect combination of the main machine and control system

B. Advanced automatic control system exactly monitored the whole process in a series of working situation such as rotation speed, output, weight of tablets, accuracy and malfunction etc.

C. PLC operation system. Operation menu is easy to understand.

D. Tablets formed Twice by main pressing and pre-pressing.

E. Force–feeding device controls the flow of powder and ensure the accuracy of feeding.

F. Imported hydraulic pump unit sustains the main pressure and pre-pressure, pressing stably with low noise, and the hydraulic system will act as a buffer and protector while the pressure is over high.

G. Punch turret of 45, 37 and 30 stations can be fast replaced on one machine to achieve economical and practical purpose

H. Punch turret can be removed easily and cleaned easily.

4. Company introduce:

Our company is professional to do and export pharmaceutical machines, pharmaceutical packing material and others with a good reputation in the industry of China's pharmaceutical machinery

Our product include:

1). Kinds of drugs machinery: tablet press machine, capsule filling machine, blister packing machine, capsule filling machine, tablet coating machine, tablet/capsule counting production line, liquid filling machine, powder filling machine, liquid/powder/ cream packing machine and so on.

Welcome to scan our website:

2). Tester equipment in laboratory

3). Packing material: empty capsule, PVC, Aluminum foil, glass bottle, plastic bottle, laminated aluminum foil and so on

5. Factory and exhibition photos:

Canton Fair show

Working room

6. Relation spare parts:

7. Other machines:

8. Pill samples:

9. Certificate
