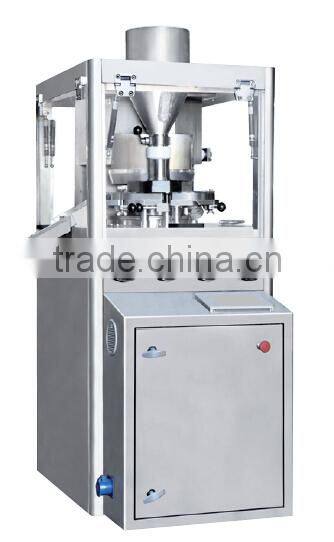

GZP Series (265) Automatic High-speed Tablet Press for Medicine Tablet
GZP Series (265) Automatic High-speed Tablet Press for Medicine Tablet
1.Rorary tablet press machine
2. Usage: pahrmaceutical, chemical, food
3. Dia of tablet: 25mm/16mm/13mm
4. Production capacity:39000~198000 pcs/h
| Packaging Details: | packaging according to export standard |
|---|---|
| Delivery Detail: | 30 days |
The common Features pof GZP Series and ZTP series:
1 Adopts PLC control with auto protective function
2 Touch screen operation. Operation menu is easy to understand
3 Force-feeding unit with a good applicability to powder
4 Central auto lubrication system
5 Main and pre-pressing, tablets formed twice.
Unique features of GZP series
1 Auto compensation of powder
2 Monitoring pressure of each punches and displays the pressure on the touch screen. There are two chutes for qualified tablets and defective tablets. Defective tablets can be rejected from one chute .
3 Pre-press wheel and main press wheel are sustained by hydraulic system. The hydraulic system will act as a buffer and protector while the pressure is high.
4 Force-feeding system is capable to increase the feeding ability and prevent thick granules separating from fine granules effectively.
5 All the parts are easy to be fixed, disassembled and cleaned.
Date / Model | GZP-16 | GZP-23 | GZP-30 |
ZPT-16 | ZPT-23 | ZPT-30 | |
No. of stations | 16 | 23 | 30 |
Tooling type | D | B | BB |
Output range (Tablets/h) | 21000-105000 | 30000-151000 | 39000-198000 |
Rotation speed range(rpm) | 22-110 rpm | ||
Main pressure | 100KN | ||
Pre-pressure | 14KN | ||
Max tablet diameter | Φ25mm | Φ16mm | Φ13mm |
Max length of irregular tablet | 25mm | 19mm | 16mm |
Diameter of die | Φ38.1 | Φ30.18 | Φ24 |
Max. filling depth | 20mm | 20mm | 16mm |
Diameter of punch | Φ25.35mm | Φ19mm | |
Length of punch | 133.6mm | ||
Pitch circle diameter | 265mm | ||
Main motor power | 5.5kw | ||
Weight | 1000kg | ||
Dimension | 700x1000x1750mm | ||

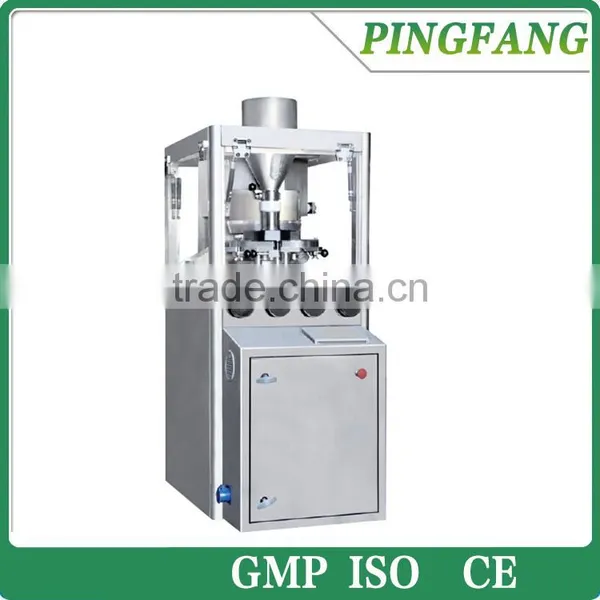

Machine Show
Samples
