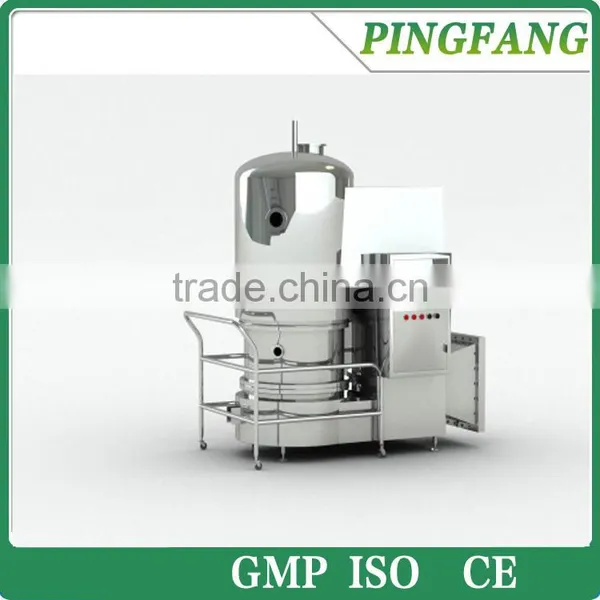

GF Series High Efficiency Fluidized Driying machine with good quality for sale
1. Application:
This machine is used for boiled drying of granulate material with site of 0.16mm, and is applicable for quick drying of wet granulate and powdery material of finished products and intermediate(semi-finished products) in such trades ad pharmacy, foodstuff, light industry and chemical etc.
2. Features:
Under the draught of fan ,natural air passes through purification cabinet and heater, and form high speed airflow in small hole of material bed board, which makes the material into boiled(fluidized)status and then makes the moisture(or solvent)in material vaporized(or volatilized)quickly, thus realizing the purpose of drying. Stirrer is designed inside hopper, material boiling is free of dead angle, with uniform and quick drying, drying time can be set up freely according to material characteristic, and normally at 10-30min.
3. Technical Parameters:
| Model | GFG-60 | GFG-100 | GFG-120 | GFG-150 | GFG-200 | GFG-300 | GFG-500 | |
|---|---|---|---|---|---|---|---|---|
| Volume of hopper | 200L | 300L | 400L | 500L | 650L | 1000L | 1500L | |
| Production capacity | 30-60kg/batch | 50-100kg/batch | 60-120kg/batch | 70-150kg/batch | 100-200kg/batch | 150-300kg/batch | 200-500kg/batch | |
| Air-in temperature | 50-100℃ | 50-100℃ | 50-100℃ | 50-100℃ | 50-100℃ | 50-100℃ | 50-100℃ | |
| Fan | Blast | 2576m³/h | 3488m³/h | 3619m³/h | 5114m³/h | 6032m³/h | 7766m³/h | 10800m³/h |
| Air pressure | 5639Pa | 5080Pa | 7109Pa | 5869Pa | 7610Pa | 9500Pa | 9500Pa | |
| Power | 7.5kw | 11kw | 15kw | 10.5kw | 22kw | 30kw | 45kw | |
| Sitrrer | Rotary speed | 11r/min | 11r/min | 11r/min | 11r/min | 11r/min | 11r/min | 11r/min |
| Motor | 0.55kw | 0.55kw | 0.55kw | 0.75kw | 0.75kw | 1.1kw | 1.5kw | |
| Electric heating | Power | 54kw | 63kw | 63kw | 72kw | 81kw | 99kw | 117kw |
| Steam | Pressure | 0.4mpa | 0.4mpa | 0.4mpa | 0.4mpa | 0.6mpa | 0.6mpa | 0.6mpa |
| Consumption | 140kg/h | 170kg/h | 210kg/h | 240kg/h | 280kg/h | 366kg/h | 451kg/h | |
| Compressed air | Pressure | 0.5mpa | 0.5mpa | 0.5mpa | 0.5mpa | 0.5mpa | 0.5mpa | 0.5mpa |
| Consumption | 0.6m³/h | 0.6m³/h | 0.6m³/h | 0.9m³/h | 0.9m³/h | 0.9m³/h | 0.9m³/h | |
| Weight of main machine | 1000kg | 1200kg | 1450kg | 1500kg | 1700kg | 2200kg | 2800kg | |
4.Factory shows:
5. Other drying machines:
6. Product samples:
7.Our customers:
8. Certificates:
