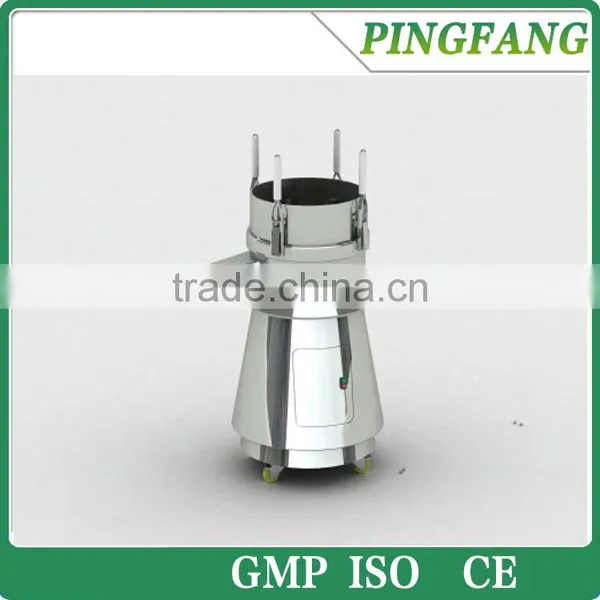

ZS Series Vibrating Screen, laboratory vibrating screen machine with good quality
1. Application:
ZS series lamination screening is applied for continuous screening of powder and inhomogencous granulates in such trades as pharmaceutical, chemical and food stuff etc.
2. Working principles:
This machine is comprised of hopper,vibrating chamber, coupling and motor etc., Where the vibrating chamber is composed by eccentric wheel,rubber part, spindle and bearing etc. when eccentric weight is conveyed to the centerline of spindle through motor driving ,it generates centrifugal force under unbalanced state,by which, material is forced to form regular eddy inside, and the amplitude of the weight adjuster can be regulated according to different material and screens .the whole machine features compact structure, low volume, no dust flying, low noise, high output, low energy consumption and convenient move and maintenance.
3. Technical Parameters:
| Model | Prduction Capacity | Meshes screen | Motor power | Spindle speed | Overall dimension | Weight |
|---|---|---|---|---|---|---|
| ZS350 | 60-500kg/h | 2-200mesh | 0.55kw | 1390r/min | 560*560*1050mm | 100kg |
| ZS515 | 100-1300kg/h | 2-200mesh | 0.75kw | 1400r/min | 710*710*1280mm | 180kg |
| ZS650 | 200-2500kg/h | 2-200mesh | 1.5kw | 1410r/min | 900*900*1350mm | 250kg |
4. Factory shows:
5. Other screening machines:
6. The sreening machine are applied in:
7. Our customers:
8. Certificates:
