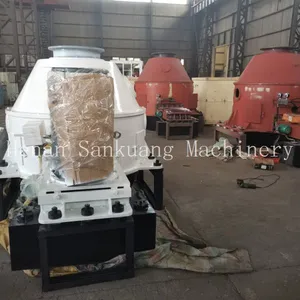

Welcome to Henan San Kuang Machinery Technology Co., Ltd., a leading manufacturer with over a decade of experience in coal processing equipment. Our Fine Coal Centrifuge, Vertical Scraper, 0.5mm Screen Slot, 380V/50Hz, Automatic Discharge, 30 t/h Capacity is engineered to deliver exceptional dewatering performance for fine coal particles. Combining robust construction with intelligent automation, this centrifuge ensures high efficiency, low maintenance, and consistent output, making it an ideal choice for coal preparation plants worldwide.
Key Features and Technical Specifications
- Vertical Scraper Design: Provides effective cake discharge and reduces downtime for cleaning.
- 0.5mm Screen Slot: Optimized for fine coal separation (0.5–13 mm feed), achieving high solid recovery rates.
- Automatic Discharge System: PLC-controlled, ensuring continuous operation and minimal human intervention.
- 380V/50Hz Power Supply: Standard industrial voltage, compatible with most global installations (optional voltage available upon request).
- 30 t/h Capacity: Suitable for medium to large-scale coal processing lines.
- Heavy-Duty Construction: Main components made of abrasion-resistant steel, extending service life.
- Low Energy Consumption: Advanced drive system optimizes power usage, lowering operational costs.
- Easy Maintenance: Designed with quick-access panels and replaceable wear parts.
| Parameter | Specification |
|---|---|
| Model | LWZ-30 (or similar) |
| Capacity | 30 t/h (dry coal basis) |
| Screen Slot | 0.5 mm |
| Voltage / Frequency | 380V / 50Hz (customizable) |
| Discharge Method | Automatic, scraper |
| Main Motor Power | 45–55 kW |
| Weight | Approx. 8,500 kg |
| Feed Size | 0.5 – 13 mm |
Advantages and Customer Benefits
- Superior Dewatering Efficiency: The vertical scraper mechanism combined with a precise 0.5mm screen slot ensures product moisture content as low as 8–12%, reducing drying costs downstream.
- Continuous Operation: Automatic discharge eliminates manual intervention, allowing 24/7 production with minimal supervision.
- Durable & Reliable: Built with high-strength materials and advanced welding technology, the centrifuge withstands abrasive coal slurries and harsh environments.
- Low Maintenance: Accessible design simplifies inspection and replacement of wear parts such as screens and scrapers, reducing downtime.
- Energy Saving: Optimized motor and drive system reduce power consumption by up to 15% compared to traditional models.
- Customizable Options: Voltage, screen slot size, and capacity can be tailored to specific project requirements.
Why Choose Henan San Kuang?
Established in 2014, Henan San Kuang Machinery Technology Co., Ltd. operates a factory spanning 10,000–30,000 square meters in Luoyang, Henan, China. With an annual export value of US$2.5–5 million and a dedicated team of 51–100 employees, we have supplied coal processing equipment to clients across North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East. Our commitment to quality is reflected in our certifications, including ISO9001, ISO14001, and OHSAS18001, which govern our production and management systems. We ship from major ports like Shanghai, Lianyungang, Qingdao, and Tianjin, ensuring timely delivery worldwide.
Our fine coal centrifuge undergoes rigorous testing before shipment, and we offer comprehensive after-sales support, including installation guidance, spare parts supply, and technical training. With a strong reputation in the domestic and international markets, we are confident that this centrifuge will exceed your performance expectations.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum feed size for this centrifuge?
A: The recommended feed size is 0.5–13 mm. Larger particles may cause screen blockage or reduce efficiency. -
Q: Can the voltage be adapted to 460V/60Hz for North America?
A: Yes, we offer customized voltage and frequency options. Please specify your requirements when ordering. -
Q: How often should the screen be replaced?
A: Screen life depends on feed abrasiveness and operating conditions. Typically, screens last 6–12 months. We provide durable screen options. -
Q: Does the machine come with a PLC control system?
A: Yes, the automatic discharge is managed by a PLC controller, which can be integrated with your existing control system. -
Q: What is the warranty period?
A: We offer a standard 12-month warranty from the date of shipment, covering manufacturing defects. -
Q: Can you provide installation and commissioning support?
A: Yes, we can send engineers to your site or provide remote guidance. Installation manuals are also included. -
Q: What is the approximate moisture content of the discharged coal?
A: Typically between 8% and 12%, depending on feed characteristics and screen slot. -
Q: Is the centrifuge suitable for other minerals besides coal?
A: It is primarily designed for fine coal, but with proper adjustments, it can be used for similar fine particle dewatering applications. Consult our technical team for details.
Contact us today for a competitive quotation and technical datasheet. Let Henan San Kuang be your reliable partner in coal processing!
