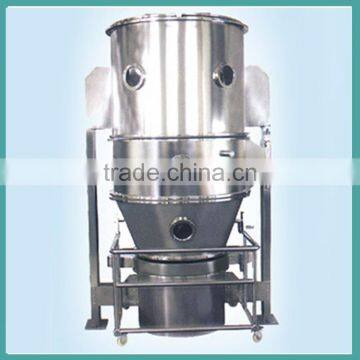

Model FL Series Fluidized Bed Granulating Dryer for Cocoa Powder

Huizhou Pingfang Trading Co., Ltd.
Model FL Series Fluidized Bed Granulating Dryer for Cocoa Powder thumbnail-1
Model FL Series Fluidized Bed Granulating Dryer for Cocoa Powder photo-1
US$ 17,000 - 18,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, granulator
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China( Mainland)
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Other, granulator
Place of Origin Shanghai, China
Brand Name PF
Model Number FL
Voltage 220V
Power(W) 7.5kw
Dimension(L*W*H) different model have different size
Weight 980KG
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

                  Model FL Series Fluidized Granulating Dryer





1. technical parameters:



           type
item

3
5
30
60
120
200
300
500
Container of raw material
Dim
mm
300
400
700
1000
1200
1400
1600
1800
Volume
L
12
22
100
220
420
670
1000
1500
Production capacity
Min
Kg/batch
1.6
4
15
30
80
100
150
250
max
Kg/batch
4
6
36
72
140
240
360
600
Consume of steam
Kg/batch
12
23
70
140
211
282
366
465
Amount of compressed air
M3/min
0.3
0.3
0.3
0.6
0.6
0.9
1.1
1.6
Power of fan
kW
2.2
4
5.5
11
18.5
22
30
45
Temperature
℃
From room temperature to operating temperature in 120℃ to be set randomly
Yield
%
>99
Option time
Min
15-30
Content at final term
%
-0.2
Noise
dB
75
Height of main machine
mm
2100
2300
2500
3000
3300
3800
4000
4400





2. application:

1.  Pharmaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese medicine.
2.   Foodstuff: cocoa, coffee, milk-powder, juice of granulate, flavoring and so on.
3.  Other industries: peticide, feed chemical fertilizer, pigment, dyestuff and so on.
4.   Pharmaceutical industry: tablet.



ing principles:

The powder granulation in the container (fluidization) appear in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the container. It makes the some particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulation is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and Porous granules



.4. Main properities:

1.  Because of powder Granulation, the fluidity is improved and the dust is reduced;
2.  Because of powder Granulation, its solving property is improved;
3.  The mixing ,Granulating and drying can be completed in one step-inside the machine;
4.  The operation of equipment is safe because the anti static filtering cloth is adapted;
5.   The operation of personnel can not be damaged if explosion take place because there is releasing hole;
6.   The equipment had no dead corner, Therefore the loading and unloading are quick and light and clean. It can meet the requirements of GMP.



5. Factory and exhibition photos:


Canton Fair show



Model FL Series Fluidized Bed Granulating Dryer for cocoa powder



Model FL Series Fluidized Bed Granulating Dryer for cocoa powder



Working room



5. Other machines:
Model FL Series Fluidized Bed Granulating Dryer for cocoa powder





  6. Samples:

Model FL Series Fluidized Bed Granulating Dryer for cocoa powderModel FL Series Fluidized Bed Granulating Dryer for cocoa powder





7. Certificates:

Model FL Series Fluidized Bed Granulating Dryer for cocoa powderModel FL Series Fluidized Bed Granulating Dryer for cocoa powderModel FL Series Fluidized Bed Granulating Dryer for cocoa powder
