Specifications
compound fertilizer granulator plant1 granulating ratio is up to 70% .
2 rubber anti-corrosion lining board
3 high intensity

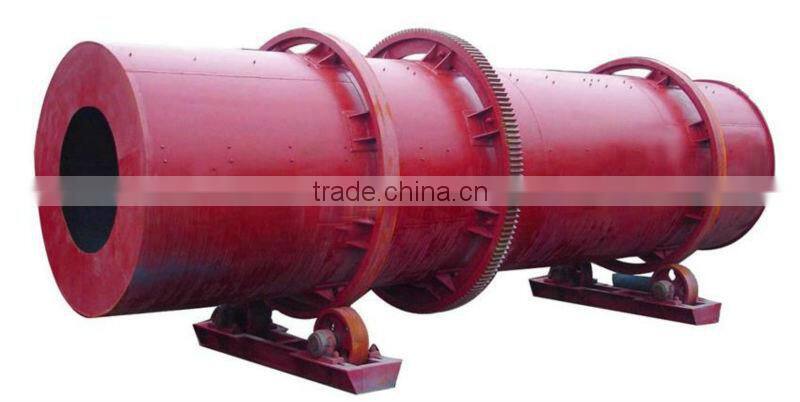

High efficiency and competitive price compound fertilizer granulator plant
Features
1) The granulating ratio of the machine is up to 78% . The small part of feeding back material can be granulated again.
2) The cylinder body adopts rubber plate lining structure which makes it difficult for raw material to agglomerate.
3) It can remove scars and peel burls automatically.
4) It has the advantages of high intensity of granules, high quality, corrosion-resistant, abrasion proof, low energy consumption, long service lifespan, easy maintenance and operation, etc..
Machine major for making fertilizer kinds:
1 Organic fertilizer( animal manure or waste as raw material)
2 NPK compound fertilizer
(1) NPK: 8-4-8 with seaweed: 10% + organic matter: 20% + Ca, Mg, Zn, Fe, etc.
(2) NPK: 10-5-10 with seaweed: 10% + organic matter: 20% + Ca, Mg, Zn, Fe, etc.
(3) NPK: 12-8-15 with seaweed: 10% + organic matter: 20% + Ca, Mg, Zn, Fe, etc.
(4) NPK: 8-8-8 with seaweed: 10% + organic matter: 20% + Ca, Mg, Zn, Fe, etc.
(5) NPK: 10-10-10 with seaweed: 10% + organic matter: 20% + Ca, Mg, Zn, Fe, etc.
(6) NPK: 12-6-12 with seaweed: 10% + organic matter: 20% + Ca, Mg, Zn, Fe, etc.
(7) NPK: 10-7-15 with seaweed: 10% + organic matter: 20% + 5-8% of S + 3% of MGO
(8) NPK: 12-12-17 + with seaweed: 10% + organic matter: 5%
(9) NPK: 2-2-3 with seaweed: 10% + organic matter: 40% + Ca, Mg, Zn, Fe, etc.
(10) NPK: 5-1-1 with seaweed: 10% + organic matter: 40% + Ca, Mg, Zn, Fe, etc.
(11) NPK: 4-4-4 with seaweed: 10% + organic matter: 40% + Ca, Mg, Zn, Fe, etc.

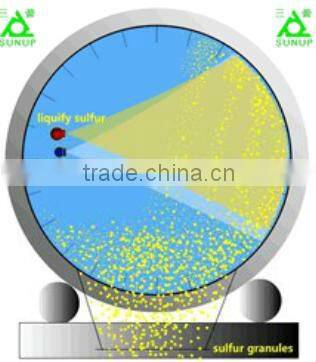

Work principle
After these solid fertilizer particles enter into the drum granulator, they will make rotating movement under functions of gravity, centrifugal force, and friction force between fertilizers. With the rotary movement of the drum granulator, Then the coating layers become thicker and thicker until produced materials are granulated into required dimensions. Finally, those obtained products are spilled out from the discharging hole.
Main technical parameters
Type |
Obliquity |
Diameter (mm) |
Length (mm) |
Power (kw) |
Capacity (t/h) |
Dimensions (LxWxH,mm) |
Weight (T) |
HG1405 |
2-2.5 |
1400 |
5000 |
7.5 |
2-5 |
5000x1950x2100 |
8.5 |
HG1606 |
2-2.5 |
1600 |
6000 |
11 |
5-8 |
6000x2100x2400 |
12 |
HG1807 |
2-2.5 |
1800 |
7000 |
18.5 |
8-10 |
7000x2200x2800 |
18.5 |
HG2008 |
2-2.5 |
2000 |
8000 |
22 |
10-15 |
8000x2600x3200 |
22 |
HG2210 |
2-2.5 |
2200 |
10000 |
30 |
15-20 |
10000x2800x3400 |
28 |
HG2410 |
2-2.5 |
2400 |
10000 |
37 |
20-25 |
10000x3220x3900 |
36 |
HG2610 |
2-2.5 |
2600 |
10000 |
45 |
25-30 |
10000x3500x4200 |
42 |

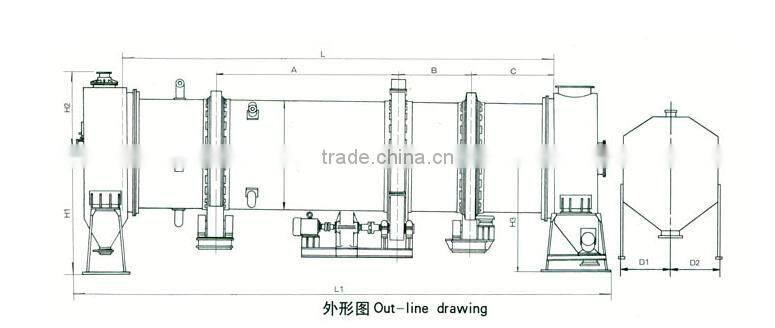

Structure

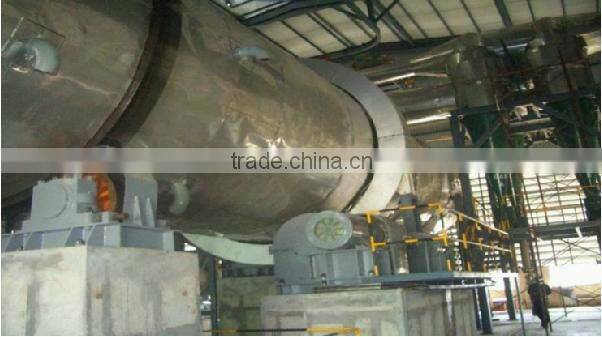

Work site
Please Contact with Claire
Mobile: 0086+150 3834 9509
Skype: claire77524
place order or send inquiry we would like to know the following information:
-What kind of material you use for making fertilizer?
-Capacity per hour you need?
-What is the size of the raw material?
