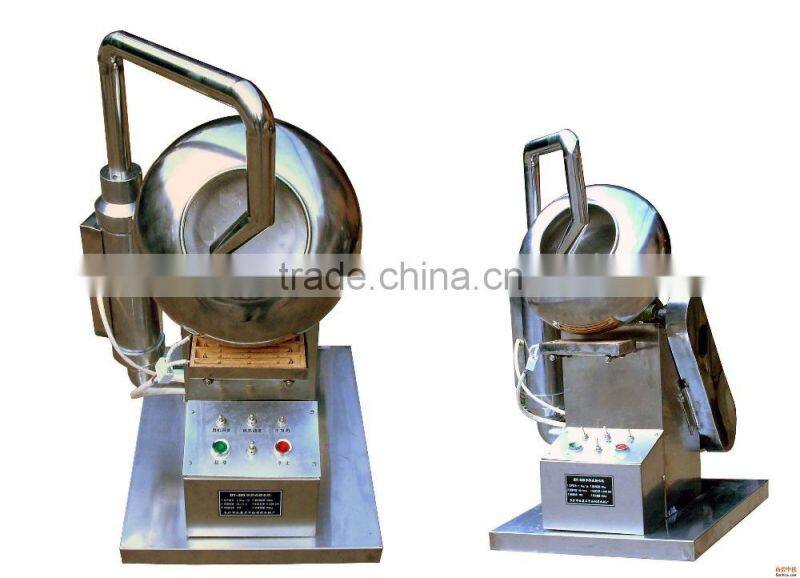

Model LDB Fluid Level Coating Machine, Small Chocolate/ Tablet Coating Machine for Sale

Model LDB Fluid Level Coating Machine, Small Chocolate/ Tablet Coating Machine for Sale photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
PF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shanghai, China
Brand Name PF
Model Number LDB
Usage Other, coating
Voltage 380V
Power(W) 2.2KW
Weight 150kg
Dimension(L*W*H) 1200x1890x2190mm
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas



             Model LDB Fluid level coating machine, small chocolate/ tablet coating machine for sale







1.  Application:

This machine is fit for the troche’s water-solubilty coating intestines solubility coating sugar-coating and slow-release control-release coating.



2. Feature:

Due to the baffle mix round device are almost discontinuity setting on the traditional coating machine, it’ll cause the stagnancy region phenomena between the milling oars. This phenomena makes the tablet’s asymmetry influence the tablet’s unknit and the color’s homogeneous. Especially in the large –scale coating machine.
As a result of the increasing in the length of the traditional coating pan, when the pan rotating with the sugar capsule’s conglutination effect. The tablets’s pilling phenomena becomes more obvious, this is difficult to ussure the tablets’ unknit. As the coating pan’s diameter increased, the tablets’ cumulate deepness increased too, so the warm air’s penetrate force can’t dry the plane in time with the coating time becomes longer, the old type coating machine hasn’t increase the operation efficiency.
The traditional large-scale coating machines are designed largely, so it’s inconvenient to observe or operate based on the reasons above and our deeply research in some foreign modern coating equipment’s technique, our company has developed the moving level coating machine which has the lead technical in the world today. This machine solved the big problems about the large-scale machine’s sugar coating these years, supply the gap of this field in the world.



3. Technical Parameters:



Item
Unit
LDB-150
LDB-300
LDB-600
Production capacity
Kg/pcs
150
300
600
Coating roller diameter
mm
950
1400
1500
Inlet diameter
mm
480
605
650
Rotate speed of coating container
rpm
2-17
2-17
2-15
Motor power of central machine
kw
2.2
3
4
Outline dimension of central machine
mm
1200x1890x2190
2050x2355x2610
2400x2650x2750
Motor power of warm air compressor
Kw
1.5
3
4
Outline dimension of warm air compressor
mm
740x810x1770
900x1120x1910
900x1370x2210
Motor power of air exhausting machine
Kw
5.5
7.5
11
Outline dimension of air exhausting machine
mm
800x900x1880
850x950x2120
920x1020x2260

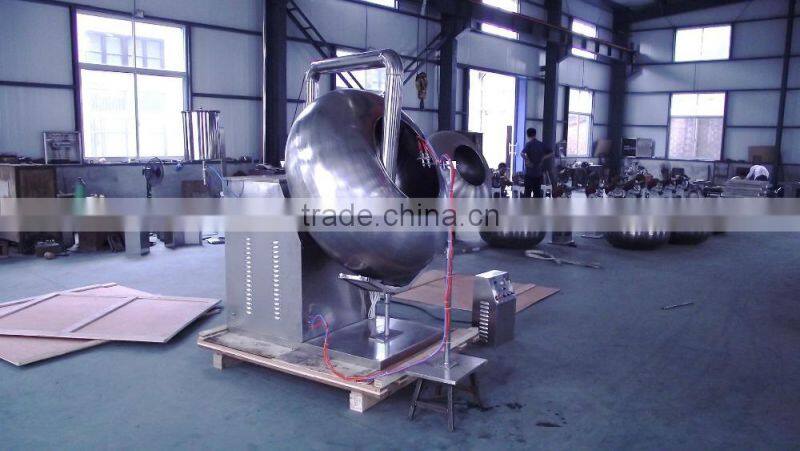

4. Factory and exhibition photos:



Model LDB Fluid level coating machine, small chocolate/ tablet coating machine for saleModel LDB Fluid level coating machine, small chocolate/ tablet coating machine for sale

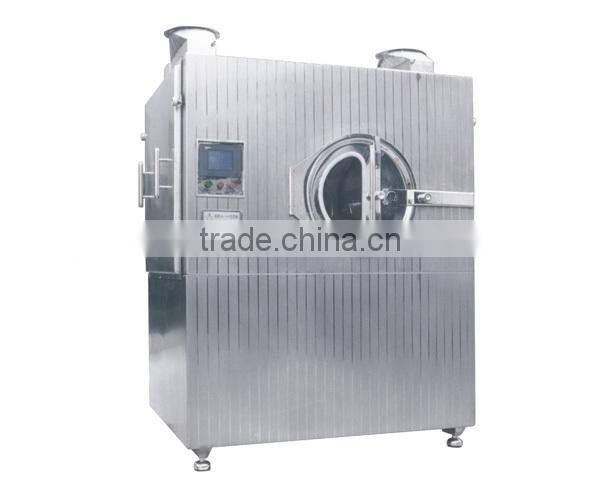

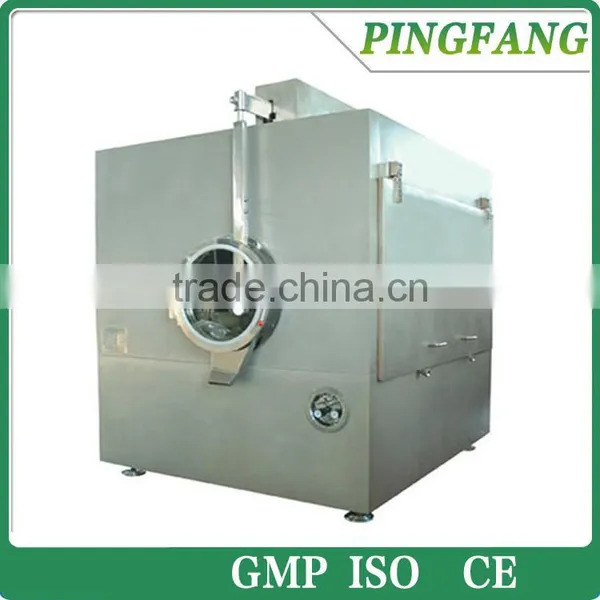

5. Other machines:



Model LDB Fluid level coating machine, small chocolate/ tablet coating machine for saleModel LDB Fluid level coating machine, small chocolate/ tablet coating machine for sale



6. Product samples:


Model LDB Fluid level coating machine, small chocolate/ tablet coating machine for saleModel LDB Fluid level coating machine, small chocolate/ tablet coating machine for saleModel LDB Fluid level coating machine, small chocolate/ tablet coating machine for sale







7. Our customers:

Model LDB Fluid level coating machine, small chocolate/ tablet coating machine for saleModel LDB Fluid level coating machine, small chocolate/ tablet coating machine for sale







8. Certificates:



Model LDB Fluid level coating machine, small chocolate/ tablet coating machine for saleModel LDB Fluid level coating machine, small chocolate/ tablet coating machine for saleModel LDB Fluid level coating machine, small chocolate/ tablet coating machine for sale
