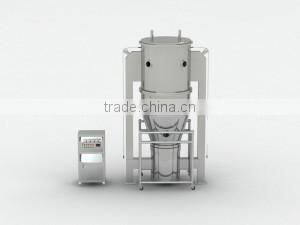

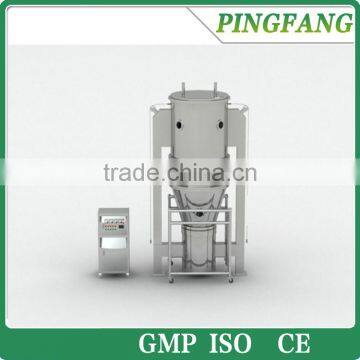

The most popular FL Series Fluidized Granulating Drier, small fruit/grape drying machine
- 10 Unit / Units per Month
- Shanghai port China(Mainland)
- T/T Credit Card
Product Details
Condition: | New | Type: | Fluid Bed Drying Equipment | Place of Origin: | Shanghai, China |
Brand Name: | PF | Model Number: | FL | Voltage: | 220v/380v |
Power(W): | 3kw | Dimension(L*W*H): | 1.0*0.6*2.1mm | Weight: | 500kg |
Certification: | CE ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
The most popular FL Series Fluidized Granulating Drier, small fruit/grape drying machine
1. Application:
Pharmaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese medicine Foodstuff: cocoa, coffee, milk powder, juice of granulate, flavoring and so on. Other industries: pesticide, feed, chemical fertilizer, pigment, dyestuff and so on. Pharmaceutical industry: tablet.
2. Working principle:
The powder granule the container (fluidization bed) appear the state of fluidization, It is preheated and mixed with clean and heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the container. It makes the some particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
3. Features:
A.Because of powder Granulating, the flow property is improved and the dust is reduced;
B.Because of powder Granulating, its solving property is improved;
C.The mixing, Granulating and drying can be completed in one step inside the machine;
D.The operation of equipment is safe because the antistatic filtering cloth is adapted;
E.The operation personnel can not be damaged if explosion is taken place because there is releasing hole;
F.The equipment has no dead corner. Therefore the loading and unloading are quick and light and clean. It can meet the requirements of GMP.
4. Technical Parameters:
Model | FL-3 | FL-5 | FL-15 | FL-30 | |
---|---|---|---|---|---|
Container | Volume | 12L | 22L | 45L | 100L |
Diameter | 300mm | 400mm | 550mm | 700mm | |
Capability | Min | 1.5kg | 4kg | 10kg | 15kg |
Max | 4.5kg | 6kg | 20kg | 45kg | |
Fan | capacity | 1000m³/h | 1200m³/h | 1400m³/h | 1800m³/h |
pressure | 375mm h2o | 375mm h2o | 480mm h2o | 480mm h2o | |
power | 3kw | 4kw | 5.5kw | 7.5kw | |
steam expenditure | 15kg/h | 23kg/h | 42kg/h | 70kg/h | |
compressed air expenditure | 0.9m3/min | 0.9m3/min | 0.9m3/min | 0.9m3/min | |
steam pressure | 0.3-0.6mpa | 0.3-0.6mpa | 0.3-0.6mpa | 0.3-0.6mpa | |
temperature | Adjustable at the range from room temperature to 120℃ | Adjustable at the range from room temperature to 120℃ | Adjustable at the range from room temperature to 120℃ | Adjustable at the range from room temperature to 120℃ | |
working time | Decided in accordance with the properties of raw materials | Decided in accordance with the properties of raw materials | Decided in accordance with the properties of raw materials | Decided in accordance with the properties of raw materials | |
field | ≥99% | ≥99% | ≥99% | ≥99% | |
noise | When installation,main machine is separated from fan | When installation,main machine is separated from fan | When installation,main machine is separated from fan | When installation,main machine is separated from fan | |
size | 1.0*0.6*2.1mm | 1.2*0.7*2.3mm | 1.25*0.9*2.5mm | 1.6*1.1*2.5mm | |
weight of the main body | 500kg | 700kg | 900kg | 1000kg |
Model | FL-60 | FL-120 | FL-200 | FL-300 | FL-500 | |
---|---|---|---|---|---|---|
Container | Volume | 220L | 420L | 670L | 1000L | 1500L |
Diameter | 1000mm | 1200mm | 1400mm | 1600mm | 1800mm | |
Capability | Min | 30kg | 80kg | 100kg | 150kg | 250kg |
Max | 90kg | 160kg | 300kg | 450kg | 750kg | |
Fan | capacity | 3000m³/h | 4500m³/h | 6000m³/h | 7000m³/h | 8000m³/h |
pressure | 950mm h2o | 950mm h2o | 950mm h2o | 950mm h2o | 950mm h2o | |
power | 11kw | 18.5kw | 22kw | 30kw | 45kw | |
steam expenditure | 141kg/h | 211kg/h | 282kg/h | 366kg/h | 451kg/h | |
compressed air expenditure | 1m3/min | 1.1m3/min | 1.1m3/min | 1.5m3/min | 1.5m3/min | |
steam pressure | 0.3-0.6mpa | 0.3-0.6mpa | 0.3-0.6mpa | 0.3-0.6mpa | 0.3-0.6mpa | |
temperature | Adjustable at the range from room temperature to 120℃ | |||||
working time | Decided in accordance with the properties of raw materials | |||||
field | ≥99% | ≥99% | ≥99% | ≥99% | ≥99% | |
noise | When installation,main machine is separated from fan | |||||
size | 1.85*1.4*3mm | 2.2*1.65*3.3mm | 2.34*1.7*3.8mm | 2.8*2.0*4.0mm | 3*2.25*4.4mm | |
weight of the main body | 1100kg | 1500kg | 1500kg | 1800kg | 2000kg |
5.Factory shows:

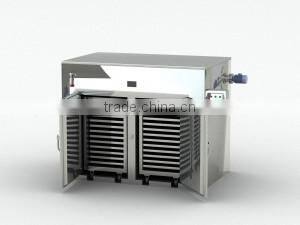

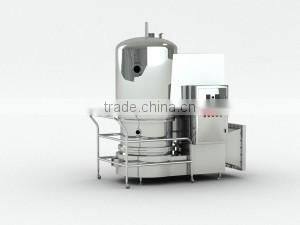

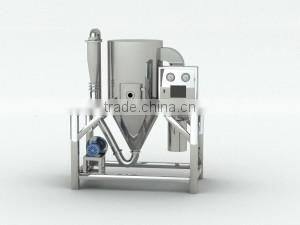

6. Other drying machines:
7. Product samples:
8.Our customers:
9. Certificates:
