High Efficiency Intelligent Film Coating Machine, sugar coating machine, powder coating machine for sale
1. Application:
The tablets make complicated and constant track movement with easy and smooth turn frequent exchanging in a clean and closed drum of the film coating machine. The coating mixed round in the mixing drum are sprayed on tables through the spray gun at the Inlet un action of the peristaltic pump. Meanwhile under the action of air exhaust and negative pressure 100,000 clean hot air supplied by the air exhaust cabinet is exhausted from the fan at the sieve meshes through tablets. So these coating mediums on the surface of tablets get dry forming a coat of firm, fine and smooth film. The whole process is finished under the control of PLC.
2. Feature:
a,All operations can be finished through pushing the touch key on the computer-controlled panel. The operational panel is a full-sealed slight touch film interface. The main machine as reliable and stable performance.
b,The streamline guiding-type mixer drives tablets to make easy and smooth rotation without fragment and chipped edge, which improves the quality of finished products.
c,Automatic feeding device stopped the cross pollution , convenient to feed, with high efficiency and full direction. The coating boiler equipped in the high pressure spray gun, which can rotate 1800, there set a cleaning sprayer at the air exhaust exit and hot air mouth, which can be rotated in automatic and full direction, without dead corner more convenient to clean.
d,Select the imported spray gun. It's convenient to operate and easy to master and flexible controlled technological requirement. The spray gun head requirement must keep in the range of 0.29 MPa to 0.39 Mpa.
e,Angle and sector can be adjustable , uniform density and particle in spray pressure and 0.4-0.5Mpa in atomization pressure that avoid the dropping leakage and blockage phenomenon of size, uniform atomization and large spray area, practical to adjust flow, free leakage and blockage, angle and sector.
f,Film coating machine contains the mechanical device of cauldron wrapping little material can coat at least 20kg plain pills in 150 type coating machine, regulate through it inherent machinery, make a small mount of medium coat in cauldron and will not cause the wasted of dressing and greatly improve the scope of appliance
3. Technical Parameters:
Item/model | BG1000E | BG600E | BG400E | BG150(D)E | BG80(D)E | BG40(D)E | BG10(D)E | BG5(D)E | |
Load capacity | 1000kg | 600kg | 400kg | 150kg | 80kg | 40kg | 10kg | 5kg | |
Revolutions (r/min) | 1-12RPM | 1-12RPM | 1-13RPM | 1-16RPM | 1-19RPM | 1-21RPM | 1-25RPM | 0-21RPM | |
Machine power | 7.5KW | 4KW | 3KW | 2.2KW | 1.5KW | 1.1KW | 0.55KW | 0.37KW | |
Diameter of coating drum | 1800mm | 1580mm | 1580mm | 1200mm | 930mm | 780mm | 500mm | 564mm | |
Power of air exhaust cabinetmotor | 11kw | 11kw | 7.5kw | 5.5kw | 3kw | 2.2kw | 0.75kw | 0.55kw | |
Air exhaust flow | 18000m3/h | 15450 m3/h | 10000 m3/h | 7419 m3/h | 5268 m3/h | 3517 m3/h | 1285 m3/h | 805 m3/h | |
Power of hot air cabinet motor | 7.5kw | 4kw | 2.2kw | 1.5kw | 1.1kw | 0.75kw | 0.37kw | 0.25kw | |
Hot air flow | 10650 m3/h | 6500 m3/h | 3517 m3/h | 2356 m3/h | 1685 m3/h | 1285 m3/h | 816 m3/h | 504 m3/h | |
Weight of main machine | 2000kg | 1600kg | 1000kg | 850kg | 600kg | 500kg | 200kg | 750kg | |
Air consumption | Pressure | ≥0.4Mpa | ≥0.4Mpa | ≥0.4Mpa | ≥0.4Mpa | ≥0.4Mpa | ≥0.4Mpa | ≥0.4Mpa | ≥0.4Mpa |
Air consumption | 2.5 m3/min | 2 m3/min | 1.5 m3/min | 0.7 m3/min | 0.35 m3/min | 0.2 m3/min | 0.2 m3/min | 0.2 m3/min | |

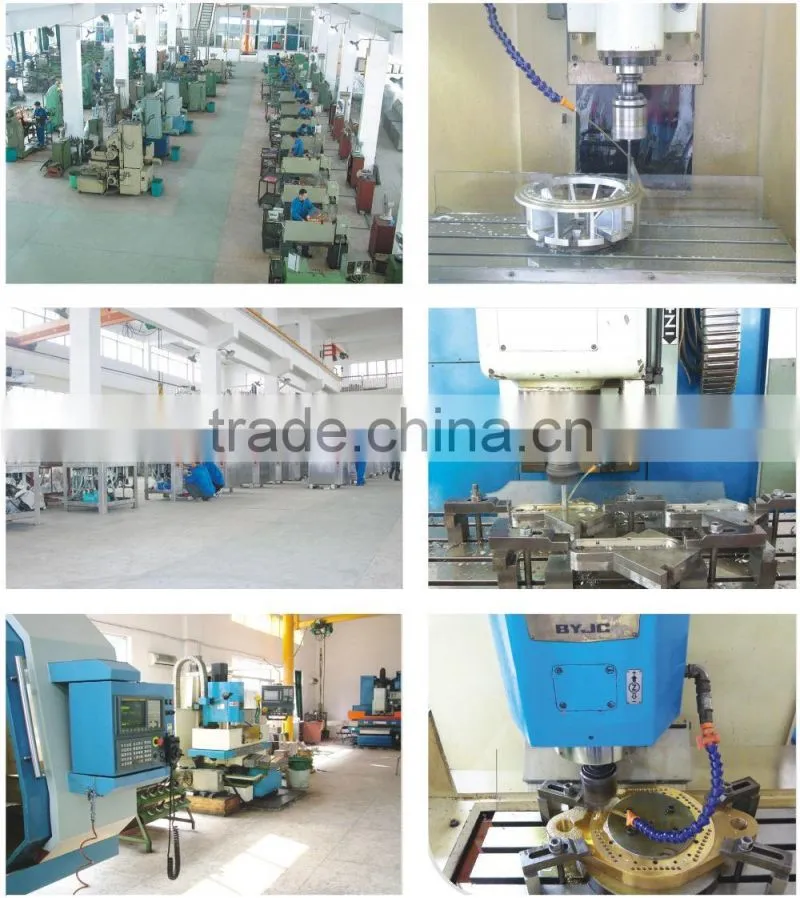

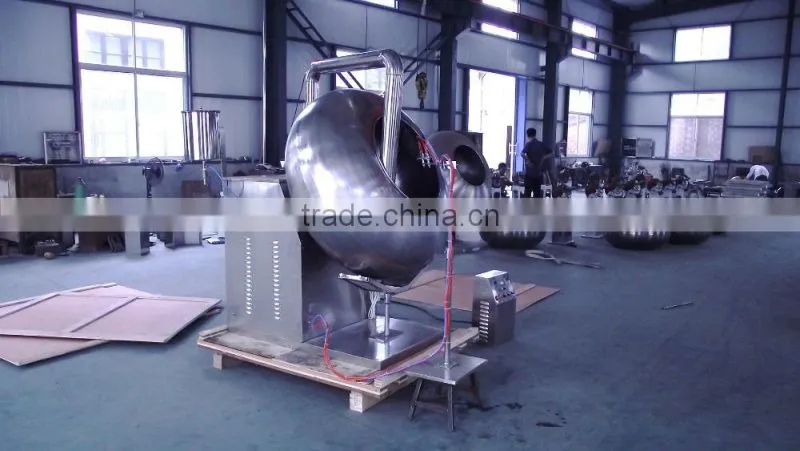

4. Factory and exhibition photos:

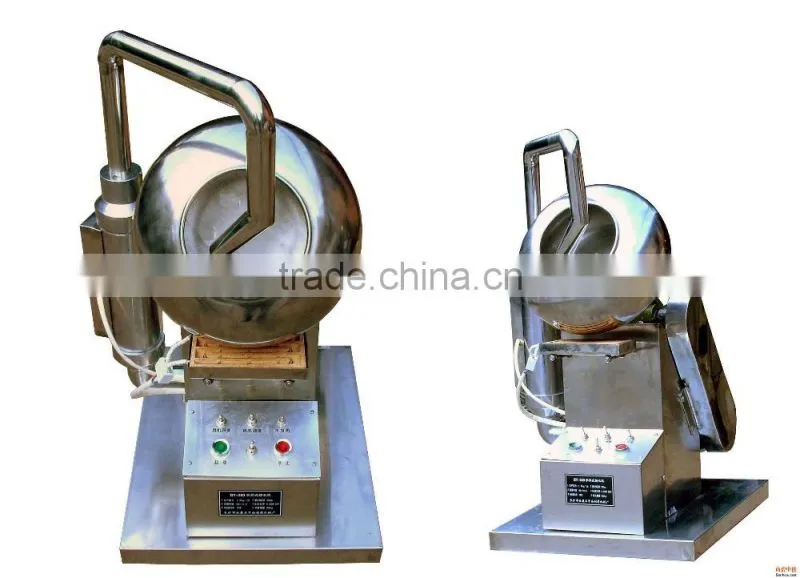

5. Other machines:
6. Product samples:
7. Our customers:
8. Certificates:
