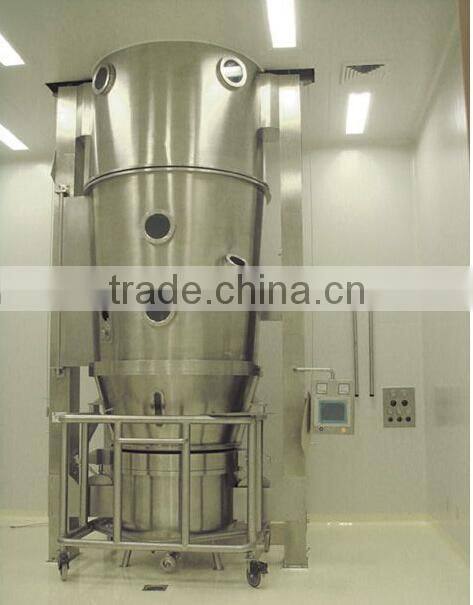

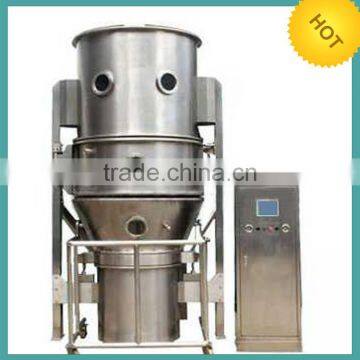

FL Fluidized Granulator (Fluid Bed Processor) for Cocoa Powder

Huizhou Pingfang Trading Co., Ltd.
FL Fluidized Granulator (Fluid Bed Processor) for Cocoa Powder thumbnail-1
FL Fluidized Granulator (Fluid Bed Processor) for Cocoa Powder photo-1
US$ 20,000 - 23,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, granulator
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China( Mainland)
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Other, granulator
Place of Origin Shanghai, China
Brand Name PF
Model Number FL
Voltage 220V
Power(W) 3(KW)
Dimension(L*W*H) 1.0*0.6*2.1m
Weight 15(KG)
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

          FL Fluidized Granulator (Fluid Bed Processor)





1. technical parameters:



item
unit
 spec
3
5
15
30
60
120
200
300
500
1000
vessel
volume
L
12
22
45
100
220
420
670
1000
1500
3000
diameter
mm
300
400
550
700
1000
1200
1400
1600
1800
2200
capability
min
kg
1.5
4
10
15
30
80
100
150
250
800
max
kg
4.5
6
20
45
90
160
300
450
750
1200
fan
velocity
m3/h
1000
1200
1400
1800
3000
4500
6000
7000
8000
13670
pressure
mmH2O
375
375
480
480
950
950
950
950
950
1400
power
kw
3
4
5.5
7.5
11
18.5
30
37
45
90
steam consumption
kg/h
15
23
42
70
141
211
282
366
451
750
compressed air expenditure
m3/min
0.9
0.9
0.9
0.9
1.0
1.0
1.1
1.5
3.0
4.0
weight of the main body
kg
500
700
900
1000
1100
1300
1500
1800
2500
3500
steam pressure
MPA
0.1-0.4
temperature
℃
adjustable at the range from room temperature to 120℃
working time
min
45-90 decided in accordance with the properties of raw materials
collect rate
%
≥99
noise
dB(A)
≤75dB(A) when do installation ,main machine is separated from fan.
size (L×W×H)
m
1.0×0.6
×2.1
1.2×0.7
×2.3
1.25×0.9 ×2.5
1.6×1.1
×2.5
1.85×1.4 ×3
2.2×1.65
×3.3
2.34×1.7 ×3.8
2.8×2.0
×4.5
3×2.25
×5.0
4×2.8×7.2





2. application:

Pharmaceutical industry :tablet capsule, low sugar or no sugar granule of Chinese traditional medicine.
Foodstuff: coca, coffee, milk powder, juice of granulate, flavoring and so on.
Other industries: pesticide, feed, chemical fertilizer, pigment, dyestuff and so on.
Drying: powder or granule state of wet material
Coating: protection layer, color, controlled release, film, or bowels solved coating of granules and pills.



ing principles:

The powder granule in vessel (fluid bed) appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.



4. Factory and exhibition photos:


Canton Fair show



FL Fluidized Granulator (Fluid Bed Processor) for cocoa powder



FL Fluidized Granulator (Fluid Bed Processor) for cocoa powder



Working room



5. Other machines:
FL Fluidized Granulator (Fluid Bed Processor) for cocoa powder





  6. Certificates:

FL Fluidized Granulator (Fluid Bed Processor) for cocoa powderFL Fluidized Granulator (Fluid Bed Processor) for cocoa powderFL Fluidized Granulator (Fluid Bed Processor) for cocoa powder
