Model DZ-120B model vertical cartoning machine is high technology product incorporates pneumatic-photo-electro-mechanic. The machine is suitable for injection or penicillin bottle in the blister tray box ,injection in finishing blister, similar blister package product,adjust automatic feeding structure conveniently,setup quantity of blisters on touch screen randomly.On line product feeding and detecting,leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
1 International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2 Adopt human-machine operation system.
3 Automatically stop when machine is overload.
4 Automatically reject lacking of package product and leaflet.
5 Automatically display trouble, Alarm and count finished products.
6 Stable performance,operation is easy.
Item |
Parameters |
|
Encasing speed |
50-60 boxes /min(limited manual feeder) |
|
Box |
Quality requirement |
250-350g/m2[Base on carton size] |
Dimension range(L×W×H) |
(65-160)mm×(30-130)mm×(14-50)mm |
|
Leafle |
|
|
Unfolded leaflet specification |
(80-230mm×(90-170mm |
|
Fold range |
[1-4]Fold |
|
Compressed air |
Working pressure |
≥0.6mpa |
Air consumption |
120-160L/min |
|
Power supply |
380V 50HZ |
|
Main motor power |
0.75kw |
|
Machine dimension(L×W×H) |
2400mm×114mm×180mm |
|
Machine weight |
1300kg |
|

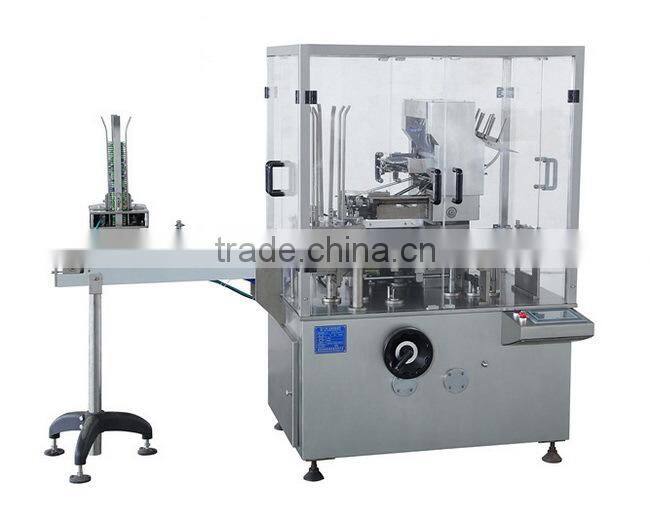

Machine Show

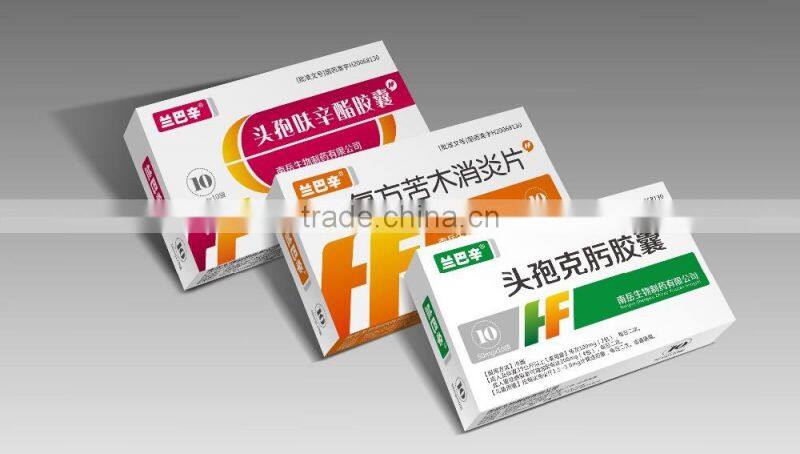

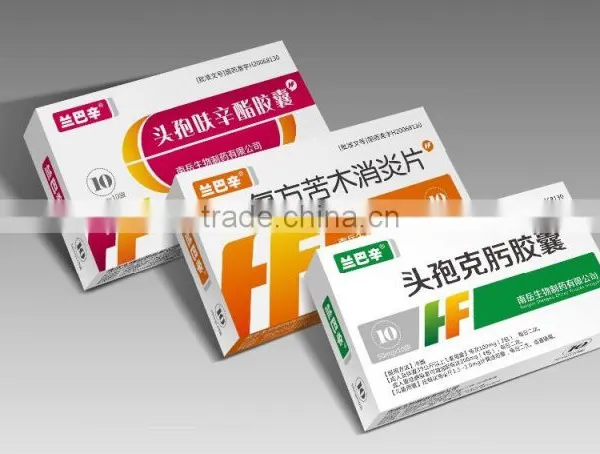

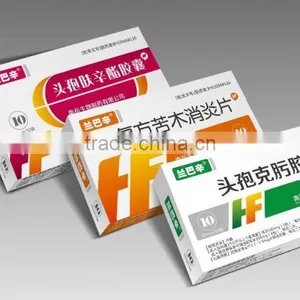

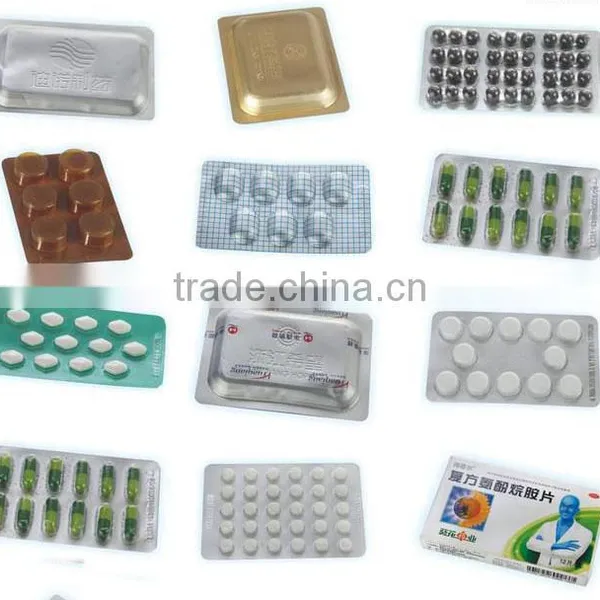

Samples
Certifications
2015 Canton Fair
