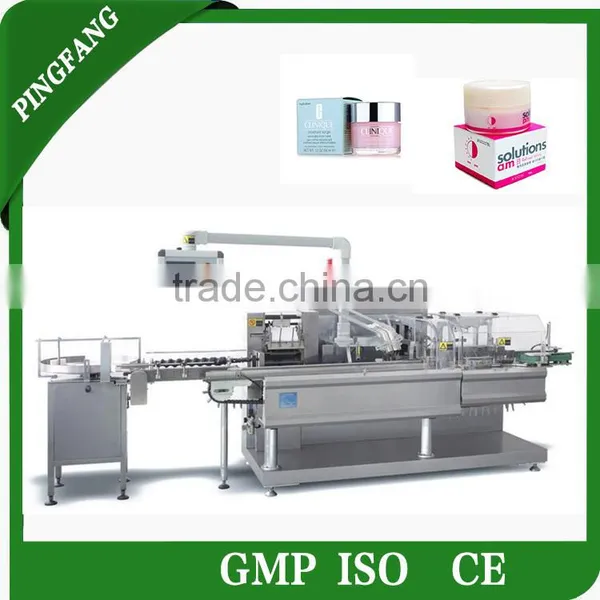

Help CenterDZH-120P High Efficiency Horizontal Type Automatic Carton Packing Machine for Bottles
Related Products
-
BT-2000L Three-dimensional Automatic Packaging Machine/Cellophane Overwrapping MachineNegotiableMOQ: 1 Unit -
DZ-120 Automatic Cartoning Machine/Injection Type Cartoning MachineNegotiableMOQ: 1 Unit
-
DZ-120B Blister Card Cartoning Machine/vertical Cartoning MachineNegotiableMOQ: 1 Unit
-
DZ-120D Facial Mask Automatic Cartoning Machine, Cosmetic Packaging MachineNegotiableMOQ: 1 Unit
-
250 Three-dimensional Packaging Machine/Chinese Packaging MachineNegotiableMOQ: 1 Unit
This machine is suitable for automatic feeding bottle(round,square bottle)into carton (either for blister or bottle). On line bottle unscramble and feeding,leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
1 International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2 Adopt human-machine operation system.
3 Automatically stop when machine is overload.
4 Automatically reject lacking of package product and leaflet.
5 Automatically display trouble, Alarm and count finished products.
6 Stable performance, operation is easy.
Item |
Parameters |
|
Encasing speed |
30-120 boxes /min |
|
Box |
Quality requirement |
250-350g/m2[Base on carton size] |
Dimension range(L×W×H) |
(65-120)mm×(30-70)mm×(15-55)mm |
|
Leafle |
Unfolded leaflet specification |
(80-230)mm×(90-170)mm |
Fold range |
[1-4]Fold |
|
Compressed air |
Working pressure |
≥0.6mpa |
Air consumption |
120-160L/min |
|
Power supply |
380v 50HZ |
|
Main motor power |
1.5kw |
|
Machine dimension(L×W×H) |
2600mm×1140mm×1800mm |
|
Machine weight |
1200kg |
|

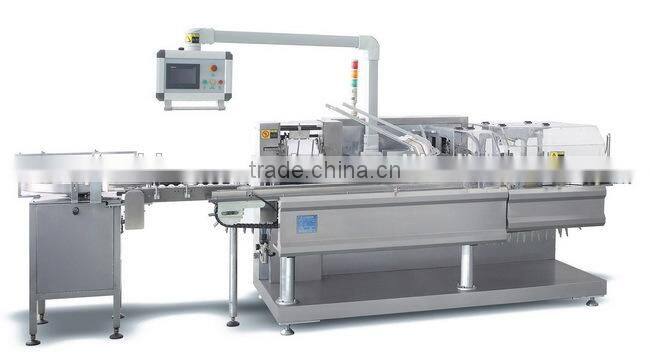

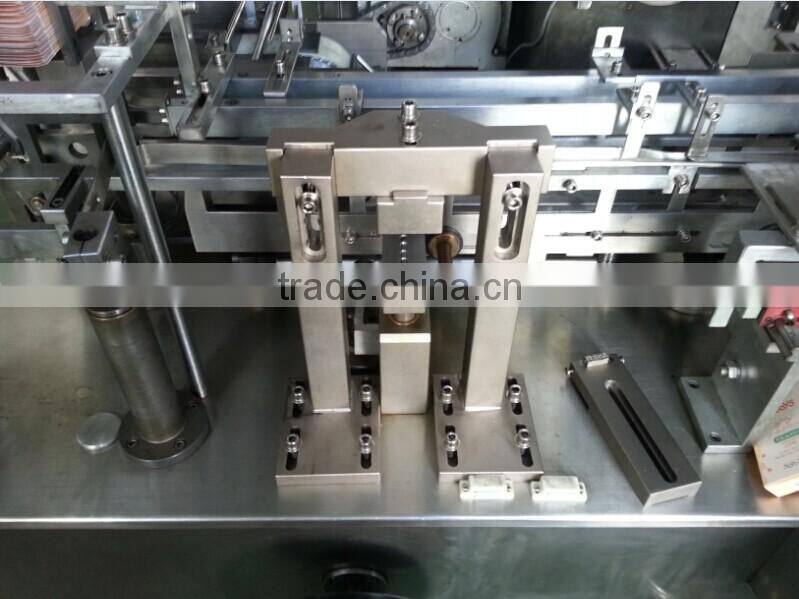

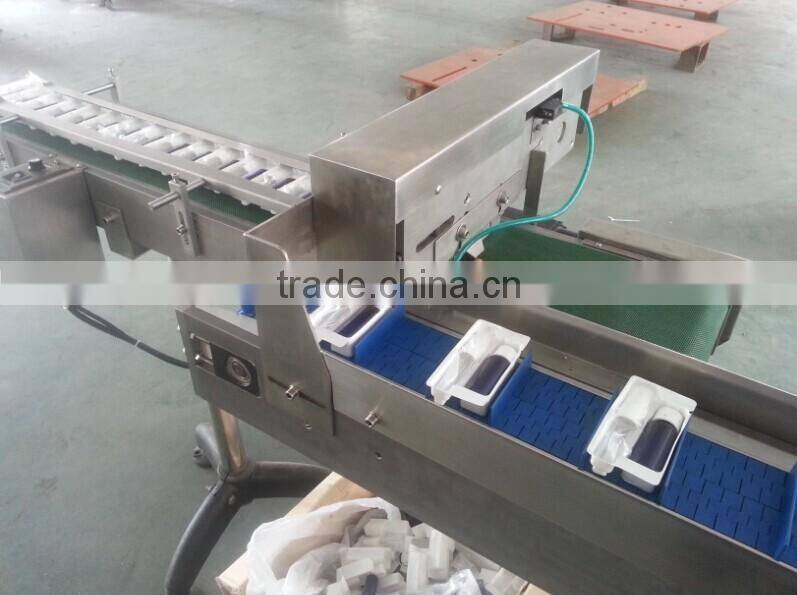

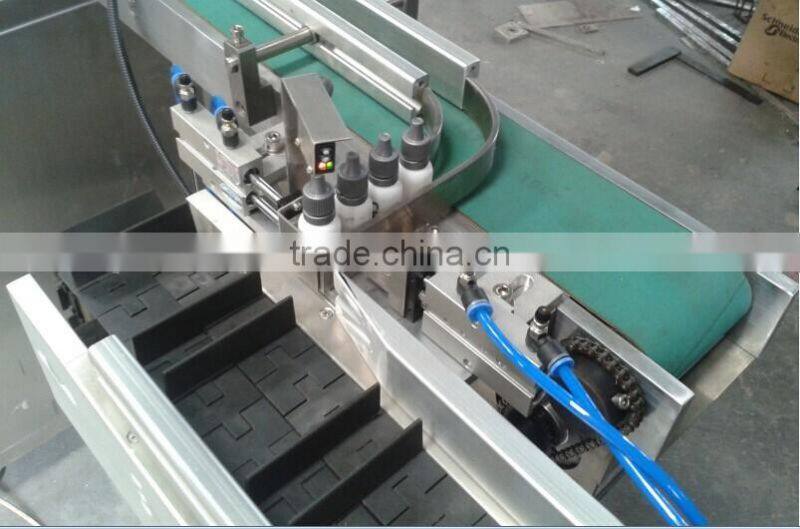

Machine Show

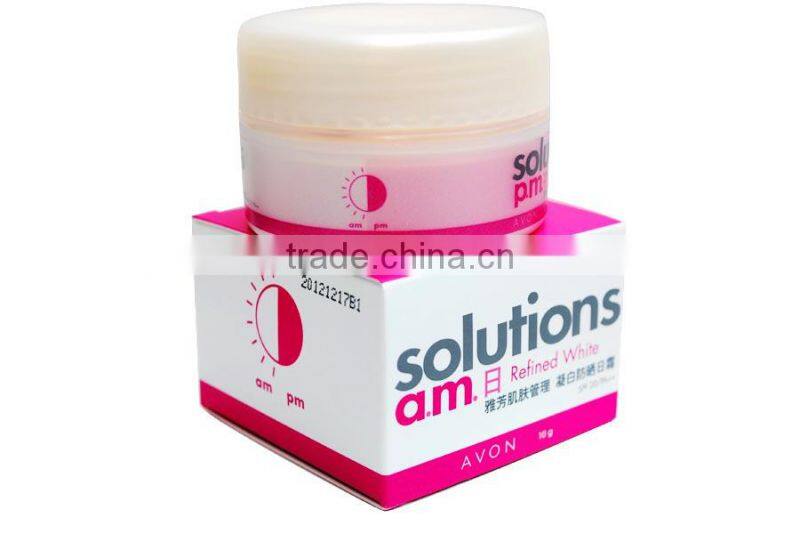

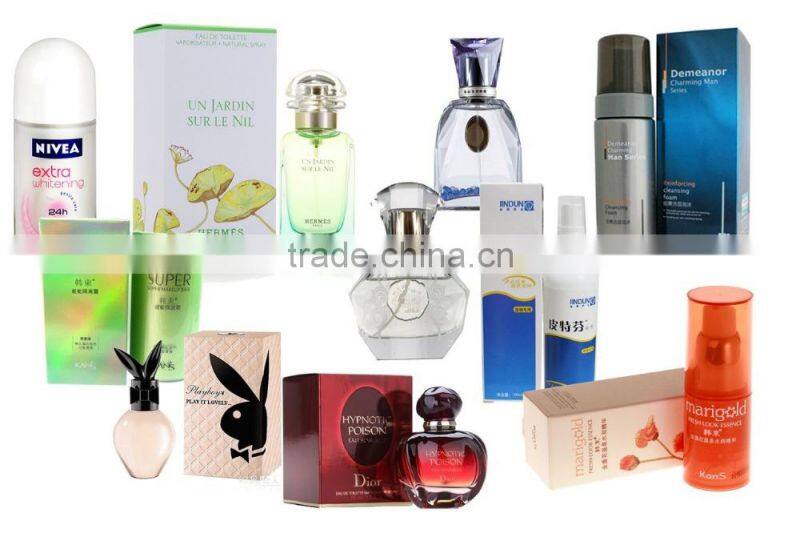

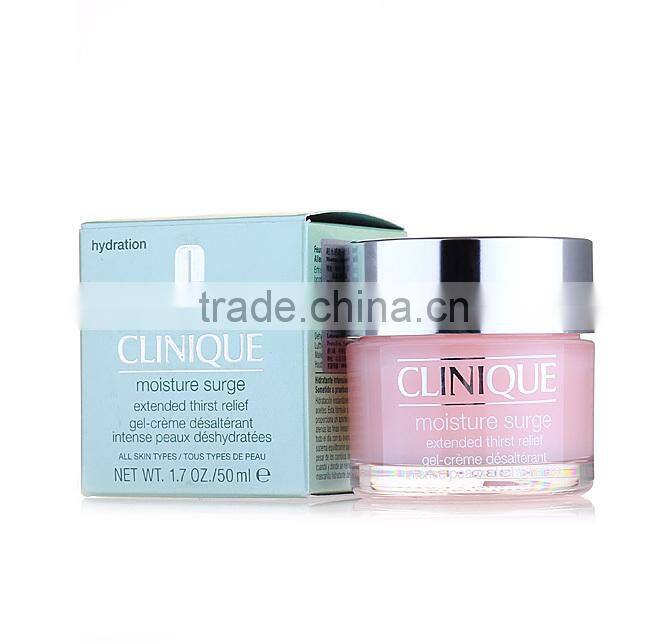

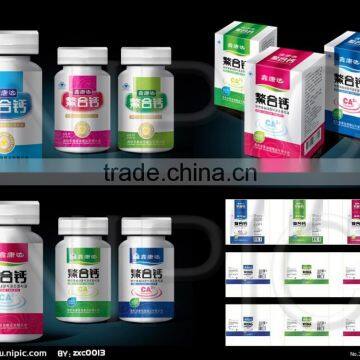

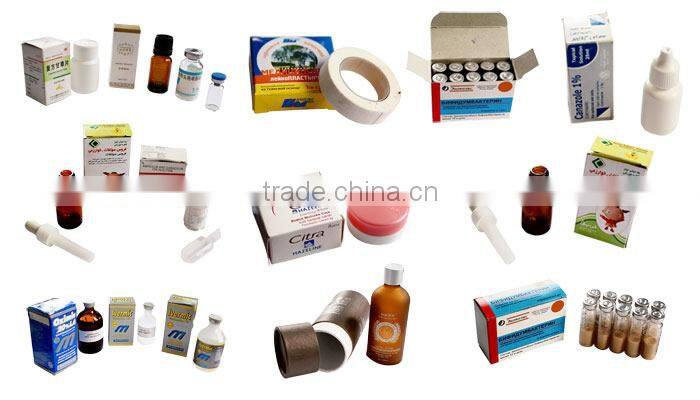

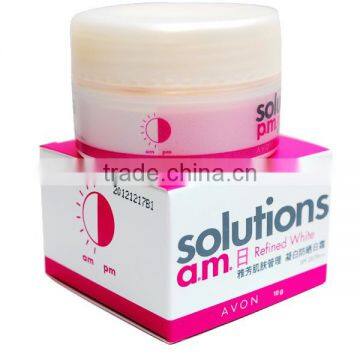

Samples
Certifications
