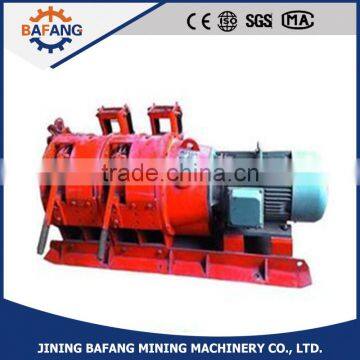

Factory price 2JP series 5 ton electric mine scraper winch
JP series rake mine winch is mainly used for underground metal mines and other mining or open ore handling and filling operations.
It is mainly used for horizontal scraper, cannot serve as lifting equipment. Drivers can beside the winch manipulation with the hand, also can use button from the winch several meters to tens of meters in the distance.
Technical parameter
Model | 2JP-7.5 | 2JP-15 | 2JP-30 |
Volume | 0.1m3 | 0.25m3 | 0.4m3 |
Tension force | 8kn | 14kn | 28kn |
Speed | 1.0m/s | 1.1m/s | 1.2m/s |
Cable diameter | 9.3mm | 12.5mm | 15.5mm |
Capacity of drum | 45m | 80m | 90m |
Motor power | 7.5kw | 15kw | 30kw |
Rotate speed | 1440m/s | 1460m/s | 1470m/s |
Dimension | 1210*565*490 | 1525*660*620 | 1685*380*735 |
Weight | 390kg | 505kg | 665kg |
Product pictures
