High Speed Electric Mining Scraper Winch With Electric Trolley
- Qingdao
- T/T Credit Card
You May Like
-
JH Series Mine Mining Hoist Vehicle Electric Prop Pulling Winch
-
JH Portable Prop-pulling Winch Manufacturer Hoist Winch
-
Mining Lifting Equipment JD Series Mining Dispatch Winch Made in China
-
Most Competitive JD Series Mining Swapping Dispatch Winch Factory Supplier
-
Rope Capacity Mine Shaft Sinking Winch From China Bafang
-
Electric 25T Mining Shaft Sinking Winch With CE Certification
Product Details
| Place of Origin | Shandong, China | Brand Name | Bafang | |
| Model Number | JP | Power Source | Electric | |
| Application | Cranes | Capacity | 8~28KN |
Product Description
High Speed Electric Mining Scraper Winch With Electric Trolley
JP series rake mine winch is mainly used for underground metal mines and other mining or open ore handling and filling operations.
It is mainly used for horizontal scraper, cannot serve as lifting equipment. Drivers can beside the winch manipulation with the hand, also can use button from the winch several meters to tens of meters in the distance.
Technical parameter
Model | 2JP-7.5 | 2JP-15 | 2JP-30 |
Volume | 0.1m3 | 0.25m3 | 0.4m3 |
Tension force | 8kn | 14kn | 28kn |
Speed | 1.0m/s | 1.1m/s | 1.2m/s |
Cable diameter | 9.3mm | 12.5mm | 15.5mm |
Capacity of drum | 45m | 80m | 90m |
Motor power | 7.5kw | 15kw | 30kw |
Rotate speed | 1440m/s | 1460m/s | 1470m/s |
Dimension | 1210*565*490 | 1525*660*620 | 1685*380*735 |
Weight | 390kg | 505kg | 665kg |

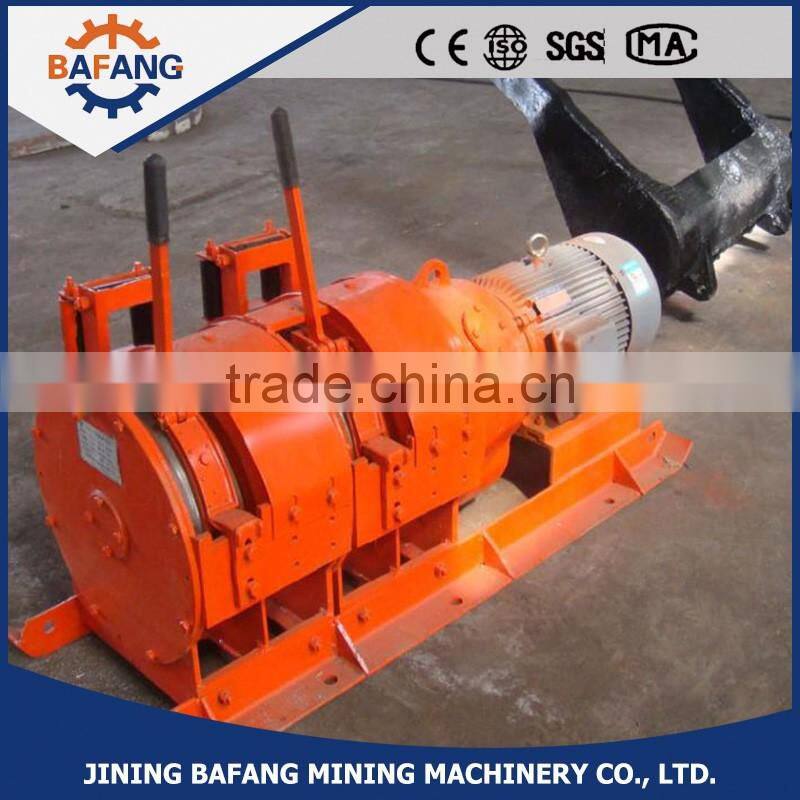

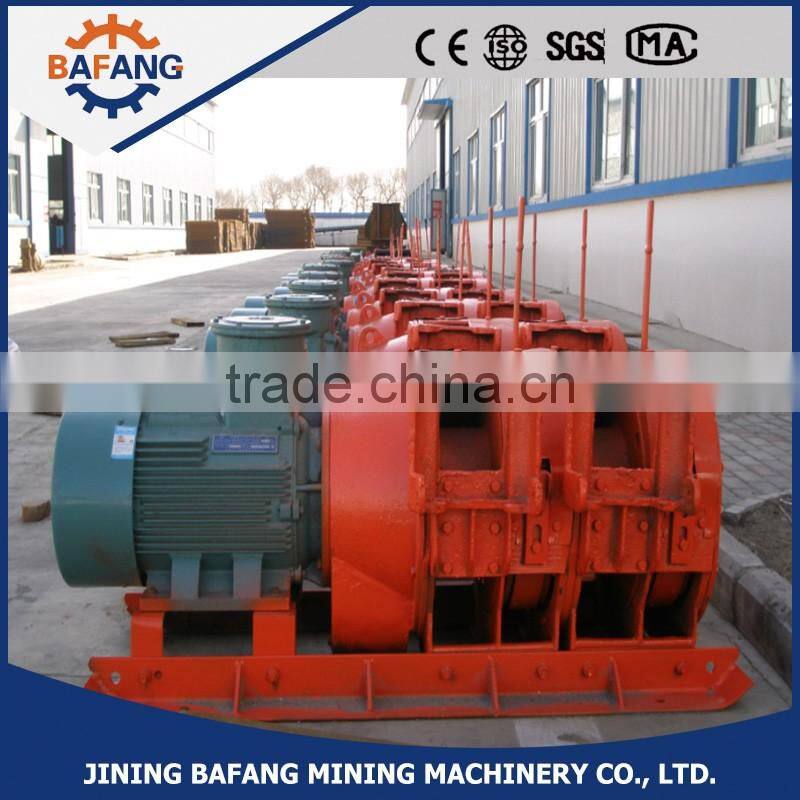

Product pictures
