Mining lifting equipment JD series Mining Dispatch Winch made in China
JD dispatching winch is mainly used in coal mine and other mines in tilting Angle is less than 30 degrees haulage roadway of harvesters and other auxiliary handling work, also can be used in the working face and loading on tunneling faces scheduling marshalling harvesters.
JD series of flameproof for underground or ground load scheduling marshalling harvesters and haulage roadway harvesters and other auxiliary handling in the middle. JD series hoist adopts planetary gear transmission, winch has a compact structure, good rigidity, high efficiency, easy installation and moving, smooth starting, flexible operation, reliable braking, low noise characteristics.
Technical parameter
Model | JD-1 | JD-2.5 | JD-4 |
Traction(KN) | 10 | 16 | 25 |
Rope speed(m/s) | 0.78 | 1.4 | 1.44 |
Rope capacity(m) | 400 | 400 | 650 |
Rope diameter(mm) | 12 | 16 | 20 |
Electric power(kw) | 11.4 | 25 | 40 |
Dimension(mm) | 1100*765*730 | 1350*1140*1190 | 1900*2350*1370 |
Weight(kg) | 550 | 2800 | 3600 |

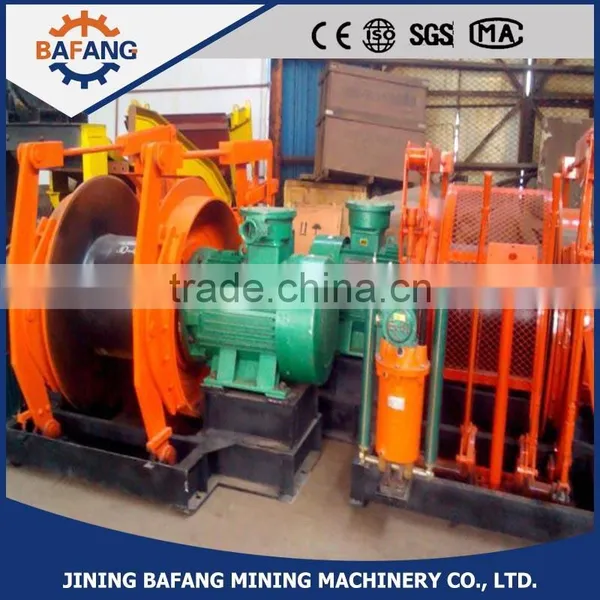

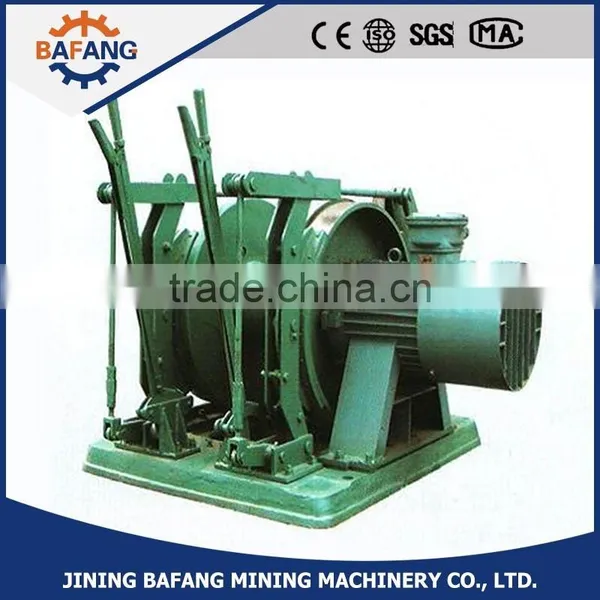

Product pictures
