JH Portable Prop-pulling Winch Manufacturer Hoist Winch
- Qingdao
- T/T Credit Card
You May Like
-
Mining Lifting Equipment JD Series Mining Dispatch Winch Made in China
-
Most Competitive JD Series Mining Swapping Dispatch Winch Factory Supplier
-
Rope Capacity Mine Shaft Sinking Winch From China Bafang
-
Electric 25T Mining Shaft Sinking Winch With CE Certification
-
Two-speed Underground Mining Prop-pulling Draw Hoist Winch
-
JH Series Portable Lifting Hoist Cable Prop Pulling Winch
Product Details
| Place of Origin | Shandong, China | Brand Name | Bafang | |
| Model Number | JH | Power Source | Electric | |
| Application | Auto | Capacity | 50~300KN |
Product Description
JH portable prop-pulling winch manufacturer hoist winch
Prop-pulling hoist also called slow winch, used for the coal mine coal mining working face prop-pulling caving. Because of its low height and light in weight, especially suitable for thin coal seam and steep coal seam mining face, the mining face and a variety of recycled into floor or by waste rock pressure of buried metal pillar. With the improvement of mechanized degree, it is increasingly widely used in mechanization mining face, the installation of various equipment and spare parts, recycling traction.
Technical parameter
Model | JH-5 | JH-8 | JH-14 | JH-20 | JH-30 |
Traction(kn) | 50 | 80 | 140 | 200 | 300 |
Rope speed(m/s) | 0.17 | 0.09 | 0.094 | 0.1 | 0.13 |
Rope diameter(mm) | 16 | 17 | 22 | 26 | 31 |
Rope capacity(m) | 80 | 100 | 130 | 170 | 220 |
Electric power(kw) | 7.5 | 11 | 18.5 | 22 | 45 |
Dimension(mm) | 1450*512*515 | 1600*530*670 | 2050*680*915 | 2200*968*864 | 3300*1075*1034 |
Weight(kg) | 610 | 650 | 1350 | 2500 | 4460 |

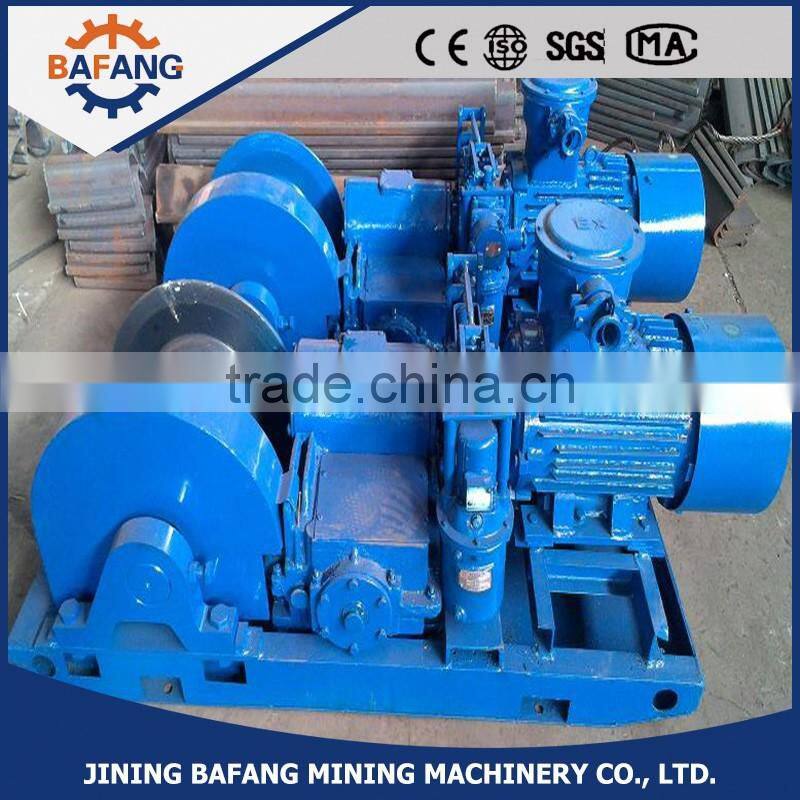

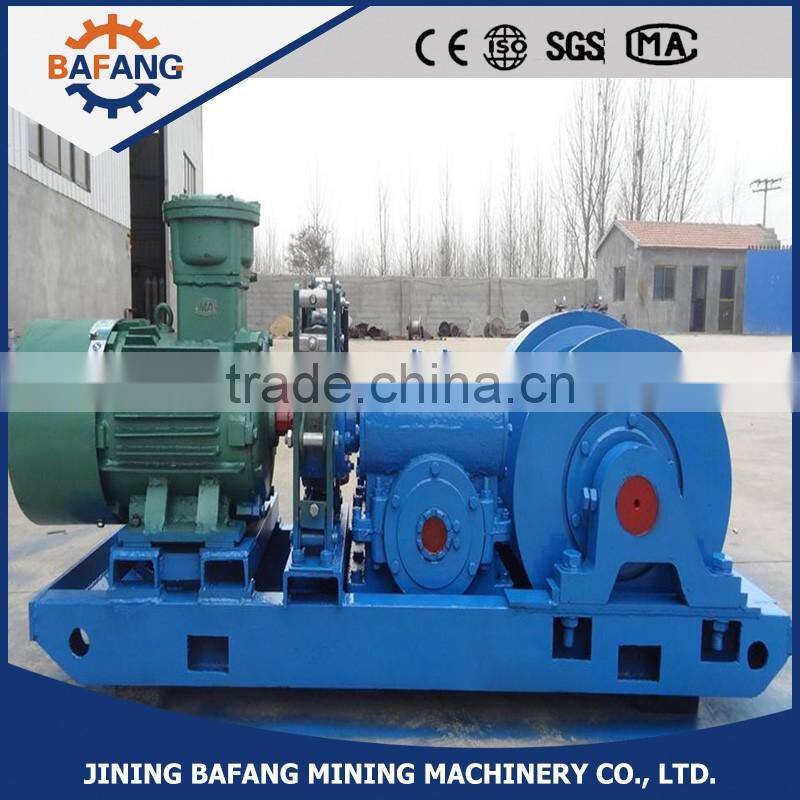

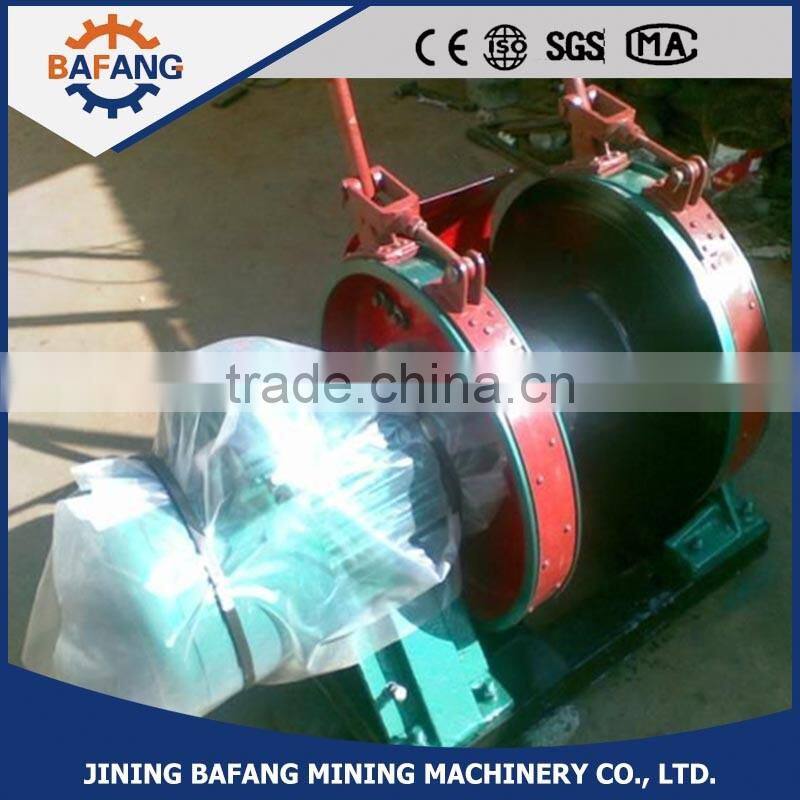

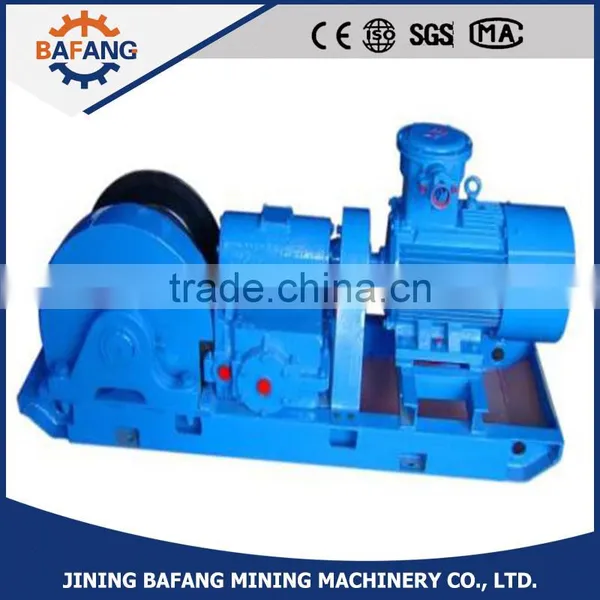

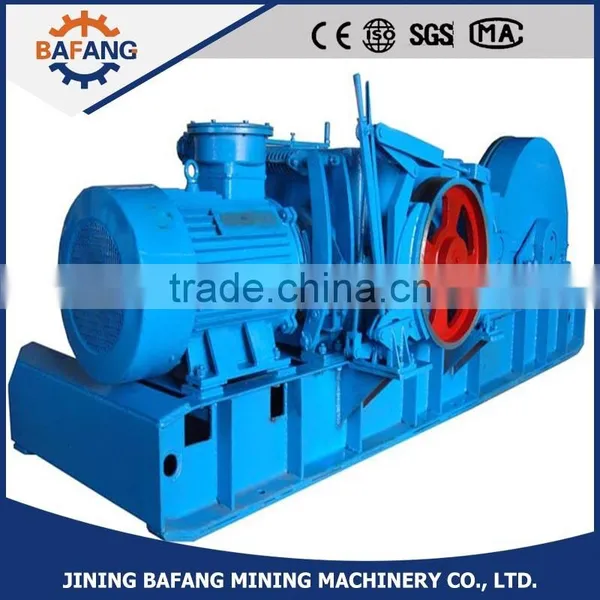

Product pictures
