Y24 Hand-hold Rock Drill

Y24 Hand-hold Rock Drill thumbnail-1
Y24 Hand-hold Rock Drill thumbnail-2
Y24 Hand-hold Rock Drill thumbnail-3
Y24 Hand-hold Rock Drill thumbnail-4
Y24 Hand-hold Rock Drill thumbnail-5
Y24 Hand-hold Rock Drill thumbnail-6
Y24 Hand-hold Rock Drill photo-1
Y24 Hand-hold Rock Drill photo-2
Y24 Hand-hold Rock Drill photo-3
Y24 Hand-hold Rock Drill photo-4
Y24 Hand-hold Rock Drill photo-5
Y24 Hand-hold Rock Drill photo-6
US$ 80 - 130 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
GM
Model Number:
Y24
Contact Supplier Request Quote Chat Now
Fuzhou Golden Moral Imp & Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name GM
Model Number Y24
Type Air Drill
Average Air Consumption 55L/s
Maximum Torque None(air Drill)
No-Load Speed 000rpm

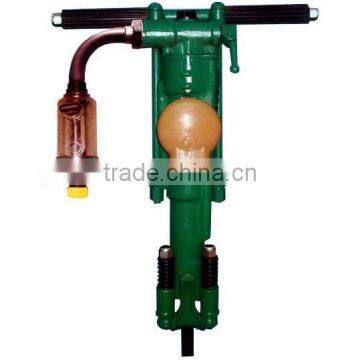

Y24 Hand-hold Rock Drill

 Y24 rock drill is widely used for dry drilling in the medium-hard and hard rock(f=8-18). It’s suitable for drilling works in surface mine, quarry for boulder blasting and other dry drilling working.

FY200B oil reservior is matched with this rock drill to ensure the fine lubrication.

Weight                                                           ≈24kg

Length                                                            604mm

Cylinder dia.                                                          70mm

Piston stroke                                                          70mm

Work pressure                                                  0.4~0.63MPa

Impact frequency*                                                     ≥27HZ

Air consumption*                                                     ≤55L/s

Air pipe inner dia.                                                     19mm

Shank head dia                                                     34~42mm

Shank dimensions(hex×length)at0.4Mpa                            22×108±1mm

FY200B oil reservior:

Capacity                                                             200ml

Y24 Hand-hold Rock DrillY24 Hand-hold Rock DrillY24 Hand-hold Rock DrillY24 Hand-hold Rock Drill
