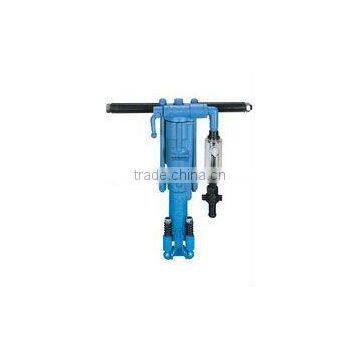

Y19A Air Leg Rock Drill

Y19A Air Leg Rock Drill

Y19A rock drill is mainly used in samll quarries,small coal mines and limestone mines for drilling,blasting for constructing roads in mountain areas,also in the capital construction for water conservancy works.it is suitable for drilling works in large mines for boulder blasting and other projects as well. When it is matched with air- leg model FT100,it can perform both dry and wet drilling under various kinds of rocks,and it is evenmore flexible in drilling operation when matched with the small- size compressor of capacity of 1.5m3,the function will be better than others.

The flanged control vavle is adopted,so it has many advantages such as reasonable in structure,quick in starting ,light in weight ,fast drilling speed,lower air comsumption,smaller vibration,easier operation,lower trouble rate,long-life parts,good economic effect,ect.it is also equipped with a rubber damping handle,so is eary to operate and provide the operators with necessary working protection.

 Weight                                                        19kg

Outside dimensions(L×W×H)                         600×534×157mm

Cylinder dia                                                    65mm

Piston stroke                                                   54mm

Air pressure                                              0.4~0.5Mpa

Air pipe inner dia                                                 19mm

Water pipe inner dia                                             13mm

Shank dimension                                            22×108mm

When working pressure is         0.4Mpa                        0.5Mpa

Impact energy                    ≥28J                        ≥40 J

Impact frequency                  ≥28Hz                        ≥35 Hz

Idling speed                      ≥180 r/min                  ≥200 r/min

Air consumption                ≤37 L/s                      ≤43 L/s
