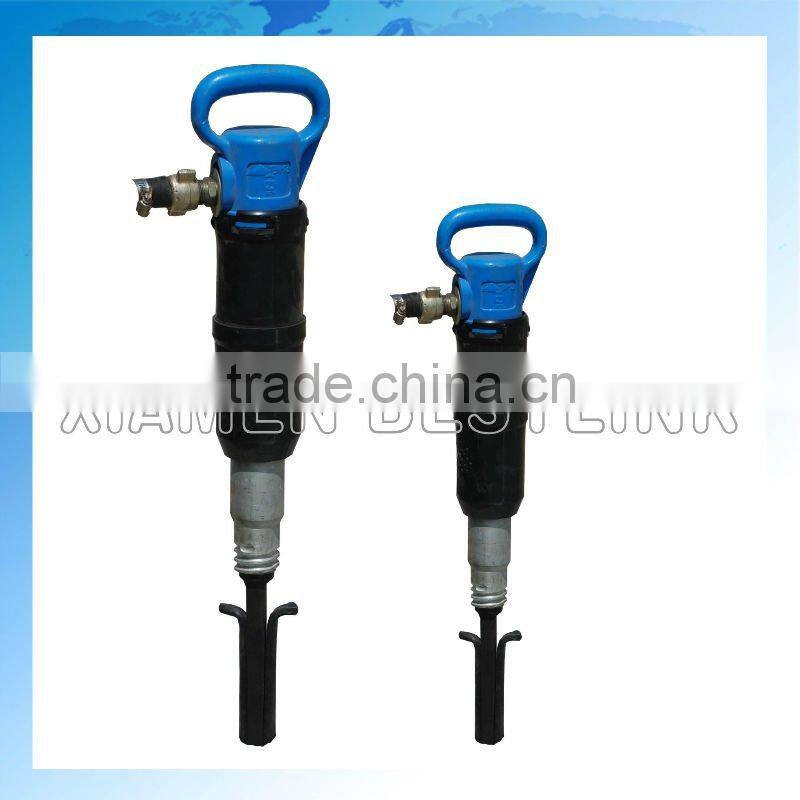

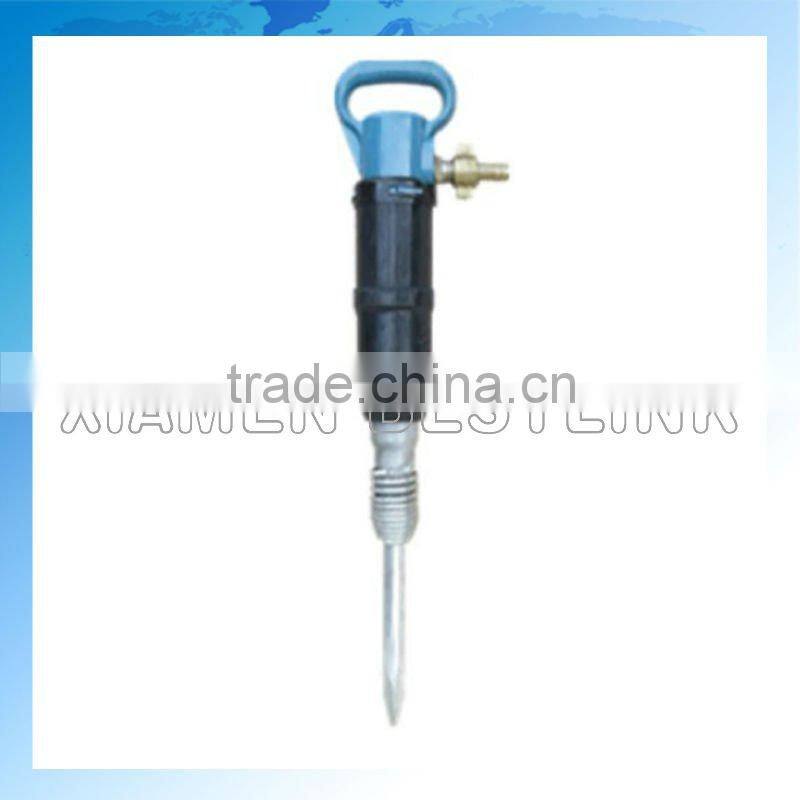

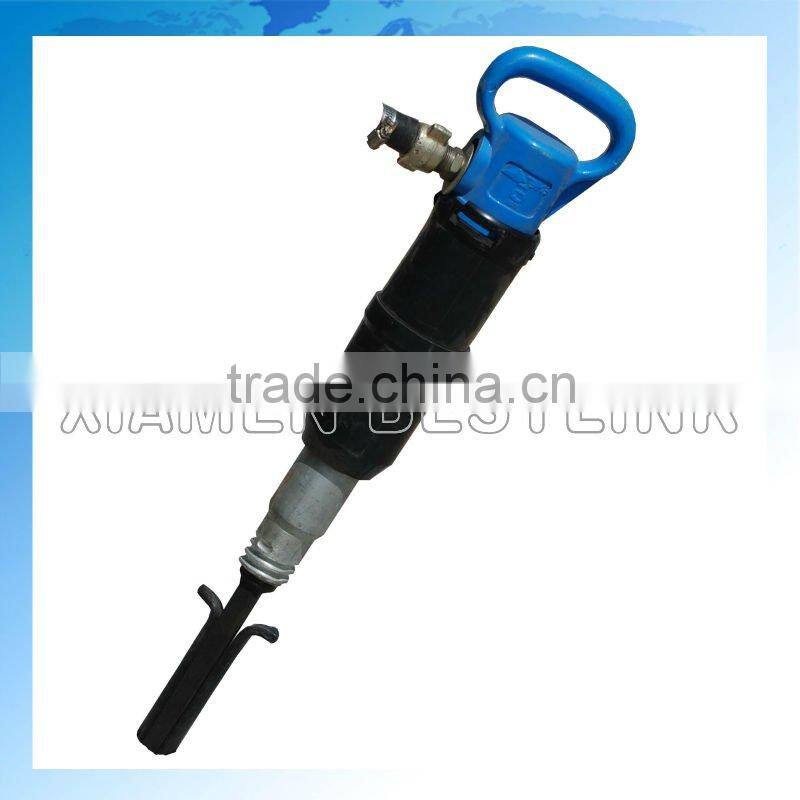

MO-2B Pneumatic Hammered Splitter

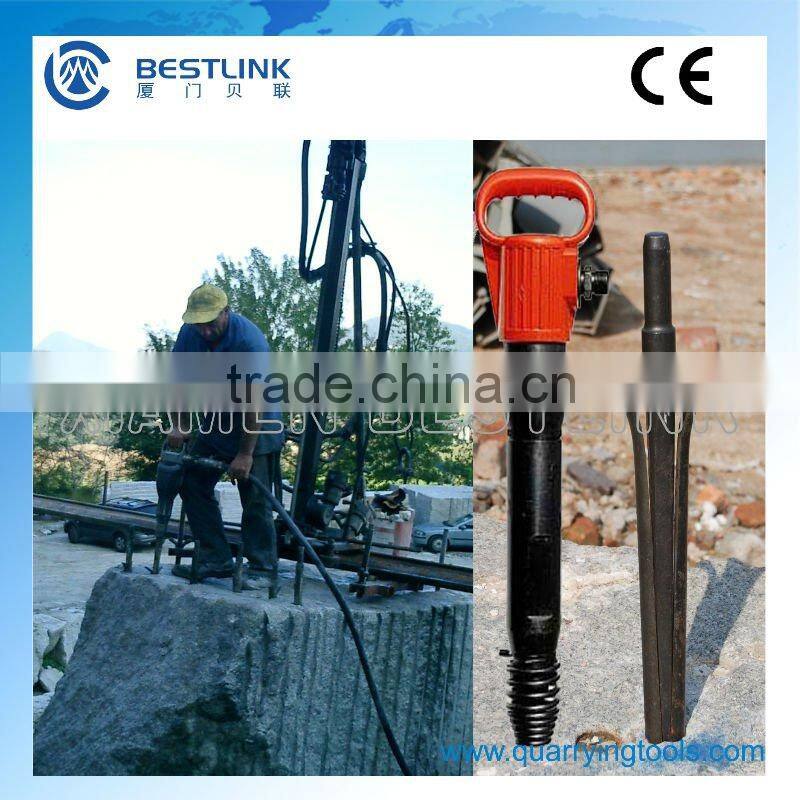

To use the light-weight pneumatic hammer and suitable Plug and feathers for splitting the
blocks, it will be more efficiency and less cost than the traditional hand splitter.
Model |
MO-2B |
MO-3B |
MO-4B |
Air pressure(Mpa |
0.3-0.6 |
0.3-0.6 |
0.3-0.6 |
|
Impact force (allowance:-2%)(J) |
39 |
44 |
55 |
Impact frequency(Hz) |
22.5 |
19.2 |
17 |
Working power(KW)≥ |
0.9 |
0.9 |
0.9 |
Air consumption(m3/min)≤ |
1.5 |
1.5 |
1.5 |
Weight(kg) |
8.5 |
9 |
9.6 |
Length(mm) |
540 |
540 |
540 |
Hose connection(mm) |
16 |
16 |
16 |
Overall dimension(mm) |
540*24*70 |
||
*Shank:Φ24×70mm
Note: 1. At working site, sir pressure 0.5Mpa, the noise would be less than 115db
2. Plug and feathers: normal length is 400mm, and hole from 32mm to 40mm, other
sizes of plug and feather are available upon your datailed requirement.
