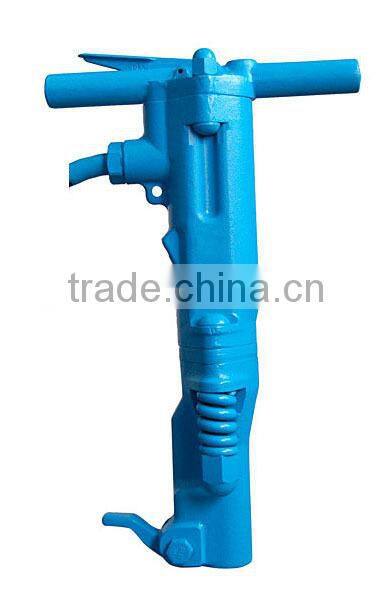

Jack Hammer - B67C
Jack Hammer Jack Hammer Jack Hammer Jack Hammer Jack Hammer Jack Hammer Jack Hammer
APPLICATIONS
To pave and break concrete foundation installing engenering to break other hard things.
INSTRUCTION
The paving breaker model B67C is tools with compressed air as its power .The compressed air is distributed alternatively through the distributing vaive into either end of the cylinder assembiy so that the hammer inside is made to carry on a reciprocal motion which impacts the shank of the steel chisel by the tappet drives into the concrete foundation and makes them split into huge pieces.
Part List
|
|
B87c |
B67c |
Overall length |
mm |
686 |
615 |
Total weight |
kg |
39 |
30 |
Cylinder D |
mm |
63.5 |
50.8 |
Working pressure |
Mpa |
0.63 |
0.63 |
Impact energy |
J |
100±10% |
37%±10% |
Impact power |
kw |
1.8±10% |
0.9±10% |
Blows frequency |
Hz |
18±5% |
24±5% |
Air consuption |
L/s |
55±15% |
42±15% |
Air pipe 1.D |
mm |
19 |
19 |
