GM HOT Vibrating FeederStably vibrating, reliable working;Adjustable exciting force, low noise;Light in weight,small in size;
GM HOT Vibrating FeederVibrating Feeder Vibrating Feeder Vibrating Feeder Vibrating Feeder Vibrating Feeder

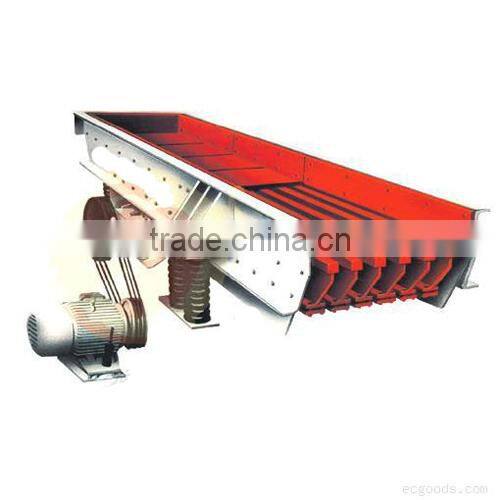

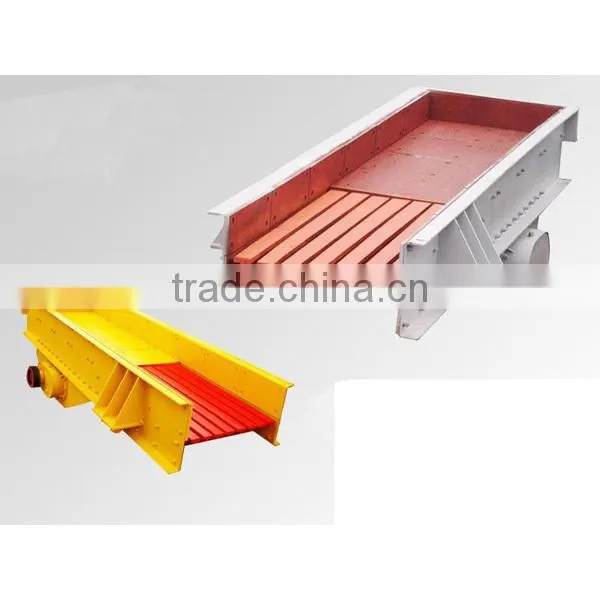

Vibrating Feeder Introduction:
In the producing process of a vibrating feeder,the vibrating feeder can feed the lumpish and granular materials uniformly and continuously from the storage bin to the feeding device. In the sand and stones production line, the vibrating feeder can continuously feed materials for the crushing machinery and can coarsely screen the materials in the crushing and screening equipment.It is widely used for in the metallurgy, coal mineral, mineral separation, building materials, chemical industry, grinding material and some other industries.
Features of Vibrating Feeder:
Stably vibrating, reliable working;
Adjustable exciting force, low noise;
Light in weight,small in size;
Low electricity consumption
Technical Parameters of Vibrating Feeder:
Model |
Hopper dimensions (mm) |
Max feeding size |
Output (t/h) |
Power(kw) |
Weight |
Overall dimensions(mm) |
GZD-800*3000 |
850*3000 |
400 |
80-120 |
1.5*2 |
3895 |
3100*1800*1600 |
GZD-960*3800 |
960*3800 |
500 |
120-210 |
2.2*2 |
3980 |
3850*1950*1630 |
GZD-1100*4200 |
1100*4200 |
580 |
200-430 |
3.7*2 |
5570 |
4400*2050*1660 |
GZD-1100*4900 |
1100*4900 |
580 |
280-500 |
5.5*2 |
6520 |
5200*2050*1700 |
GZD-1300*5200 |
1300*4900 |
650 |
450-600 |
7.5*2 |
8200 |
5200*2350*1750 |
