GM Double Dippers Diaphragm Jig

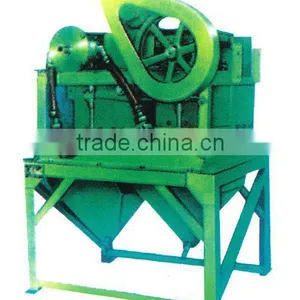

GM Double Dippers Diaphragm Jig thumbnail-1

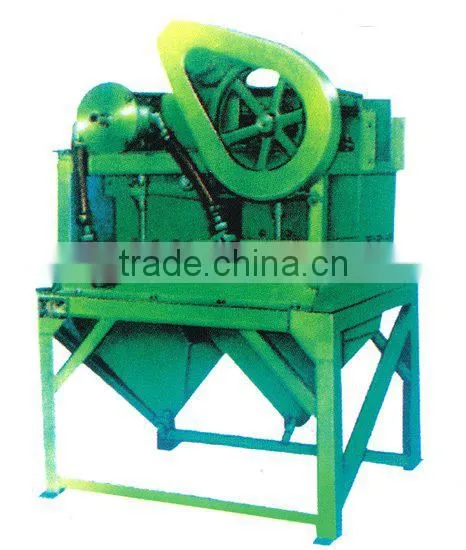

GM Double Dippers Diaphragm Jig photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
GM
Contact Supplier Request Quote Chat Now
Fuzhou Golden Moral Imp & Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Fujian, China
Brand Name GM
Certification CE

Specifications

GM double dippers Diaphragm Jig
1.Good separation result
2.Convenient maintenance
3. High quality

gm double dippers Diaphragm Jig :

Diaphragm Jig Diaphragm Jig Diaphragm Jig Diaphragm Jig Diaphragm Jig Diaphragm Jig Diaphragm Jig

Rectangle compartment side way action type jig has two types. One is left compartment side way jig, another is right compartment side way jig. The jig has fixed screen. It’s available in separating metallic ores, such as tungsten and gold placer deposits as well as beneficiated tin ore, which not only can be separated fine materials, but coarse also. The largest feed size is 6-8mm,but it can be 12mm in few cases.

LTS300*450 rectangle compartment size way action type jig is mainly composed of jig box, drive device, water distribution, diaphragm and bibcock. There are two jig buckets with different sizes and each diaphragm is divided into jig area and diaphragm area by clapboard. The rubber diaphragm pumping to make medium (water) moving is the jigging course. The triangle belt drives big belt pulley by electromotor so connecting.



Model

Jig Chamber No.

Jig Area
(m²)

Feeding size
(mm)

Production capacity
(T/h)

Stroke
(mm)

Stroke per minute
(r/min)

Hutch water
(t/h)

Water pressure
(kilo/cm2))

Engine

weight
(kg)

Model

Power
(kw)

100×150

1

0.015

-3

0.018-0.6

-

420

-

1-1.5

Y80L-4

0.55

130

300×450

2

0.27

-12

3-6

0-26

322

2-4

1-1.5

Y90S-4

1.1

745

1000×1000

2

2

1-5

10-25

0-26

200-350

60-80

0.6-2

Y100L-6

1.5

1700

370×360

2

0.274

6

1-3

5-25

200-250

2-5

-

Y90S-4

1.1

240

670×920

2

1.44

4-8

7-10

18-24

240-300

-

-

-

-

-

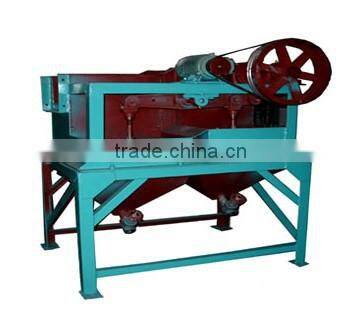

 GM double dippers Diaphragm Jig
