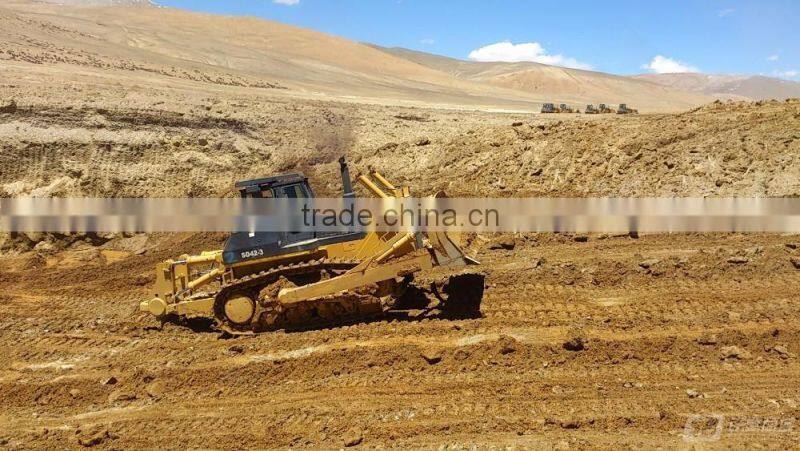

SD42-3 is one of the most powerful track-type bulldozers in China. Mainly used in large mine projects, the SD42-3 can be adapted to tough working conditions.
Main features:
1. Single-hand, electronic-control gear shift and steering systems;
2. Working device controlled by PPC proportional pilot valve;
3. K suspension drifting travel system;
4. Global intelligent service system;
5. Central pressure measurement, central lubrication, and automatic track tensioning;
| ITEM | UNIT | SD42-3 |
|---|---|---|
| L×W×H (Ripper not included) | mm | 9630×4315×3955 (Ripper included) |
| Operating weight (Ripper not included) | t | 53 (Ripper included) |
| Engine | - | Cummins KTA19-C525 |
| Rated power | kW/rpm | 310/2000 |
| Gradeability | ° | 30 |
| Blade type | - | Semi-U blade |
| Blade width | mm | 4315×1875 |
| Dozing capacity | m3 | 16 |
| Ma× drop below ground of blade | mm | 700 |
| Lift height of blade | mm | 1545 |
| Ripper type | - | Single ripper |
| Ripping depth of ripper | mm | 1400 |
| Lifting height of ripper | mm | 1130 |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 7 |
| Number of track shoes (each side) | - | 41 |
| Width of track shoe | mm | 610 |
| Track gauge | mm | 2260 |
| Ground length and ground pressure | mm/MPa | 3560-0.123 |
| Pitch | mm | 260.35 |
| Forward speed | km/h | 0–3.7 |
| 0–6.8 | ||
| 0–12.2 | ||
| Reverse speed |
km/h |
0–4.4 |
| 0–8.2 | ||
| 0–14.8 |
About Payment item:
T/T 30% in advance, the balance should be paid before shipment.
Or Letter of Credit at sight.
About after-sale service:
*We supply 1500 working hours or 12 months warranty since the bill of lading date, whichever comes first.
*During the warranty period, we guarantee to provide technical support and
spare parts (caused by quality problem) freely, but the transportation cost shall be borne by the buyer.
Shandong Senxin Construction Machinery Group Company is the top professional supplier of the Chinese construction machinery, located in the famous equipment production base city Linyi. Since our company was founded, based on the advantage of SDLG which is the No.1 wheel loader manufacturer in china, we continually introduce top Chinese construction machinery enterprises into world markets, such as XCMG, SHANTUI, LIUGONG, XGMA, LGMG, CHANGLIN ,MORE BRAND HYDRAULIC PUMP PARTSetc.
As one-stop professional service supplier, SENXIN is committed to offer high quality, reliable products and service on time, on delivery and on budget, to keep your project running smoothly. Since year 2006, our well-coordinated and expertly managed operation system and professional team make us turn orders into final products and delivery them to 30 countries and regions globally.
We not only make more international customers know and approbate our products, but also gradually build up friendship with construction machinery customers all over the world.
Add: Linyi City Shandogn Province,China
Tel:86-539-8180952 Fax:86-539-8180951
skype:senxmoore
whatsapp: 0086 15020397593
email : senxmoore @163.com
----------HAND IN SENXIN, ONE STEP AHEAD----------
Thank you for visiting our products & Looking forward to hearing from you!
