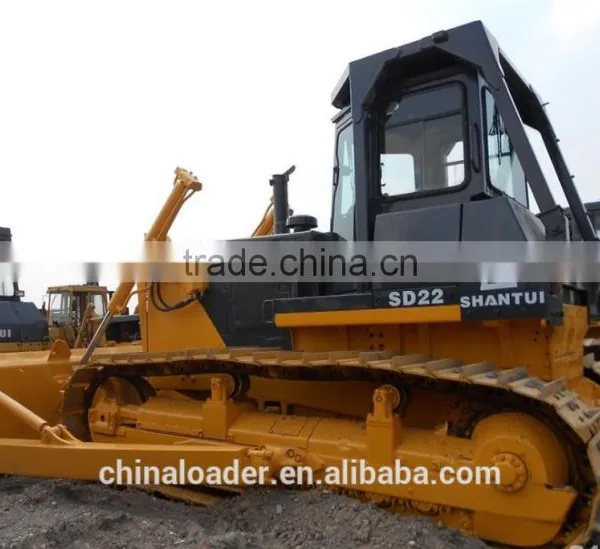

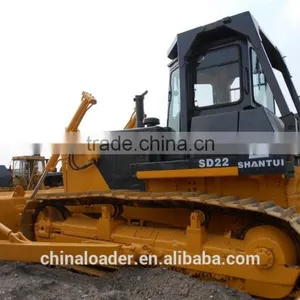

The SD22 bulldozer is the new generation of the TY220. It's equipped with a hexahedron damping cab, which features a beautiful design, wide visibility, and comfortable operation, as well as a highly efficient charged engine, which has excellent power, reliability and a long service life. It is also equipped with an improved hydraulic drive system with hydraulic control technology, front-extending anti-rolling frame and an advanced structure, providing reliable quality and convenient and flexible operation. The SD22 uses Shantui's patented central lubrication technology, central pressure measurement and automatic track tensioning, as well as a GPS satellite positioning system. With options such as straight tilt, angle, U type and semi-U type blades, single/triple shank rippers and a mechanical winch, the SD22 has various capabilities allowing it to adapt to and work in a wide range of earth moving projects.
| ITEM | UNIT | SD22 |
|---|---|---|
| L×W×H (Ripper not included) | mm | 5750×3725×3395 |
| Operating weight (Ripper not included) | t | 23.4 |
| Engine | - | Cummins NT855-C280S10 |
| Rated power | kW/rpm | 162/1800 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt blade U-blade Semi-U blade Angle blade |
| Blade width | mm | Straight tilt blade 3725×1315 U blade 3800×1343 Semi-U blade 3725×1374 Angle blade 4365×1055 |
| Dozing capacity | m3 | Straight tilt blade 6.4 U blade 7.5 Semi-U blade 7.0 Angle blade 4.7 |
| Ma× drop below ground of blade | mm | 540 |
| Lift height of blade | mm | 1210 |
| Ripper type | Single ripper Three-shank ripper | |
| Ripping depth of ripper | mm | Single ripper 695 Three-shank ripper 666 |
| Lifting height of ripper | mm | Single ripper515 Three-shank ripper 555 |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 6 |
| Number of track shoes (each side) | - | 38 |
| Width of track shoe | mm | 560 |
| Track gauge | mm | 2000 |
| Ground length and ground pressure | mm/MPa | 2730-0.077 |
| Pitch | mm | 216 |
| Forward speed | km/h | 0–3.6 |
| 0–6.5 | ||
| 0–11.2 | ||
| Reverse speed | km/h | 0–4.3 |
| 0–7.7 | ||
| 0–13.2 |
SHANTUI BULLDOZER SD13/SD16/SD22/SD23/SD32/SD42 PARTS:
About Payment item:
T/T 30% in advance, the balance should be paid before shipment.
Or Letter of Credit at sight.
About after-sale service:
*We supply 1500 working hours or 12 months warranty since the bill of lading date, whichever comes first.
*During the warranty period, we guarantee to provide technical support and
spare parts (caused by quality problem) freely, but the transportation cost shall be borne by the buyer.
*Out of warranty period, we will provide the main component parts for 7 years, and the other parts for 5 years, all the cost shall be be borne by the buyer.
Shandong Senxin Group & Hydraulic Co., Ltd. is a professional manufacturer, has been engaging in producing a wide range of replacements parts for hydraulic pumps and motors for various heavy construction equipments and industry machinery .
We sincerely hope this brochure will be helpful for you to understand our scope of products and we will put top priority on the quality assurance to meet your needs at the right time with competitive price and prompt delivery.
